J102E-GMZF (2000)
Toyota Cami
Production
May 2000
-
Aug 2003
Engine
K3VE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0005- )

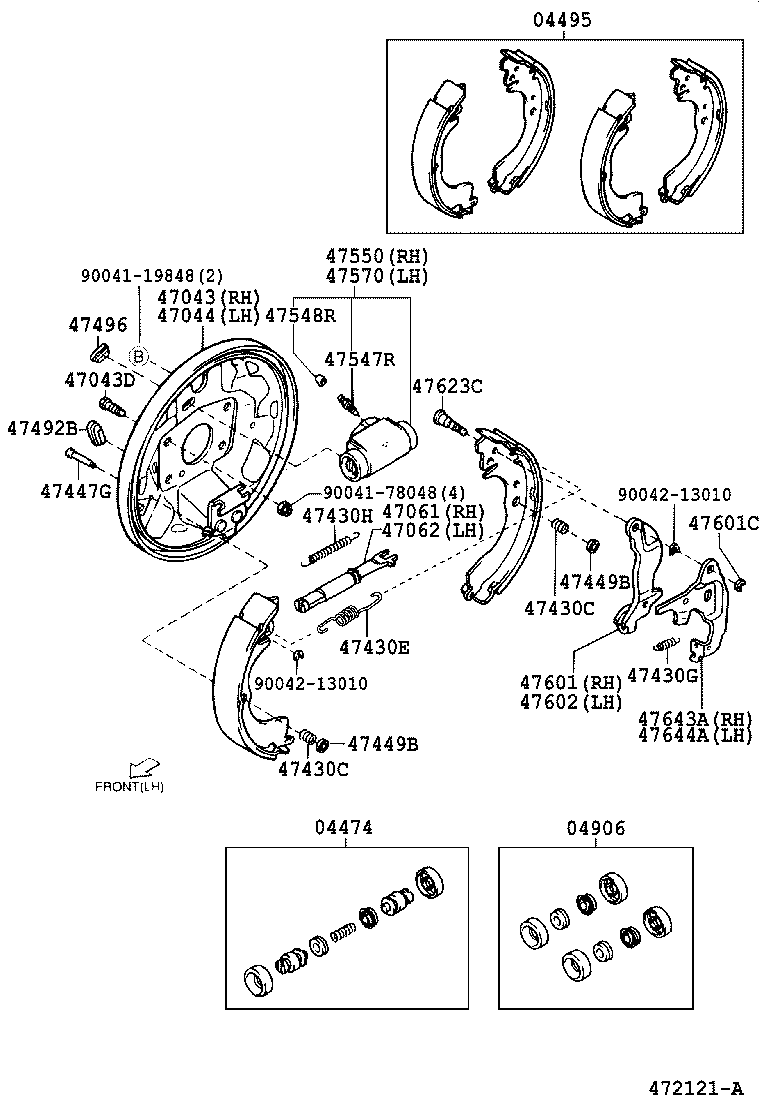

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-87402 |
J10#,122 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-87402 |
J102,122 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-87401 |
J10#,122 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-87405 |
J102,122 |
1 | ||
| 47043D - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 42184-87401 |
J10#,122 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-87405 |
J102,122 |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-87401 |
J10#,122 |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-87401 |
J10#,122 |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 47446-87401 |
J10#,122 |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 47446-87401 |
J10#,122 |
4 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90045-06243 |
J10#,122 右側 |
1 | ||
| 90045-06244 |
J10#,122 左側 |
1 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90045-06230 |
J10#,122 |
2 | ||
| 47430H - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90045-06251 |
J102,122 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-87401 |
J10#,122 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-87601 |
J10#,122 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-87601 |
J10#,122 |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-87601 |
J10#,122 |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-87401 |
J102,122 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 47548-87501 |
J102,122 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47570-87401 |
J102,122 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-87401 |
J10#,122 |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47611-87401 |
J10#,122 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90045-23013 |
J10#,122 外径=11,内径=5,厚さ=0.6 |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47612-87401 |
J10#,122 |
1 | ||
| 47623C - PIN, PARKING BRAKE LEVER | ||||
| 47623-87401 |
J10#,122 |
2 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-87401 |
J10#,122 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-87401 |
J10#,122 |
1 | ||
| Common parts | ||||
| 90041-19848 | ||||
| 90041-78048 | ||||
| 90042-13010 | ||||
