J102E-GMZF (2000)
Toyota Cami
Production
May 2000
-
Aug 2003
Engine
K3VE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

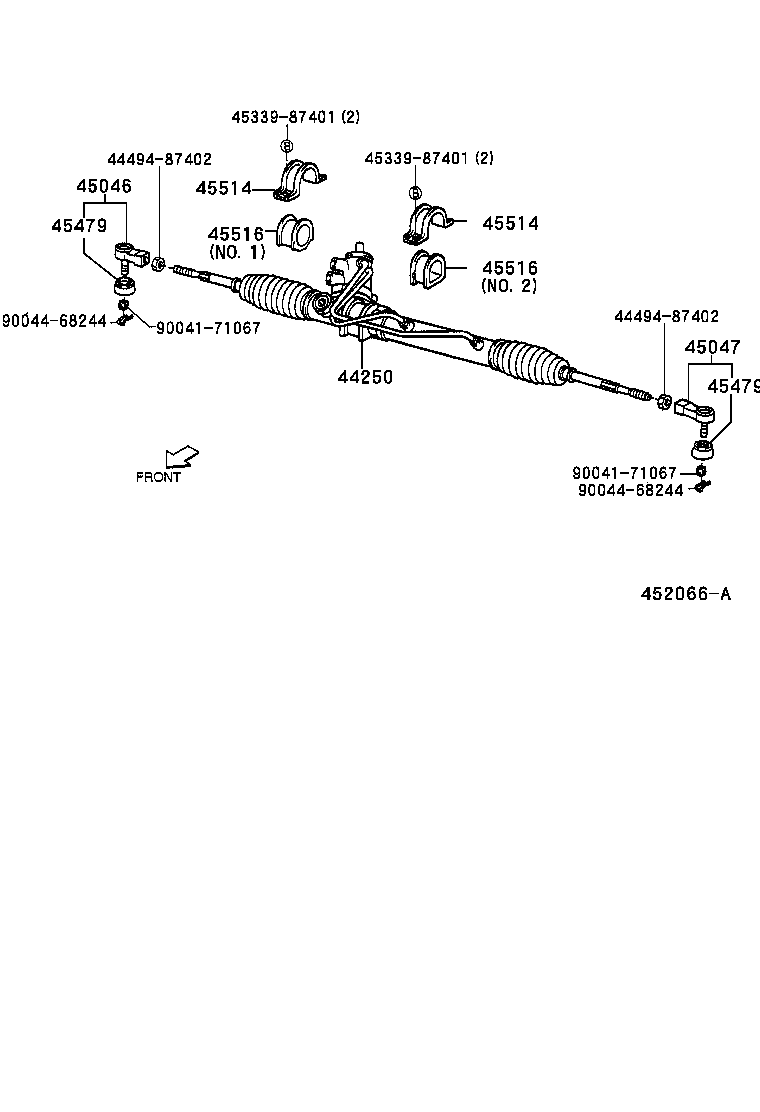

ILLUST NO. 1 OF 2(9905-0112)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44504-87404 |
J10#,122 |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-87401 |
J10#,122 |
1 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-87401 |
J10#,122 |
1 | ||
| 45479 - SEAL, STEERING LINK JOINT DUST | ||||
| 45479-87508 |
J10#,122 |
2 | ||
| 45479 - SEAL, STEERING LINK JOINT DUST | ||||
| 45479-87508 |
J10#,122 |
2 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-87401 |
J10#,122 |
2 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-87401 |
J10#,122 |
2 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-87402 |
J10#,122 NO.2 |
1 | ||
| 45516-87401 |
J10#,122 NO.1 |
1 | ||
| 45516-87401 |
J102,122 |
2 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-87402 |
J10#,122 NO.2 |
1 | ||
| 45516-87401 |
J10#,122 NO.1 |
1 | ||
| 45516-87401 |
J102,122 |
2 | ||
| Common parts | ||||
| 44494-87402 | ||||
| 45339-87401 | ||||
| 90041-71067 | ||||
| 90044-68244 | ||||

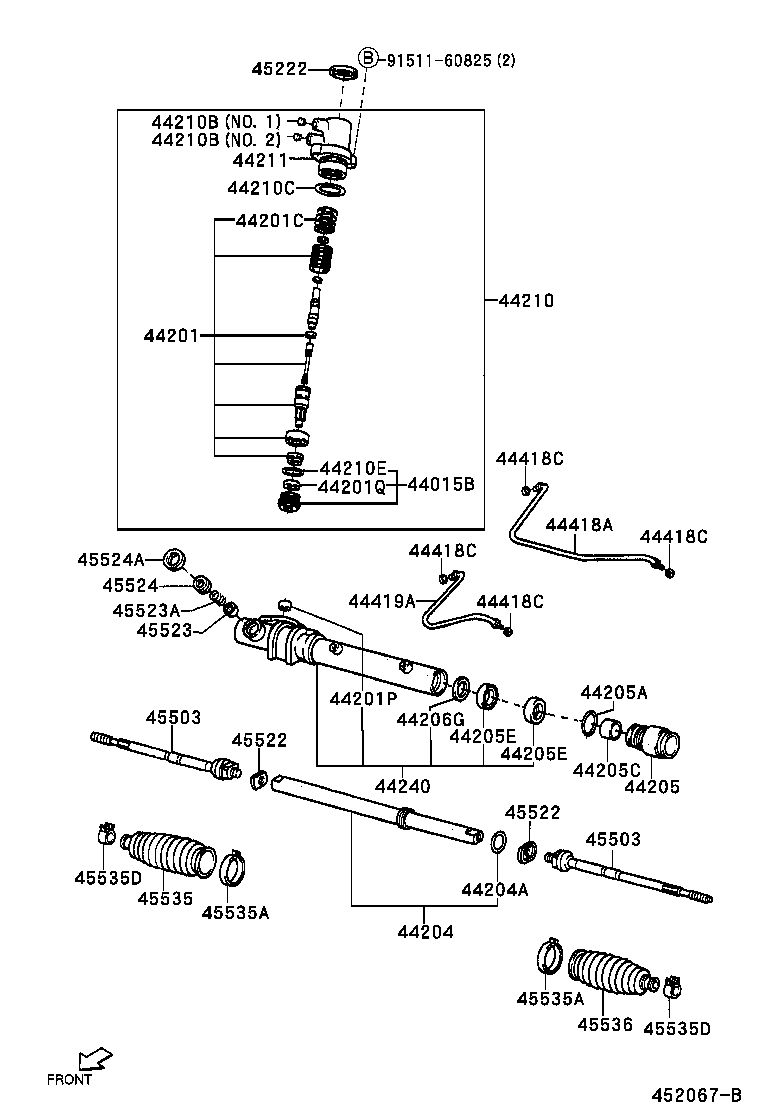

ILLUST NO. 2 OF 2(9905-0112)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 44015-87401 |
J10#,122 |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-87403 |
J10#,122 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 44486-87403 |
J10#,122 |
4 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 44483-87401 |
J10#,122 |
1 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 44485-87402 |
J10#,122 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-87401 |
J10#,122 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 44485-87401 |
J10#,122 |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44275-87402 |
J10#,122 |
1 | ||
| 44205A - RING, O(FOR CYLINDER END STOPPER) | ||||
| 44485-87406 |
J10#,122 |
1 | ||
| 44205C - BUSH SUB-ASSY, POWER STEERING RACK | ||||
| 44491-87404 |
J10#,122 |
1 | ||
| 44205E - SEAL, OIL(FOR POWER STEERING RACK BUSH) | ||||
| 44482-87401 |
J10#,122 |
2 | ||
| 44205E - SEAL, OIL(FOR POWER STEERING RACK BUSH) | ||||
| 44482-87401 |
J10#,122 |
2 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 44488-87401 |
J10#,122 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-87403 |
J10#,122 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 44492-87404 |
J10#,122 NO.2 |
1 | ||
| 44492-87401 |
J10#,122 NO.1 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 44492-87404 |
J10#,122 NO.2 |
1 | ||
| 44492-87401 |
J10#,122 NO.1 |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 44485-87405 |
J10#,122 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 44482-87402 |
J10#,122 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44022-87403 |
J10#,122 |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44203-87401 |
J10#,122 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-87401 |
J10#,122 |
1 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 44492-87402 |
J10#,122 |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 44492-87402 |
J10#,122 |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 44492-87402 |
J10#,122 |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 44492-87402 |
J10#,122 |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-87401 |
J10#,122 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-87401 |
J10#,122 |
1 | ||
| 45222-87402 |
J102,122 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-87401 |
J102,122 |
2 | ||
| 45460-87401 |
J10#,122 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-87401 |
J102,122 |
2 | ||
| 45460-87401 |
J10#,122 |
2 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 44491-87403 |
J10#,122 |
2 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 44491-87403 |
J10#,122 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-87403 |
J102,122 |
1 | ||
| 44208-87402 |
J10#,122 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 44495-87403 |
J10#,122 |
1 | ||
| 90045-01818 |
J102,122 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-87402 |
J102,122 |
1 | ||
| 45524-87401 |
J10#,122 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 44494-87401 |
J10#,122 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-87401 |
J10#,122 |
1 | ||
| 45535-97501 |
J102,122 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 45536-87205 |
J102,122 |
2 | ||
| 44493-87401 |
J10#,122 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 45536-87205 |
J102,122 |
2 | ||
| 44493-87401 |
J10#,122 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 44493-87402 |
J10#,122 |
2 | ||
| 45537-97201 |
J102,122 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 44493-87402 |
J10#,122 |
2 | ||
| 45537-97201 |
J102,122 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-97501 |
J102,122 |
1 | ||
| 45535-87401 |
J10#,122 |
1 | ||
| Common parts | ||||
| 91511-60825 | ||||

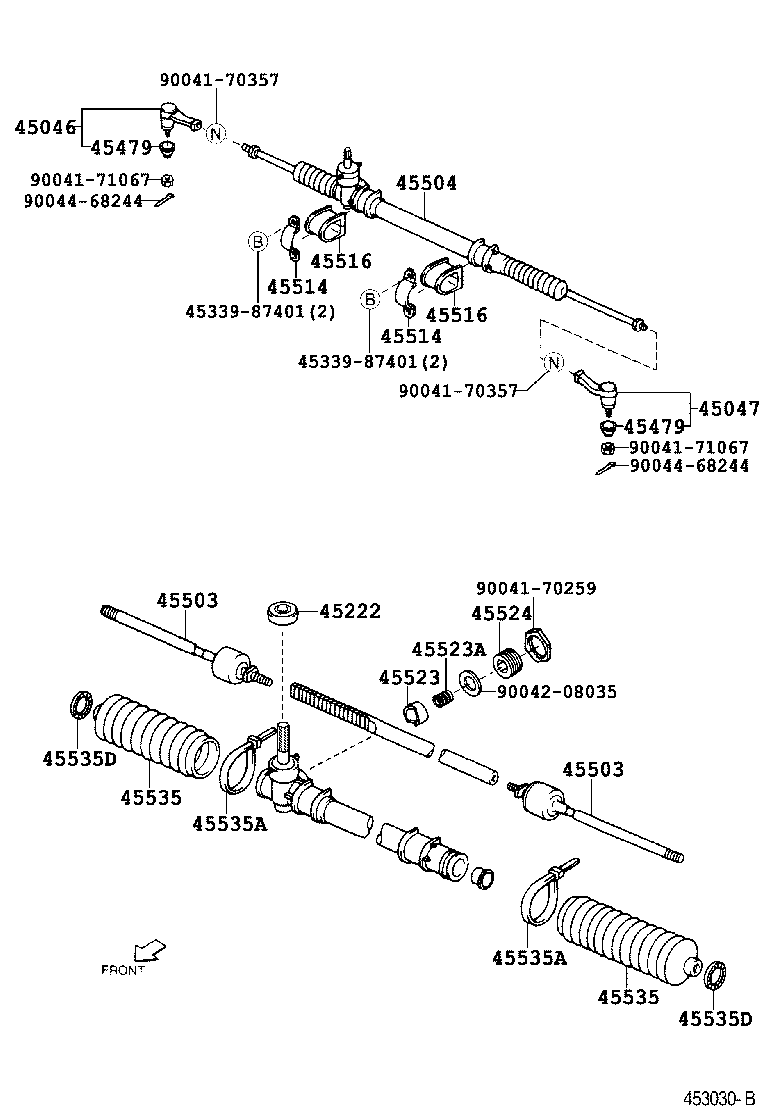

(0112- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-87401 |
J10#,122 |
1 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-87401 |
J10#,122 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-87401 |
J10#,122 |
1 | ||
| 45222-87402 |
J102,122 |
1 | ||
| 45479 - SEAL, STEERING LINK JOINT DUST | ||||
| 45479-87508 |
J10#,122 |
2 | ||
| 45479 - SEAL, STEERING LINK JOINT DUST | ||||
| 45479-87508 |
J10#,122 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-87401 |
J102,122 |
2 | ||
| 45460-87401 |
J10#,122 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-87401 |
J102,122 |
2 | ||
| 45460-87401 |
J10#,122 |
2 | ||
| 45504 - END SUB-ASSY, STEERING RACK, NO.2 | ||||
| 45504-87401 |
J102,122 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-87401 |
J10#,122 |
2 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-87401 |
J10#,122 |
2 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-87402 |
J10#,122 NO.2 |
1 | ||
| 45516-87401 |
J10#,122 NO.1 |
1 | ||
| 45516-87401 |
J102,122 |
2 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-87402 |
J10#,122 NO.2 |
1 | ||
| 45516-87401 |
J10#,122 NO.1 |
1 | ||
| 45516-87401 |
J102,122 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-87403 |
J102,122 |
1 | ||
| 44208-87402 |
J10#,122 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 44495-87403 |
J10#,122 |
1 | ||
| 90045-01818 |
J102,122 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-87402 |
J102,122 |
1 | ||
| 45524-87401 |
J10#,122 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-87401 |
J10#,122 |
1 | ||
| 45535-97501 |
J102,122 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-87401 |
J10#,122 |
1 | ||
| 45535-97501 |
J102,122 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 45536-87205 |
J102,122 |
2 | ||
| 44493-87401 |
J10#,122 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 45536-87205 |
J102,122 |
2 | ||
| 44493-87401 |
J10#,122 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 44493-87402 |
J10#,122 |
2 | ||
| 45537-97201 |
J102,122 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 44493-87402 |
J10#,122 |
2 | ||
| 45537-97201 |
J102,122 |
2 | ||
| Common parts | ||||
| 45339-87401 | ||||
| 90041-70259 | ||||
| 90041-70357 | ||||
| 90041-71067 | ||||
| 90042-08035 | ||||
| 90044-68244 | ||||
