J102E-GMZF (2000)
Toyota Cami
Production
May 2000
-
Aug 2003
Engine
K3VE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0005- )

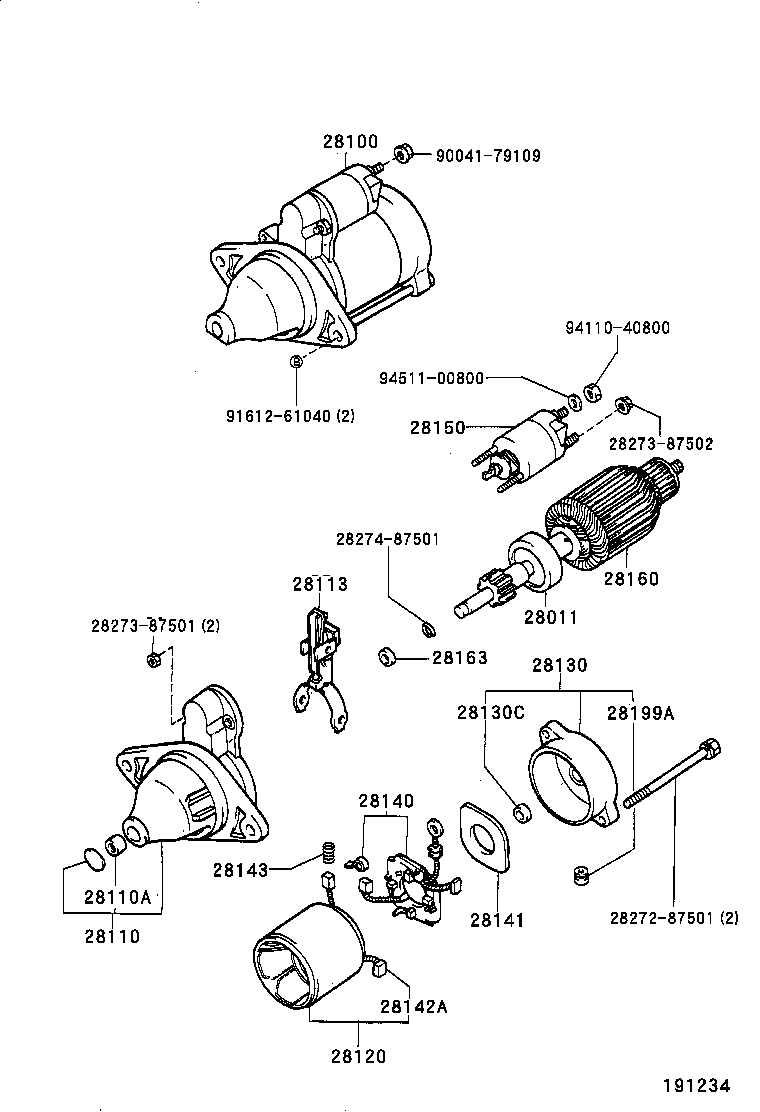

Click highlighted areas on diagram
12V 0.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28100 - STARTER ASSY | ||||
| 28100-97402 |
K3VE..J102,122 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-87216 |
K3VE..J102,122 12V 1.0KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-87208 |
K3VE,HCEJ..J10#,122 |
1 | ||
| Common parts | ||||
| 28272-87501 | ||||
| 28273-87501 | ||||
| 28273-87502 | ||||
| 28274-87501 | ||||
| 90041-79109 | ||||
| 91612-61040 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

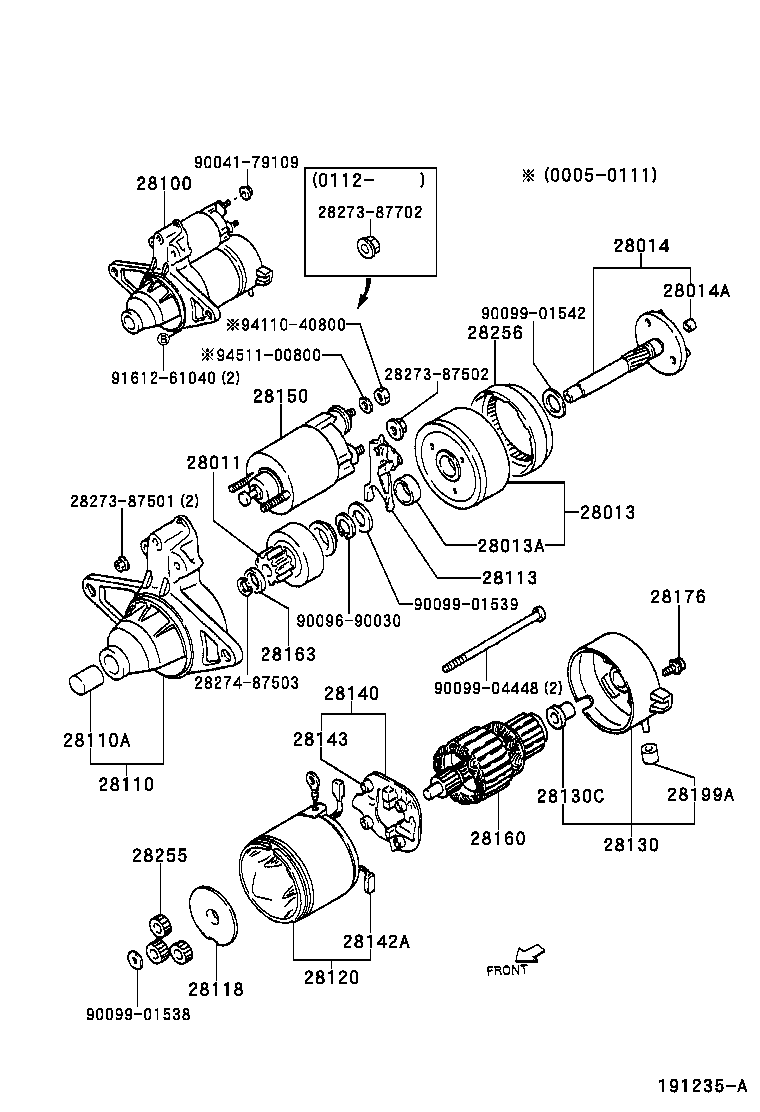

(0005- )
Click highlighted areas on diagram
12V 1.0KW(ｶﾝﾚｲﾁ ｼﾖｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28100 - STARTER ASSY | ||||
| 28100-97402 |
K3VE..J102,122 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-87216 |
K3VE..J102,122 12V 1.0KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-87208 |
K3VE,HCEJ..J10#,122 |
1 | ||
| Common parts | ||||
| 28273-87501 | ||||
| 28273-87502 | ||||
| 28273-87702 | ||||
| 28274-87503 | ||||
| 90041-79109 | ||||
| 90096-90030 | ||||
| 90099-01538 | ||||
| 90099-01539 | ||||
| 90099-01542 | ||||
| 90099-04448 | ||||
| 91612-61040 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
