J102E-GMZF (2000)

Toyota Cami

Production May 2000 - Aug 2003
Engine K3VE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )K3VE..EFI

Click highlighted areas on diagram

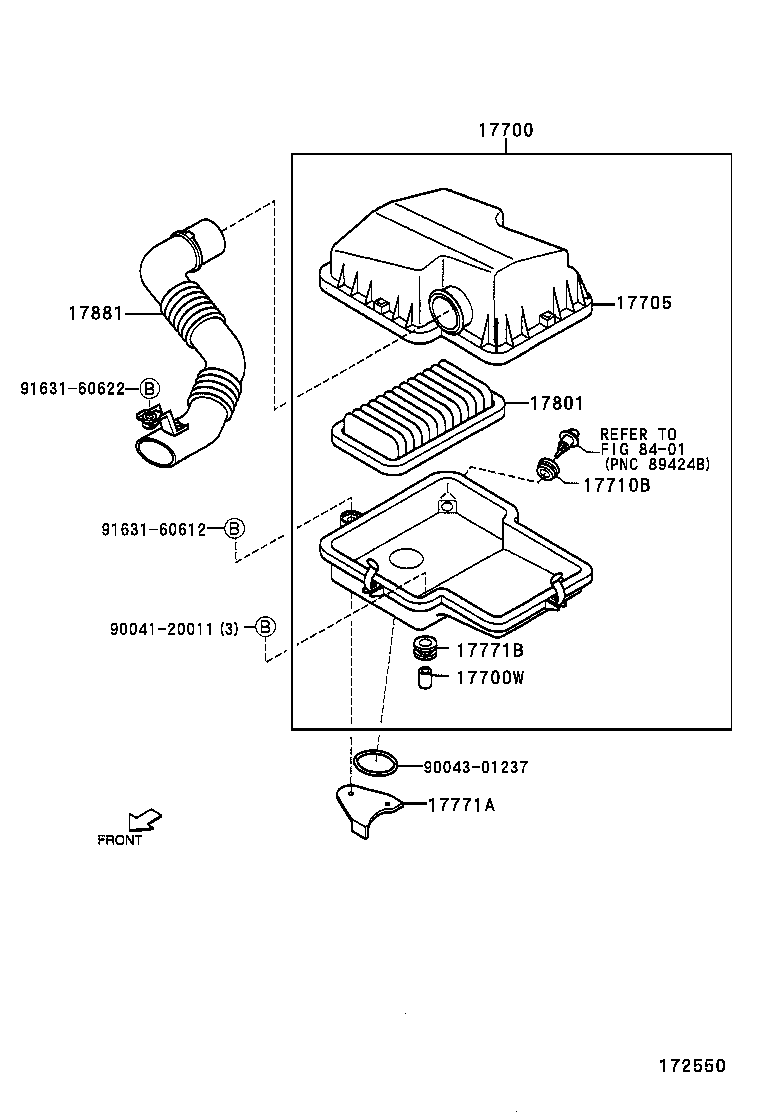

diagram 17700 17700W 17705 17710B 17771A 17771B 17801 17881 8401 9004120011 9004301237 9163160612 9163160622
Part # Description Qty Price
Common parts
90041-20011
90043-01237
91631-60612
91631-60622
Linked diagrams
8401
