J102E-GMZF (2000)
Toyota Cami
Production
May 2000
-
Aug 2003
Engine
K3VE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0005- )K3VE..EFI

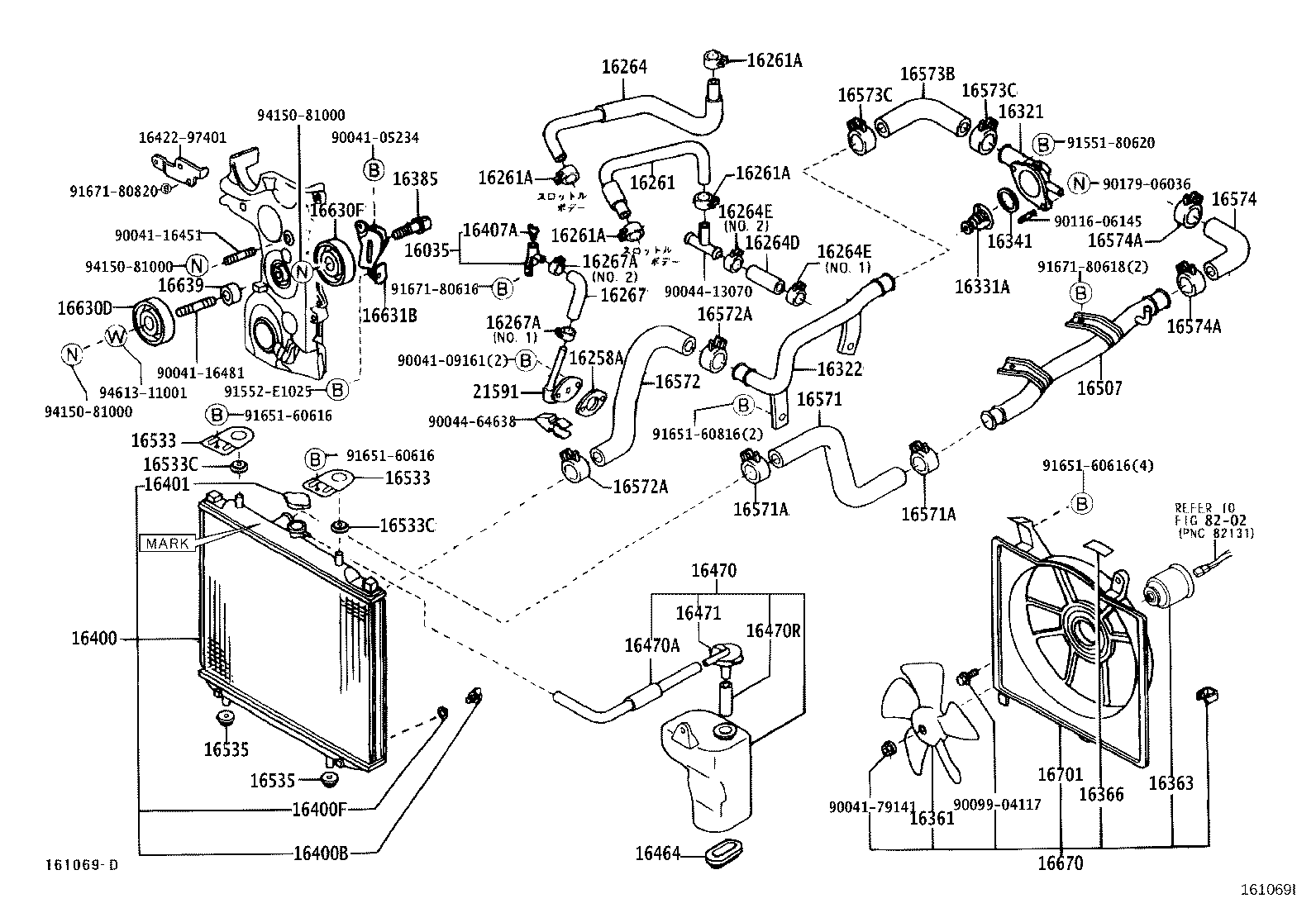

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-87412 |
K3VE..J102,122..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16185-87401 |
K3VE,HCEJ..J10#,122 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-87401 |
K3VE,HCEJ..J10#,122 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-87404 |
K3VE..J102,122 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-87404 |
K3VE..J102,122 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-87403 |
K3VE..J102,122 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-97201 |
K3VE..J102,122 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16582-87401 |
K3VE,HCEJ..J10#,122 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16582-87401 |
K3VE,HCEJ..J10#,122 |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80617 |
K3VE,HCEJ..J10#,122 |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80617 |
K3VE,HCEJ..J10#,122 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80582 |
K3VE,HCEJ..J10#,122 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80582 |
K3VE,HCEJ..J10#,122 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-87404 |
K3VE..J102,122 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90044-67330 |
K3VE,HCEJ..J10#,122 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90044-67330 |
K3VE,HCEJ..J10#,122 |
2 | ||
| Common parts | ||||
| 16422-97401 | ||||
| 90041-05234 | ||||
| 90041-09161 | ||||
| 90041-16451 | ||||
| 90041-16481 | ||||
| 90041-79141 | ||||
| 90044-13070 | ||||
| 90044-64638 | ||||
| 90099-04117 | ||||
| 90116-06145 | ||||
| 90179-06036 | ||||
| 91551-80620 | ||||
| 91552-E1025 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 91671-80616 | ||||
| 91671-80618 | ||||
| 91671-80820 | ||||
| 94150-81000 | ||||
| 94613-11001 | ||||
| Linked diagrams | ||||
| 8202 | ||||
