J102E-GMDF (2000)

Toyota Cami

Production May 2000 - Dec 2005
Engine K3VE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )

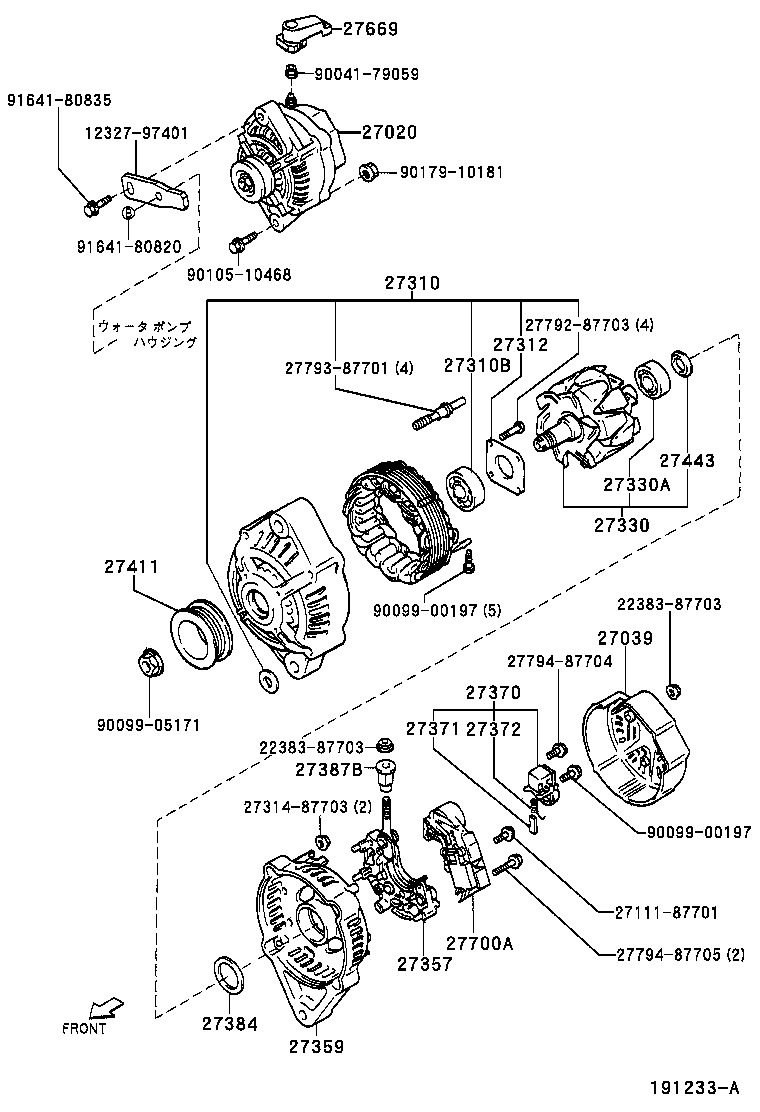

Click highlighted areas on diagram

diagram 1232797401 2238387703 2238387703 27020 27039 2711187701 27310 27310B 27312 2731487703 27330 27330A 27357 27359 27370 27371 27372 27384 27387B 27411 27443 27669 27700A 2779287703 2779387701 2779487704 2779487705 9004179059 9009900197 9009900197 9009905171 9010510468 9017910181 9164180820 9164180835
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-97401

K3VE..J102,122..EFI

 1
27039 - COVER, ALTERNATOR REAR END
27039-97201

K3VE..J102,122

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-97202

K3VE..J102,122..EFI

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
27791-87707

K3VE..J102,122

 1
27312 - PLATE, RETAINER
27312-87704

K3VE..J102,122

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-97201

K3VE..J102,122..EFI

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
27791-87708

K3VE..J102,122

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-87305

K3VE..J102,122..EFI

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-97201

K3VE..J102,122

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-87708

K3VE,HCEJ..J10#,122

 1
27371 - BRUSH, ALTERNATOR
27371-87501

K3VE,HCEJ..J10#,122

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-87501

K3VE,HCEJ..J10#,122

 2
27384 - WASHER
27384-87702

K3VE..J102,122

 1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-87705

K3VE..J102,122

 1
27411 - PULLEY, ALTERNATOR
27411-97202

K3VE..J102,122

 1
27443 - COVER, ALTERNATOR BEARING
27443-87501

K3VE,HCEJ..J10#,122

 1
27669 - CAP, GENERATOR
27669-87201

K3VE,HCEJ..J10#,122

 1
27700A - REGULATOR ASSY, GENERATOR
27700-97203

K3VE..J102,122

 1
Common parts
12327-97401
22383-87703
27111-87701
27314-87703
27792-87703
27793-87701
27794-87704
27794-87705
90041-79059
90099-00197
90099-05171
90105-10468
90179-10181
91641-80820
91641-80835
