J100E-GPZE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

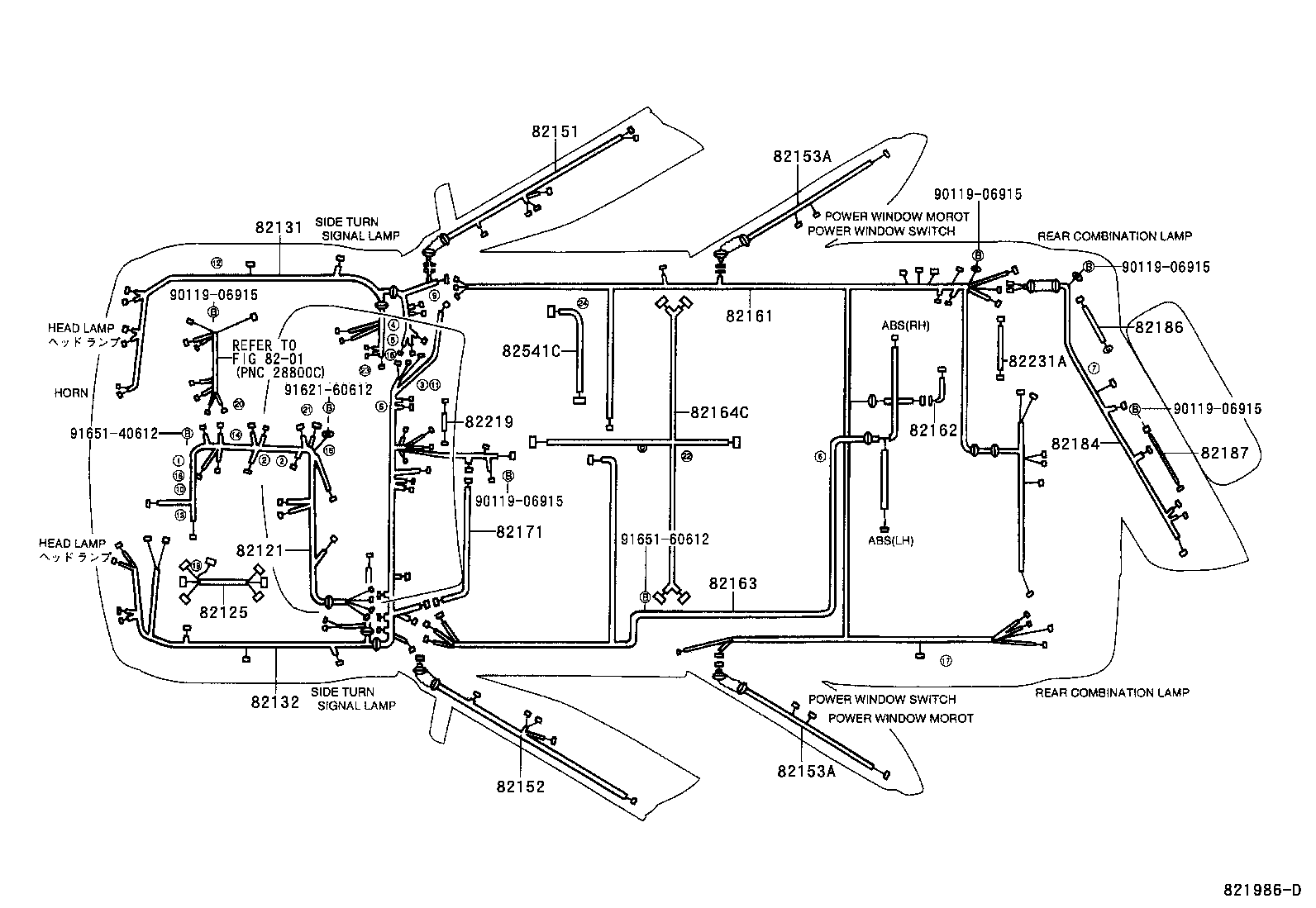

ILLUST NO. 1 OF 3(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-87408 |
J100..4AT |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-87467 |
J100..4AT..Q ｴｱﾛ ﾊﾞ-ｼﾞﾖﾝ |
1 | ||
| 82131-87437 |
J100..4AT |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-87483 |
J100..4AT..Q ｴｱﾛ ﾊﾞ-ｼﾞﾖﾝ |
1 | ||
| 82132-87445 |
J100..4AT |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-87418 |
J100..P |
1 | ||
| 82151-87415 |
J100..Q |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-87412 |
J100..Q |
1 | ||
| 82152-87401 |
J100..P |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-87403 |
J100 |
2 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-87403 |
J100 |
2 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-87415 |
J100 |
1 | ||
| 82161-87407 |
J100 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-87402 |
J10#,122 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-87401 |
J100 |
1 | ||
| 82163-87405 |
J100 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-87401 |
J10#,122 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-87401 |
J10#,122 |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-87401 |
J10#,122 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-87401 |
J10#,122 |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-87402 |
J100 |
1 | ||
| 82231A - WIRE, BRAKE WARNING SWITCH | ||||
| 82231-87402 |
J100..Q;J102,122 |
1 | ||
| 82231-87402 |
J100..P ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91621-60612 | ||||
| 91651-40612 | ||||
| 91651-60612 | ||||
| Linked diagrams | ||||
| 8201 | ||||

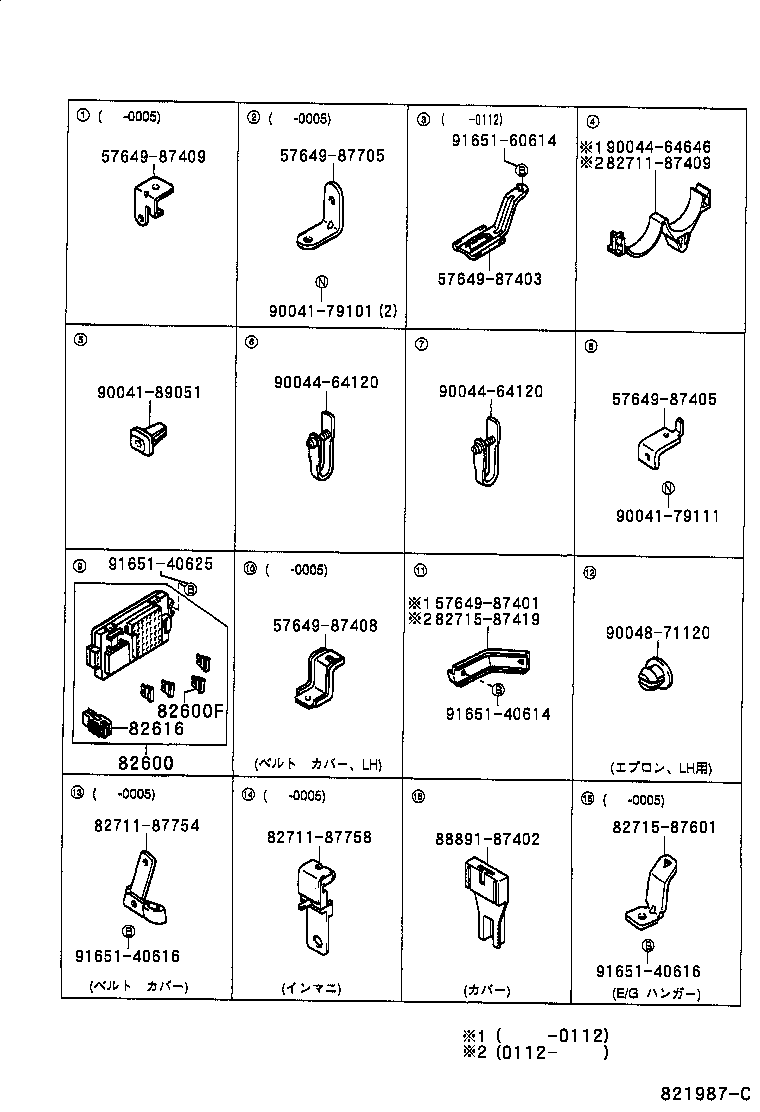

ILLUST NO. 2 OF 3(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-87404 |
J100 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90049-40021 |
J10#,122 20A,ｲｴﾛｰ |
1 | ||
| 90049-40019 |
J10#,122 10A,ﾚｯﾄﾞ |
1 | ||
| 90049-40047 |
J10#,122 50A |
1 | ||
| 90049-40048 |
J10#,122 40A |
1 | ||
| 90049-40020 |
J10#,122 15A,ﾌﾞﾙｰ |
1 | ||
| 90049-40028 |
J10#,122 30A,ｸﾞﾘｰﾝ |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-87701 |
J10#,122 |
1 | ||
| Common parts | ||||
| 57649-87401 | ||||
| 57649-87403 | ||||
| 57649-87405 | ||||
| 57649-87408 | ||||
| 57649-87409 | ||||
| 57649-87705 | ||||
| 82711-87409 | ||||
| 82711-87754 | ||||
| 82711-87758 | ||||
| 82715-87419 | ||||
| 82715-87601 | ||||
| 88891-87402 | ||||
| 90041-79101 | ||||
| 90041-79111 | ||||
| 90041-89051 | ||||
| 90044-64120 | ||||
| 90044-64646 | ||||
| 90048-71120 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40625 | ||||
| 91651-60614 | ||||

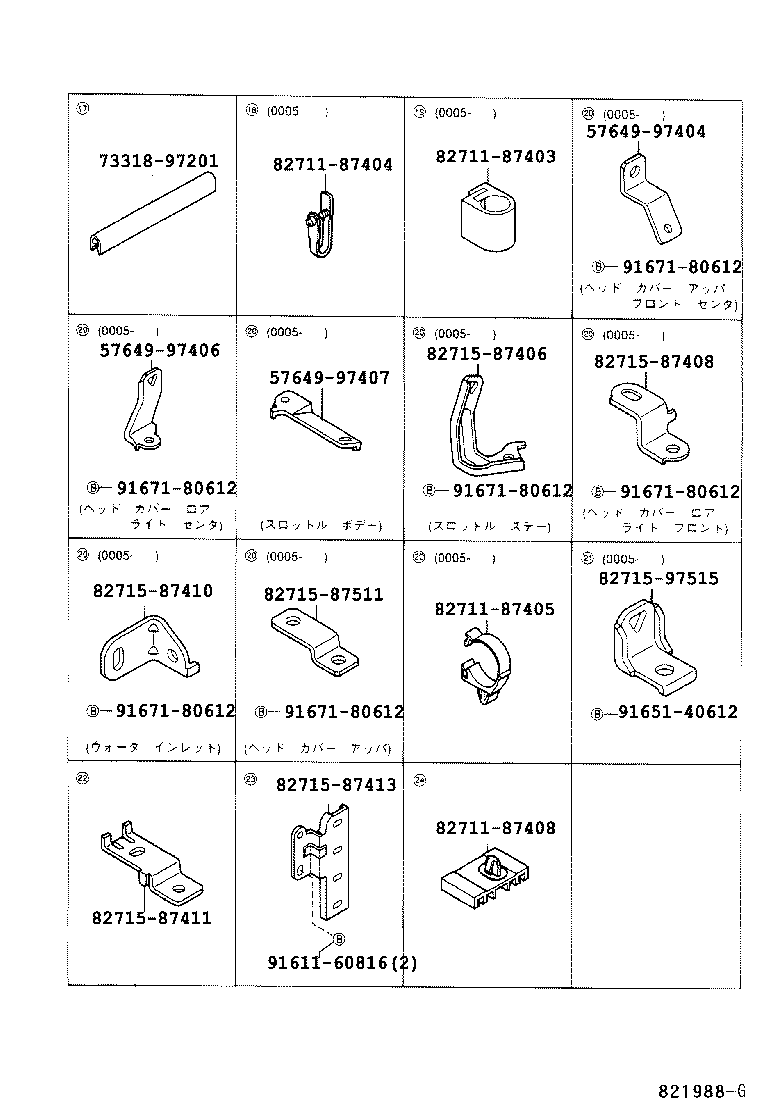

ILLUST NO. 3 OF 3(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 57649-97404 | ||||
| 57649-97406 | ||||
| 57649-97407 | ||||
| 73318-97201 | ||||
| 82711-87403 | ||||
| 82711-87404 | ||||
| 82711-87405 | ||||
| 82711-87408 | ||||
| 82715-87406 | ||||
| 82715-87408 | ||||
| 82715-87410 | ||||
| 82715-87411 | ||||
| 82715-87413 | ||||
| 82715-87511 | ||||
| 82715-97515 | ||||
| 91611-60816 | ||||
| 91651-40612 | ||||
| 91671-80612 | ||||
