J100E-GPZE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

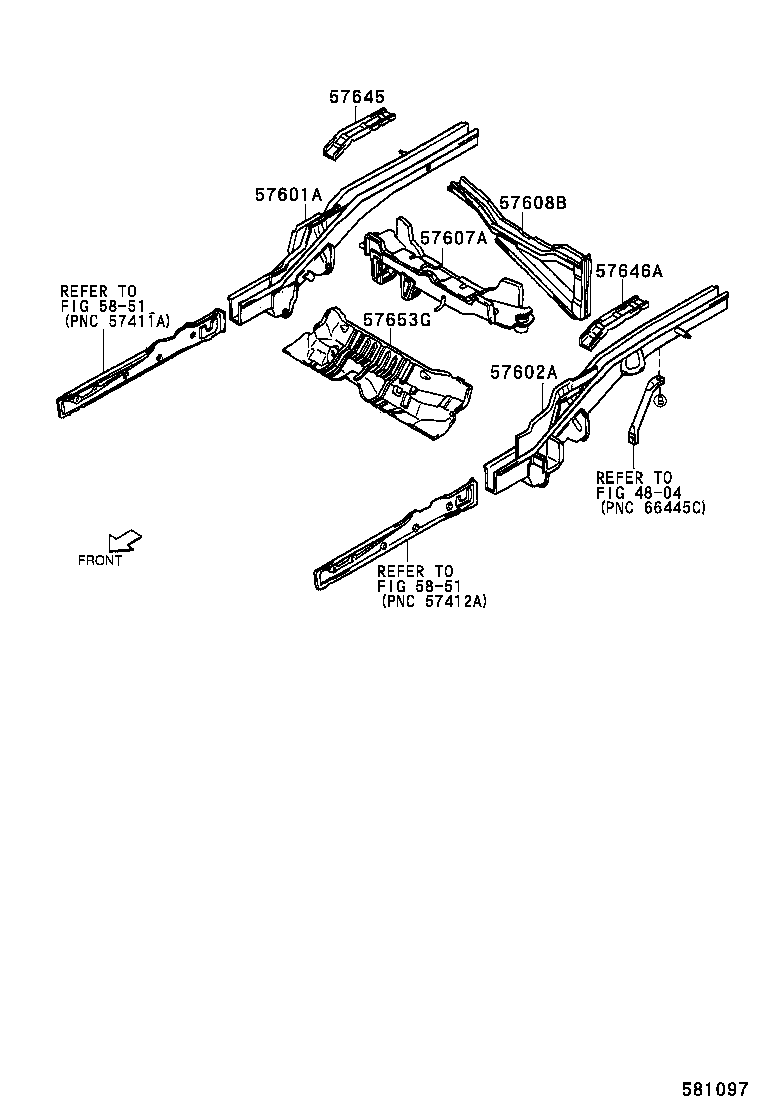

ILLUST NO. 1 OF 2(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57601A - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-87403 |
J100 |
1 | ||
| 57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-87403 |
J100 |
1 | ||
| 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-87401 |
J100 |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-87401 |
J100 |
1 | ||
| 57645 - REINFORCEMENT, REAR SIDE MEMBER, RH | ||||
| 57645-87401 |
J10#,122 |
1 | ||
| 57646A - REINFORCEMENT, REAR SIDE MEMBER, LH | ||||
| 57646-87401 |
J10#,122 |
1 | ||
| 57653G - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-87401 |
J10#,122 |
1 | ||
| Linked diagrams | ||||
| 4804 | ||||
| 5851 | ||||

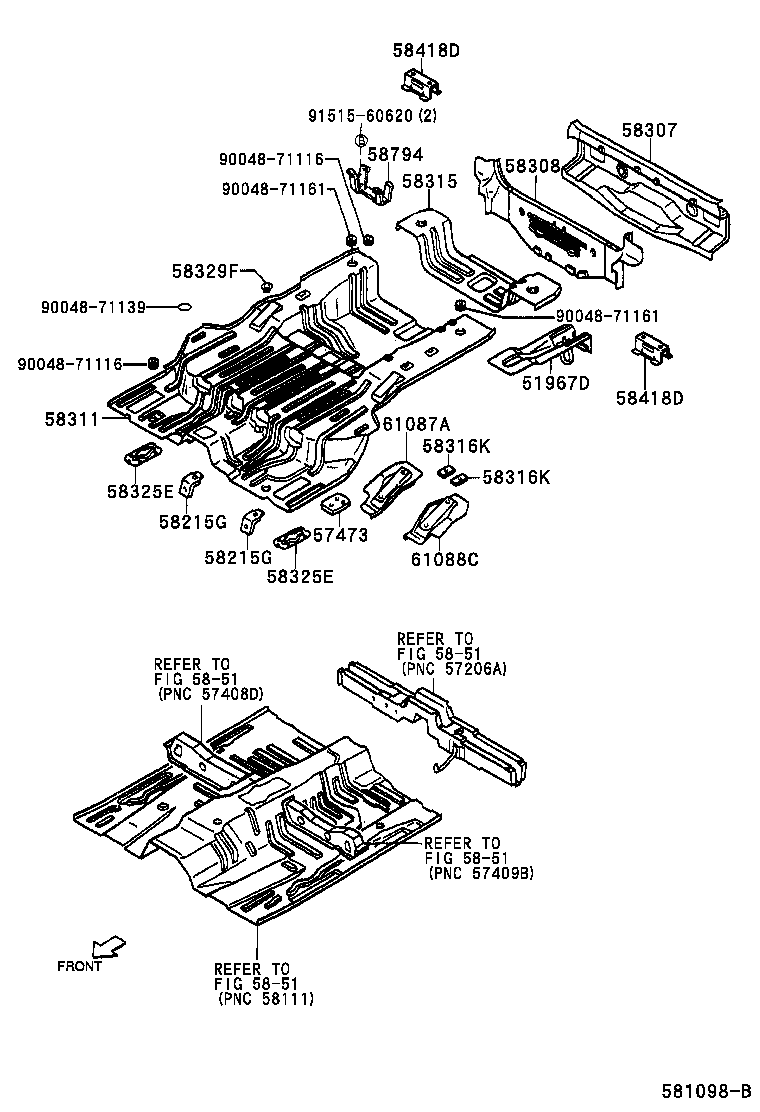

ILLUST NO. 2 OF 2(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51967D - HOOK SUB-ASSY,REAR | ||||
| 51095-87401 |
J10#,122 |
1 | ||
| 57473 - REINFORCEMENT, REAR SEAT BACK HINGE | ||||
| 57473-87401 |
J10#,122 |
1 | ||
| 58215G - BRACKET, REAR SEAT MOUNTING, NO.1 | ||||
| 58215-87401 |
J10#,122 |
4 | ||
| 58215G - BRACKET, REAR SEAT MOUNTING, NO.1 | ||||
| 58215-87401 |
J10#,122 |
4 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-87401 |
J10#,122 |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-87401 |
J10#,122 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-87402 |
J10#,122 |
1 | ||
| 58315 - EXTENSION, REAR FLOOR PANEL | ||||
| 58315-87402 |
J10#,122 |
1 | ||
| 58316K - PLATE, FOOTREST, REAR | ||||
| 58316-87604 |
J10#,122 |
2 | ||
| 58316K - PLATE, FOOTREST, REAR | ||||
| 58316-87604 |
J10#,122 |
2 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-87402 |
J10#,122 |
2 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-87402 |
J10#,122 |
2 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-87401 |
J10#,122 |
1 | ||
| 58418D - BRACKET, DECK BOARD, NO.2 | ||||
| 58418-87401 |
J100..Q |
2 | ||
| 58418D - BRACKET, DECK BOARD, NO.2 | ||||
| 58418-87401 |
J100..Q |
2 | ||
| 58794 - CARRIER, JACK | ||||
| 58117-87402 |
J10#,122 |
1 | ||
| 61087A - BRACKET SUB-ASSY, REAR SEAT BACK HINGE, RH | ||||
| 61087-87401 |
J10#,122 |
1 | ||
| 61088C - BRACKET SUB-ASSY, REAR SEAT BACK HINGE, LH | ||||
| 61088-87402 |
J10#,122 |
1 | ||
| Common parts | ||||
| 90048-71116 | ||||
| 90048-71139 | ||||
| 90048-71161 | ||||
| 91515-60620 | ||||
| Linked diagrams | ||||
| 5851 | ||||
