J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905-0005)

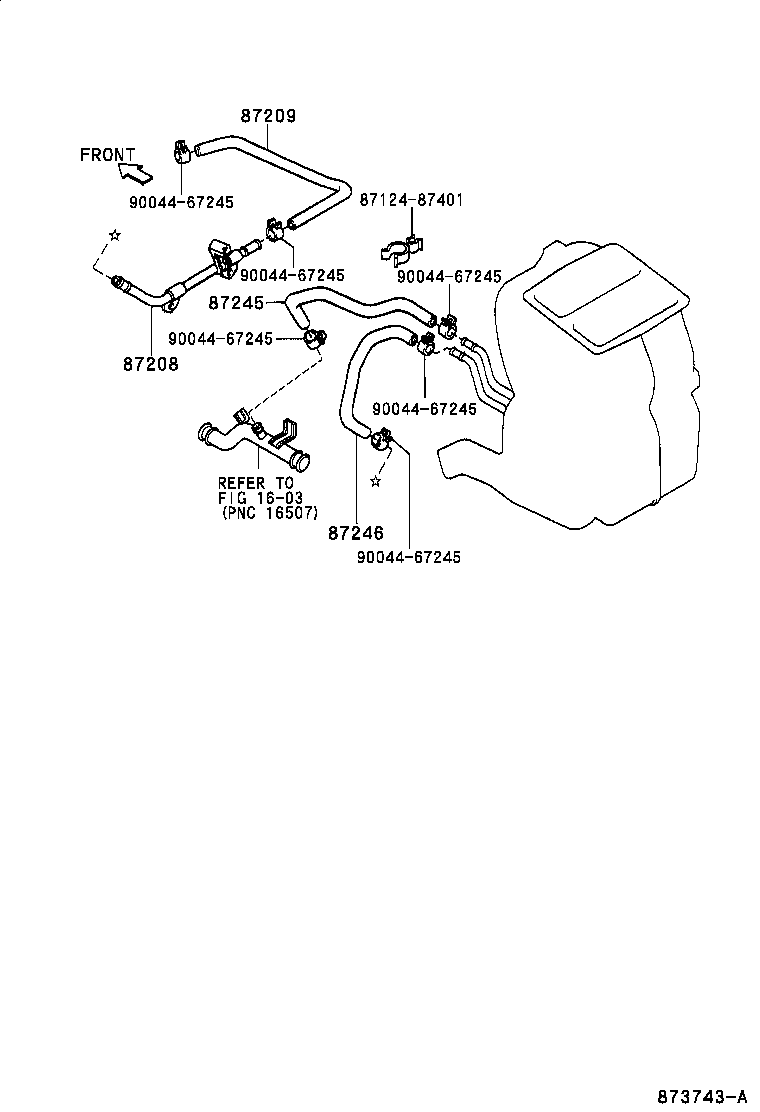

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-87401 |
J100 |
1 | ||
| 87209 - HOSE SUB-ASSY, WATER | ||||
| 87242-87401 |
J100 |
1 | ||
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-87402 |
J100 |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87246-87401 |
J100 |
1 | ||
| Common parts | ||||
| 87124-87401 | ||||
| 90044-67245 | ||||
| Linked diagrams | ||||
| 1603 | ||||
