J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

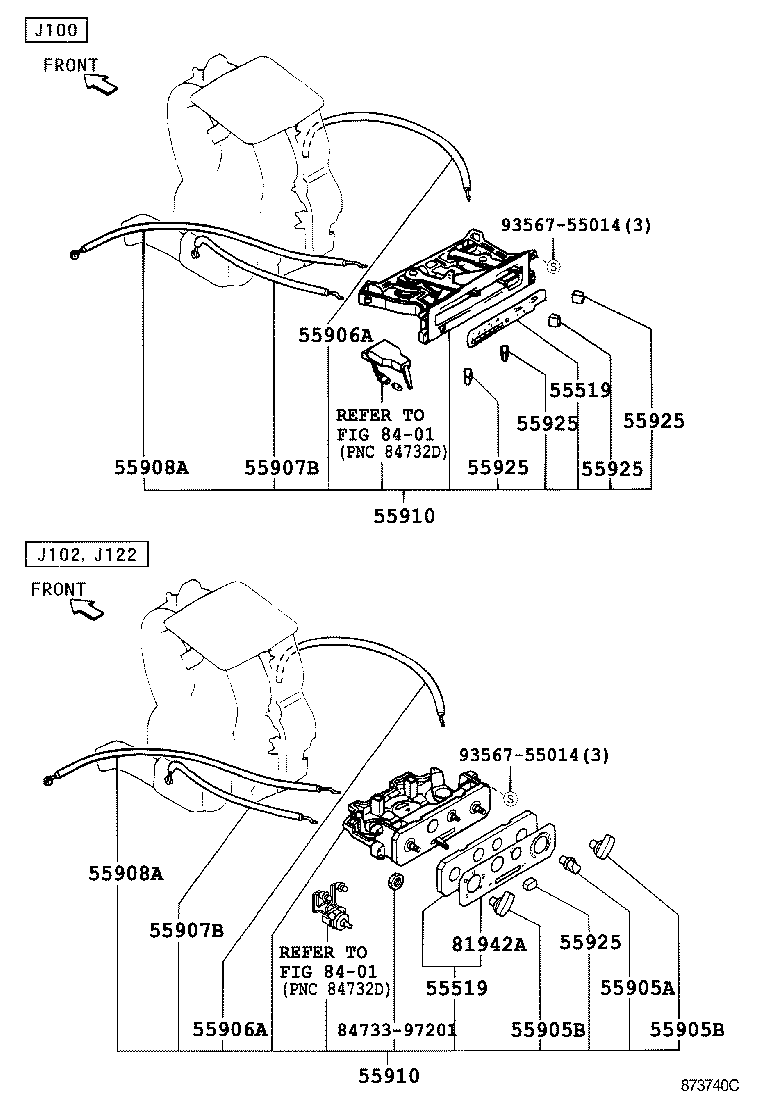

ILLUST NO. 1 OF 2(9905- )
Click highlighted areas on diagram
ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-87401 |
J100 |
1 | ||
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-87401 |
J100 |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-87401 |
J100 |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-87401 |
J100 |
1 | ||
| 55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL | ||||
| 55907-87401 |
J100 |
1 | ||
| 55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL | ||||
| 55907-87401 |
J100 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-87401 |
J100 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-87401 |
J100 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-87403 |
J100 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-87403 |
J100 |
1 | ||
| 55925 - KNOB, HEATER CONTROL LEVER | ||||
| 55925-87202 |
J100 |
4 | ||
| 55925 - KNOB, HEATER CONTROL LEVER | ||||
| 55925-87202 |
J100 |
4 | ||
| 55925 - KNOB, HEATER CONTROL LEVER | ||||
| 55925-87202 |
J100 |
4 | ||
| 55925 - KNOB, HEATER CONTROL LEVER | ||||
| 55925-87202 |
J100 |
4 | ||
| 55925 - KNOB, HEATER CONTROL LEVER | ||||
| 55925-87202 |
J100 |
4 | ||
| Common parts | ||||
| 84733-97201 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

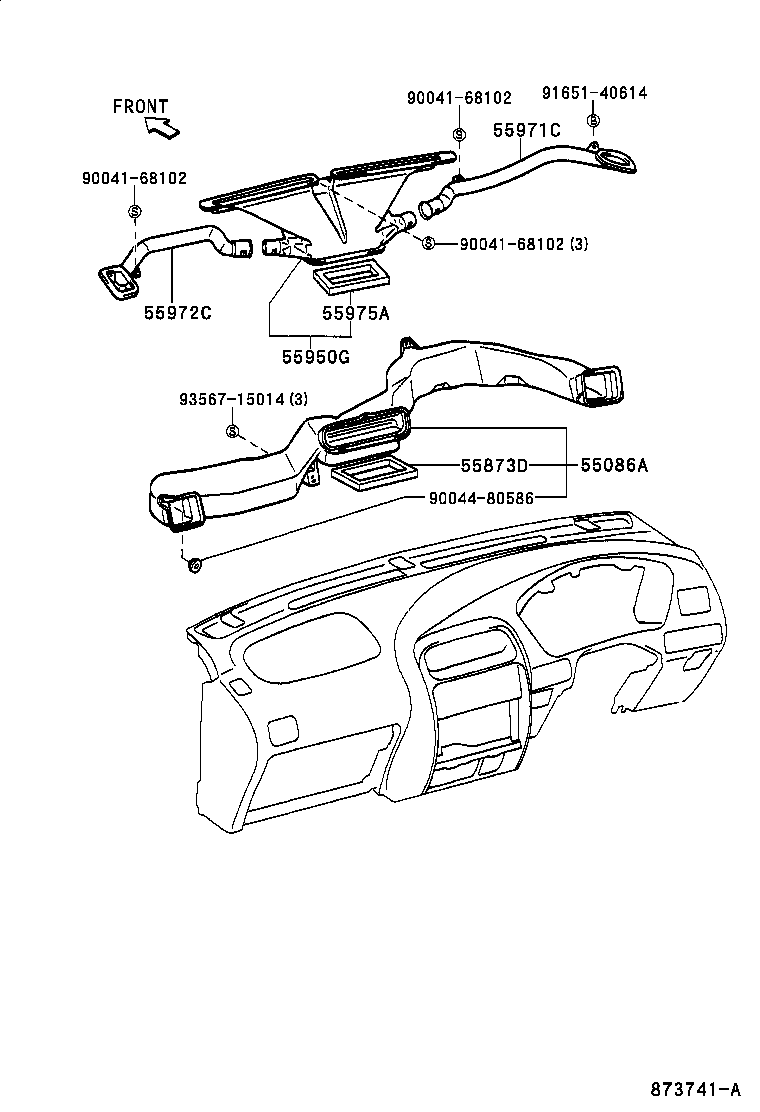

ILLUST NO. 2 OF 2(9905- )
Click highlighted areas on diagram
ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-87401 |
J10#,122 |
1 | ||
| 55873D - SEAL, AIR DUCT, CENTER | ||||
| 55873-87401 |
J10#,122 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-87401 |
J10#,122 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-87401 |
J10#,122 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-87401 |
J10#,122 |
1 | ||
| 55975A - SEAL, DEFROSTER NOZZLE, NO.1 | ||||
| 55975-87401 |
J10#,122 |
1 | ||
| Common parts | ||||
| 90041-68102 | ||||
| 90044-80586 | ||||
| 91651-40614 | ||||
| 93567-15014 | ||||
