J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

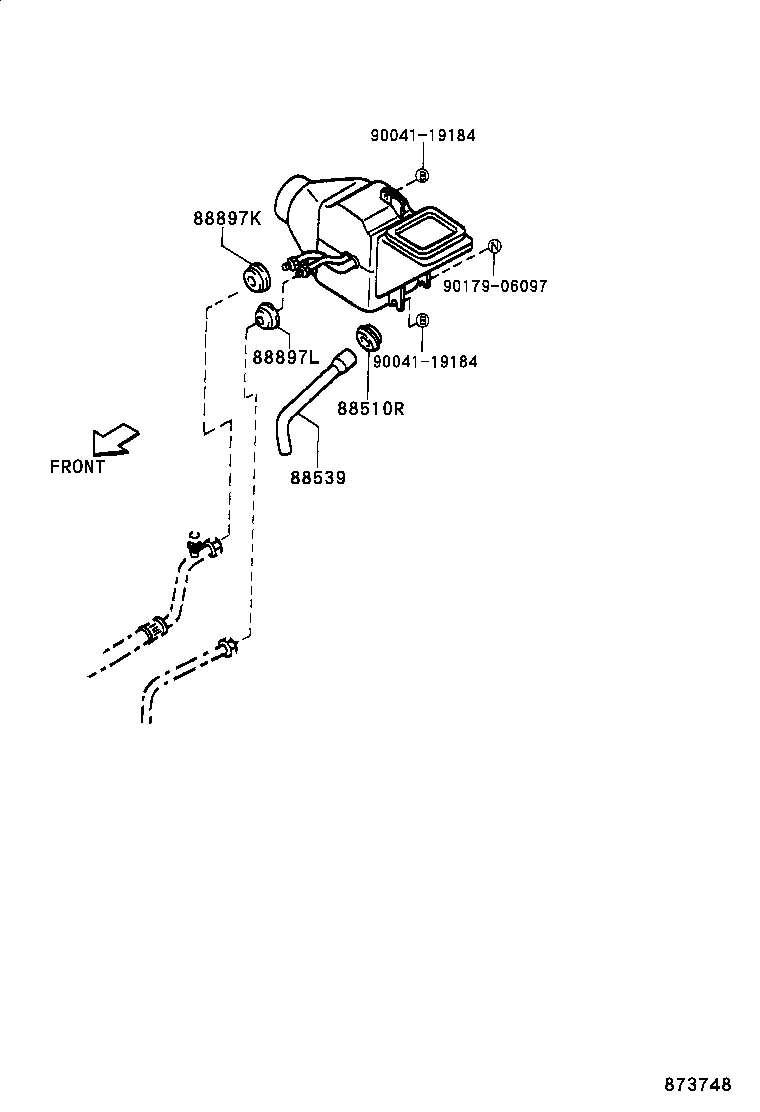

ILLUST NO. 1 OF 2(9905- )

Click highlighted areas on diagram

diagram 88510R 88539 88897K 88897L 9004119184 9004119184 9017906097
Part # Description Qty Price
88510R - GROMMET (FOR COOLER UNIT)
88897-87210

J10#,122

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-87401

J100

 1
88897K - GROMMET, (FOR COOLER PIPE)
90480-36003

J10#,122

 1
88897L - GROMMET (FOR DRAIN HOSE)
88897-87401

J10#,122

 1
Common parts
90041-19184
90179-06097

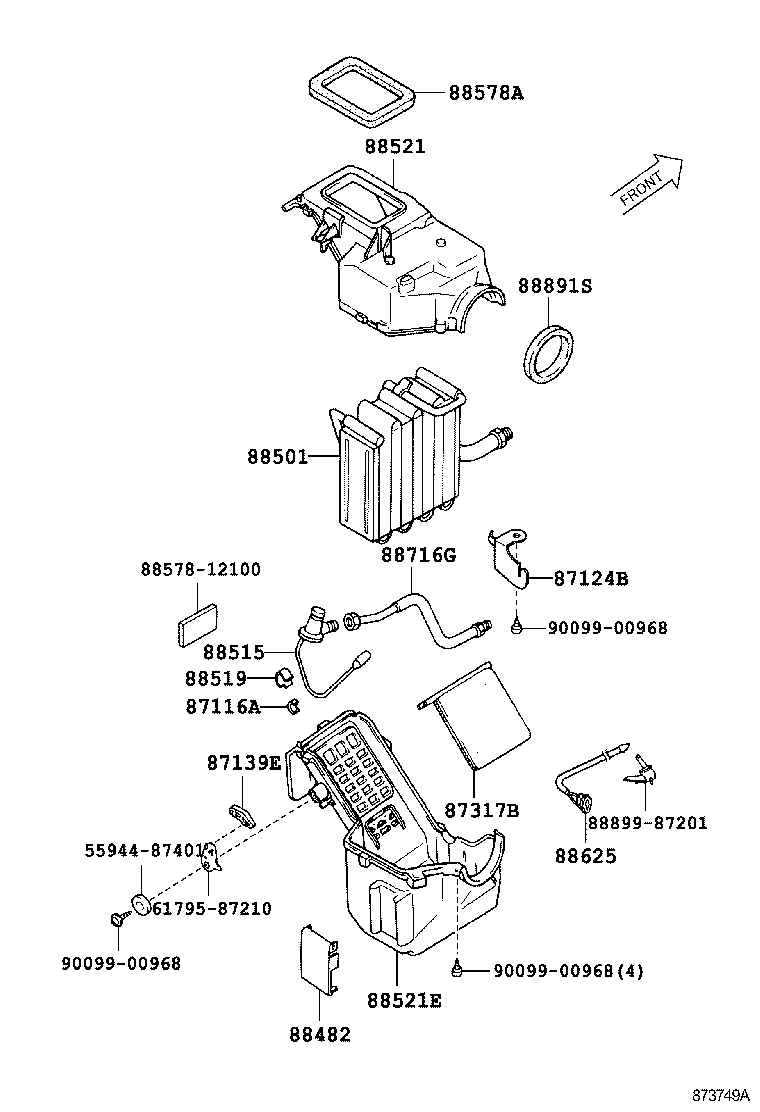

ILLUST NO. 2 OF 2(9905- )

Click highlighted areas on diagram

diagram 5594487401 6179587210 87116A 87124B 87139E 87317B 88482 88501 88515 88519 88521 88521E 8857812100 88578A 88625 88716G 88891S 8889987201 9009900968 9009900968 9009900968
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-87501

J10#,122

 3
87124B - CLAMP, HEATER
87124-87402

J10#,122

 1
87139E - PLATE, BRACKET
87139-87201

J10#,122

 1
87317B - DAMPER, HEATER DUCT
87317-87203

J10#,122

 1
88482 - CAP, COOLER
88482-87206

J10#,122

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-87403

J10#,122

 1
88515 - VALVE, COOLER EXPANSION
88515-87401

J10#,122

 1
88519 - HOLDER, REMOTE BULB
88519-87701

J10#,122

 1
88521 - CASE, COOLER UNIT
88521-87404

J10#,122

 1
88521E - CASE SUB-ASSY, COOLING UNIT
88521-87405

J10#,122

 1
88578A - PACKING, COOLER STABILIZER AMPLIFIER
88891-87241

J10#,122

 1
88625 - THERMISTOR, COOLER, NO.1
88625-87501

J10#,122

 1
88716G - PIPE, COOLER REFRIGERANT LIQUID, G
88716-87405

J10#,122

 1
88891S - COVER, COOLER, NO.1
88891-87242

J10#,122

 1
Common parts
55944-87401
61795-87210
88578-12100
88899-87201
90099-00968
