J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905- )

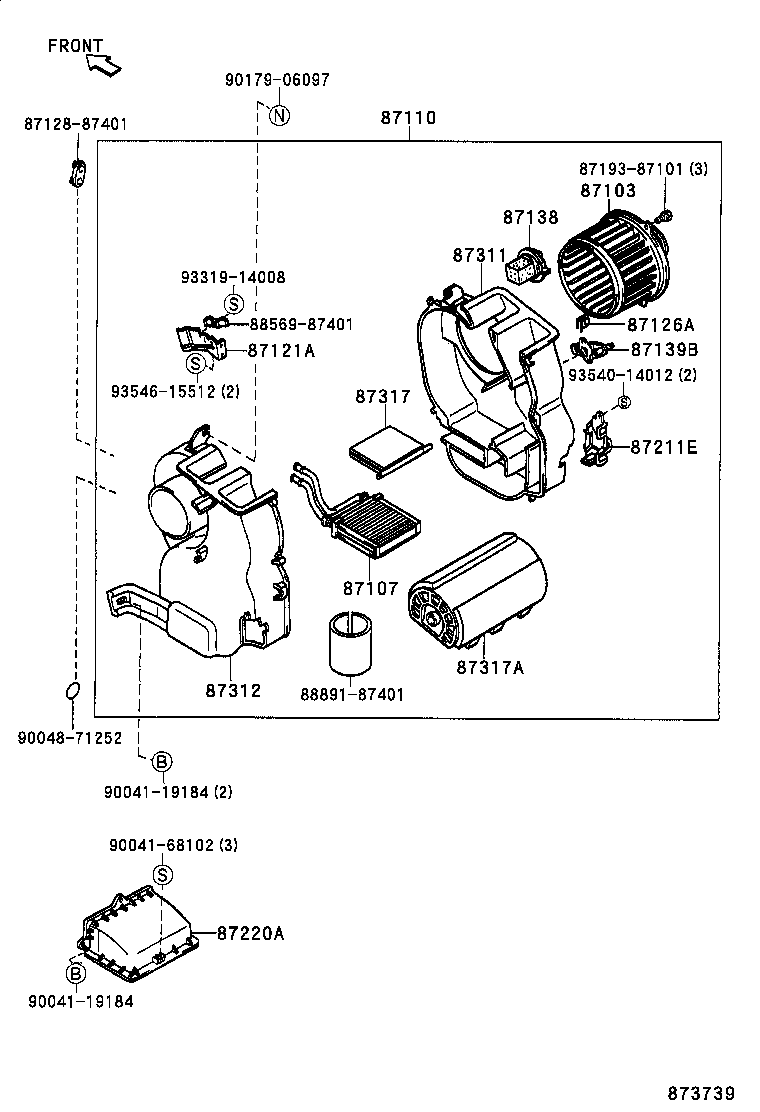

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87104-87401 |
J10#,122 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-87401 |
J10#,122 |
1 | ||
| 87110 - HEATER ASSY | ||||
| 87110-87402 |
J100 |
1 | ||
| 87121A - BRACKET, HEATER | ||||
| 87121-87401 |
J10#,122 |
1 | ||
| 87126A - CLAMP, HEATER CONTROL | ||||
| 87126-87501 |
J10#,122 |
2 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-87401 |
J100 |
1 | ||
| 87139B - FILTER, CLEAN AIR | ||||
| 87139-87402 |
J10#,122 ｴｱﾐｯｸｽ |
1 | ||
| 87139-87401 |
J10#,122 ﾓｰﾄﾞ |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87211-87401 |
J10#,122 右側 |
1 | ||
| 87211-87402 |
J10#,122 左側 |
1 | ||
| 87220A - DUCT ASSY, HEATER RADIATOR AIR | ||||
| 87220-87401 |
J10#,122 |
1 | ||
| 87311 - CASE, HEATER, NO.1 | ||||
| 87311-87401 |
J10#,122 |
1 | ||
| 87312 - CASE, HEATER, NO.2 | ||||
| 87311-87402 |
J10#,122 |
1 | ||
| 87317 - DAMPER, HEATER DUCT | ||||
| 87317-87401 |
J10#,122 |
1 | ||
| 87317A - DAMPER, HEATER DUCT | ||||
| 87317-87402 |
J100 |
1 | ||
| Common parts | ||||
| 87128-87401 | ||||
| 87193-87101 | ||||
| 88569-87401 | ||||
| 88891-87401 | ||||
| 90041-19184 | ||||
| 90041-68102 | ||||
| 90048-71252 | ||||
| 90179-06097 | ||||
| 93319-14008 | ||||
| 93540-14012 | ||||
| 93546-15512 | ||||
