J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905- )

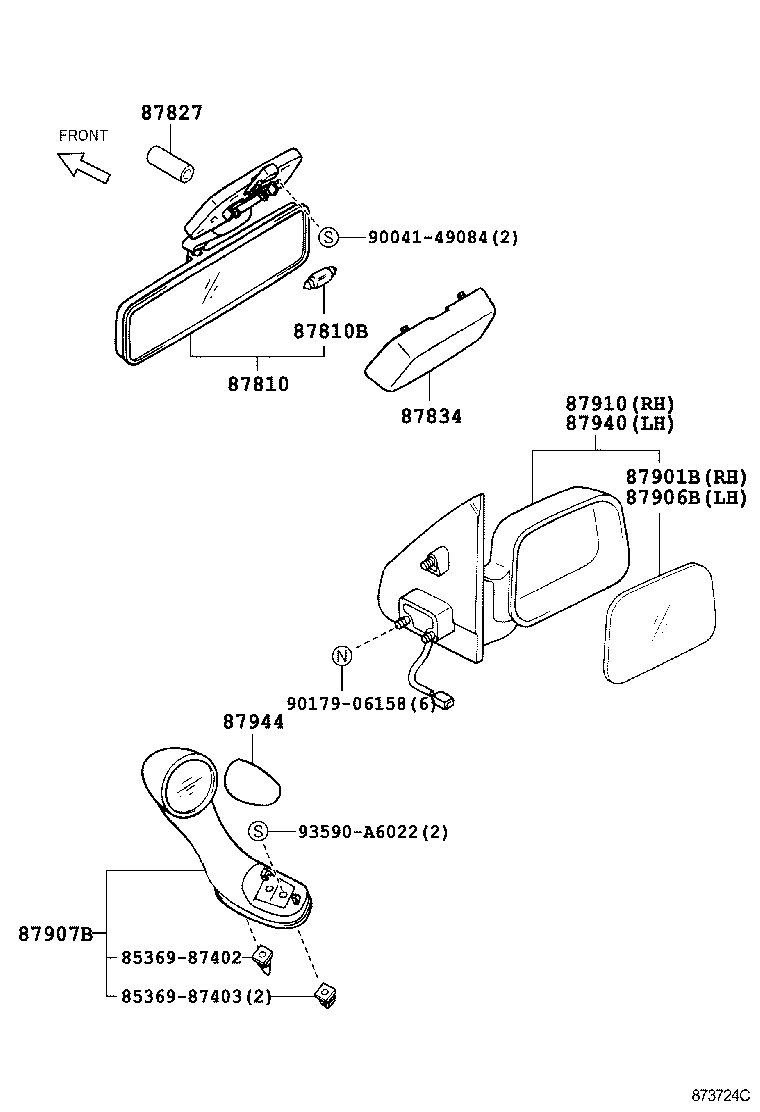

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87803-87401 |
J100 |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90049-51007 |
J10#,122 12V 5W |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-87209 |
J10#,122 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-87401 |
J10#,122 |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87917-87402 |
J10#,122..P |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87947-87402 |
J10#,122..P |
1 | ||
| 87907B - DEVICE SUB-ASSY,FRONT FENDER SIDE VIEW,LH | ||||
| 87930-8740122 |
J100 PURE RED,R19 |
1 | ||
| 87930-8740124 |
J100 MARINE BLUE M.M.,B44 |
1 | ||
| 87930-8740108 |
J100 WHITE,W19 |
1 | ||
| 87930-8740103 |
J10#,122 SILVER M,S07 |
1 | ||
| 87930-8740101 |
J10#,122 BLACK M,6A5 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-87411 |
J10#,122..P |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-87411 |
J10#,122..P |
1 | ||
| 87944 - COVER, FRONT FENDER SIDE VIEW DEVICE, LH | ||||
| 87973-8740122 |
J100 PURE RED,R19 |
1 | ||
| 87973-8740124 |
J100 MARINE BLUE M.M.,B44 |
1 | ||
| 87973-8740101 |
J10#,122 BLACK M,6A5 |
1 | ||
| 87973-8740103 |
J10#,122 SILVER M,S07 |
1 | ||
| 87973-8740108 |
J100 WHITE,W19 |
1 | ||
| Common parts | ||||
| 85369-87402 | ||||
| 85369-87403 | ||||
| 90041-49084 | ||||
| 90179-06158 | ||||
| 93590-A6022 | ||||
