J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )

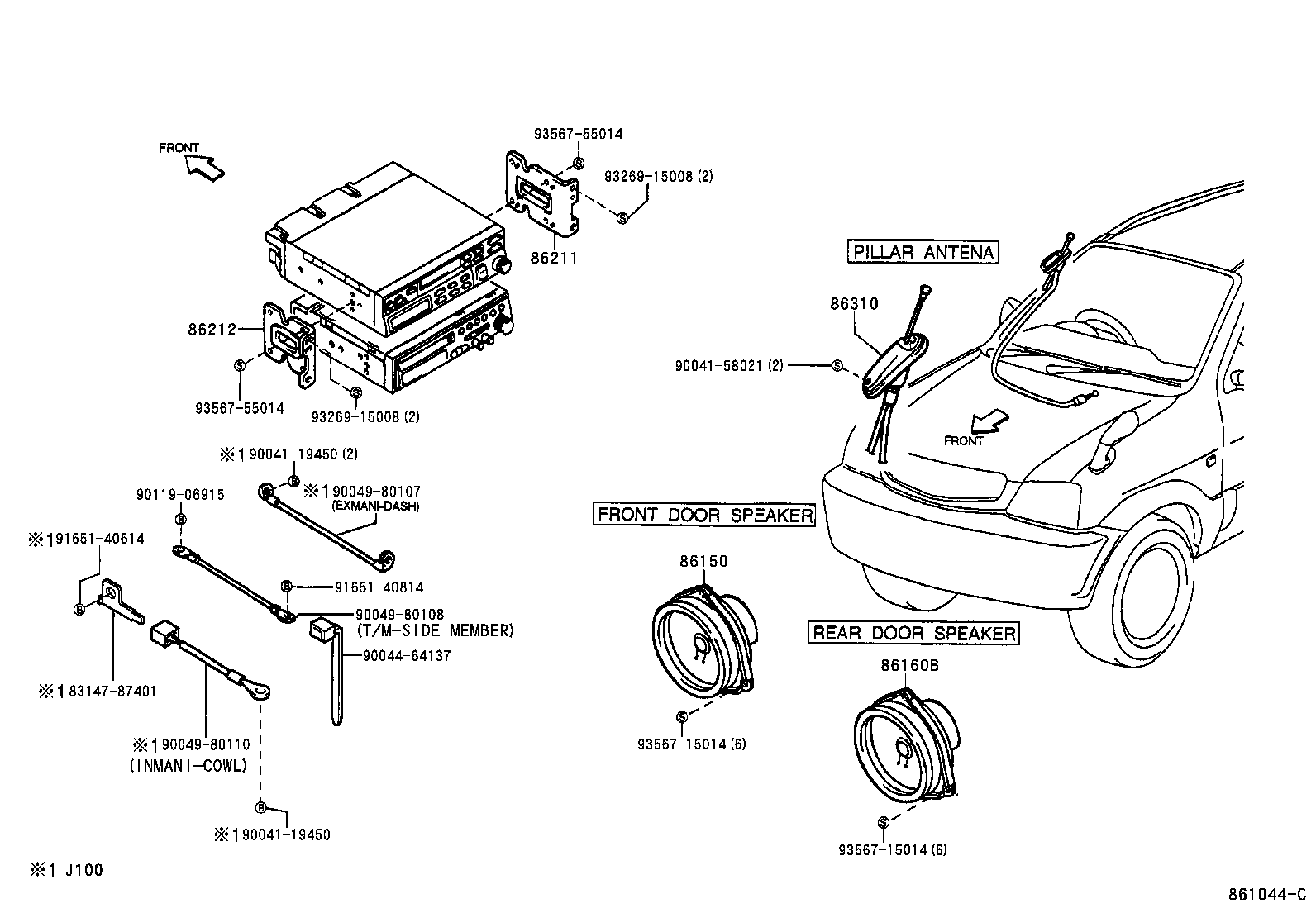

Click highlighted areas on diagram

diagram 8314787401 86150 86160B 86211 86212 86310 9004119450 9004119450 9004158021 9004464137 9004980107 9004980108 9004980110 9011906915 9165140614 9165140814 9326915008 9326915008 9356715014 9356715014 9356755014 9356755014
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-97216

J10#,122

 2
86160B - SPEAKER ASSY, REAR
86150-87401

J10#,122

 2
86211 - BRACKET, RADIO, NO.1
86211-87401

J10#,122

 1
86212 - BRACKET, RADIO, NO.2
86212-87401

J10#,122

 1
86310 - ANTENNA ASSY, W/O HOLDER
86310-87402

J100

 1
Common parts
83147-87401
90041-19450
90041-58021
90044-64137
90049-80107
90049-80108
90049-80110
90119-06915
91651-40614
91651-40814
93269-15008
93567-15014
93567-55014
