J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )

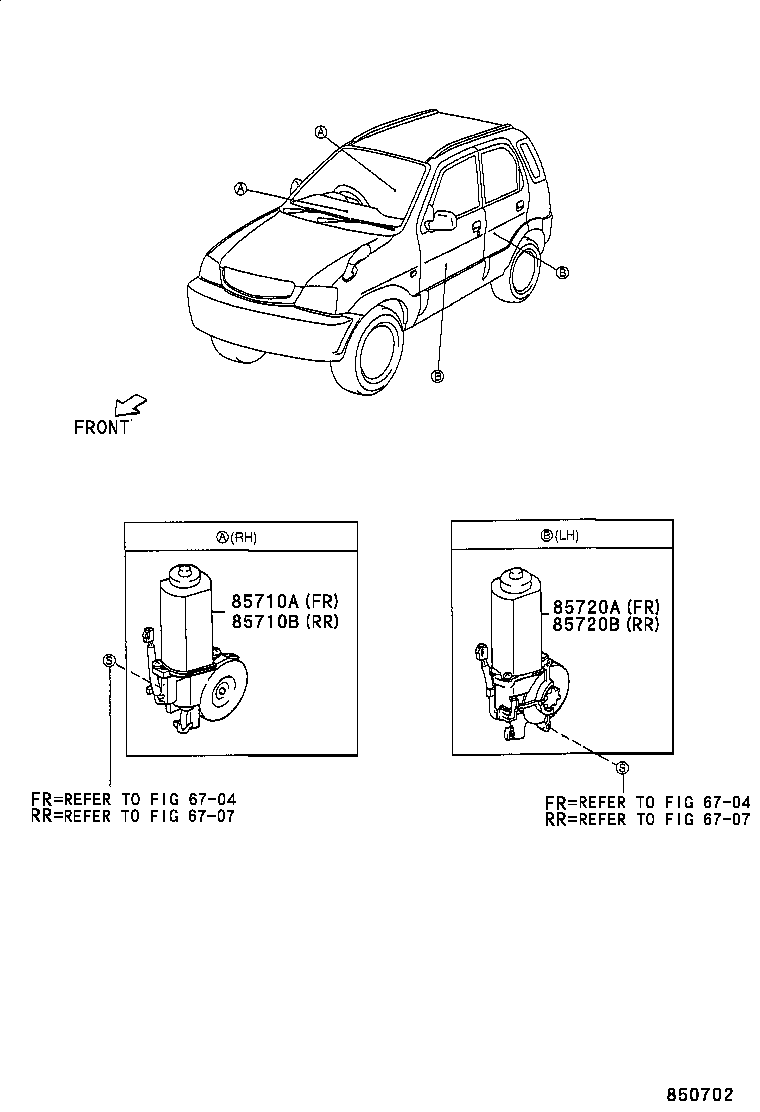

Click highlighted areas on diagram

diagram 6704 6704 6707 6707 85710A 85710B 85720A 85720B
Part # Description Qty Price
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85710-87401

J10#,122

 1
85710B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH
85730-87402

J10#,122

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85720-87401

J10#,122

 1
85720B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR LH
85740-87402

J10#,122

 1
Linked diagrams
6704
6707
