J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )

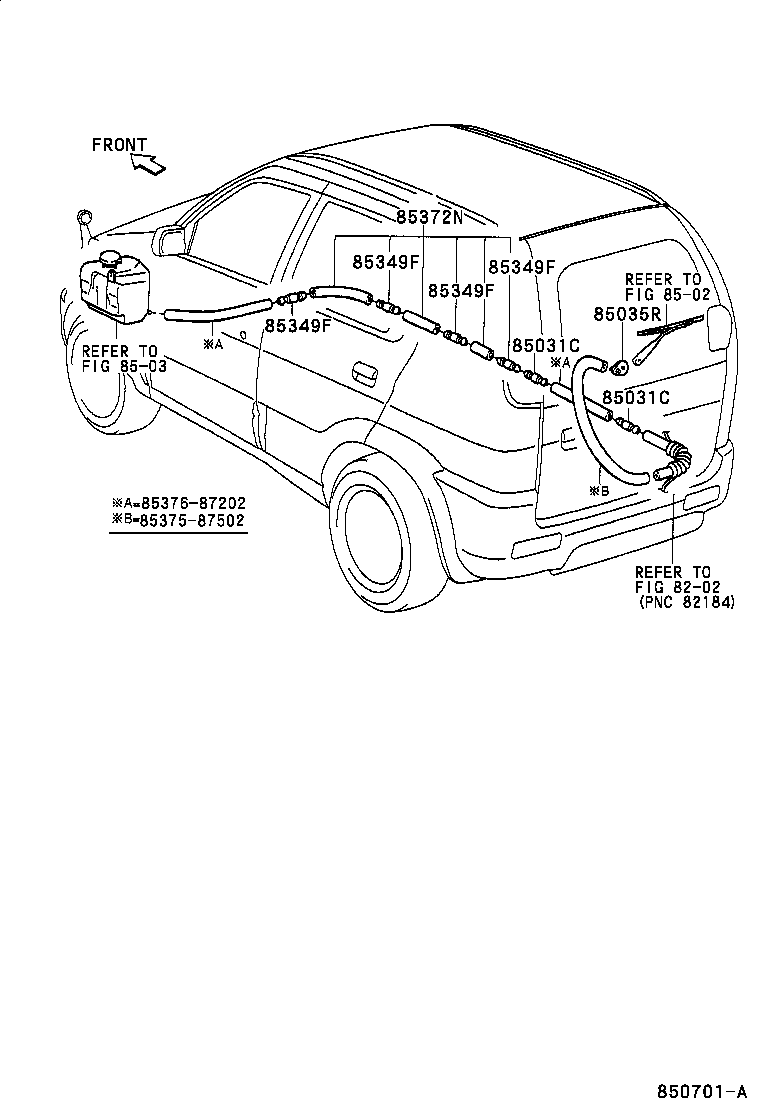

Click highlighted areas on diagram

diagram 8202 8502 8503 85031C 85031C 85035R 85349F 85349F 85349F 85349F 85372N 8537587502 8537687202
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85031-87401

J10#,122

 2
85031C - VALVE SUB-ASSY, WASHER
85031-87401

J10#,122

 2
85035R - NOZZLE SUB-ASSY, REAR WASHER
85303-87401

J10#,122

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85349-87201

J10#,122

 4
85349F - JOINT, REAR WASHER HOSE, NO.1
85349-87201

J10#,122

 4
85349F - JOINT, REAR WASHER HOSE, NO.1
85349-87201

J10#,122

 4
85349F - JOINT, REAR WASHER HOSE, NO.1
85349-87201

J10#,122

 4
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85370-87404

J10#,122

 1
Common parts
85375-87502
85376-87202
Linked diagrams
8202
8502
8503
