J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )

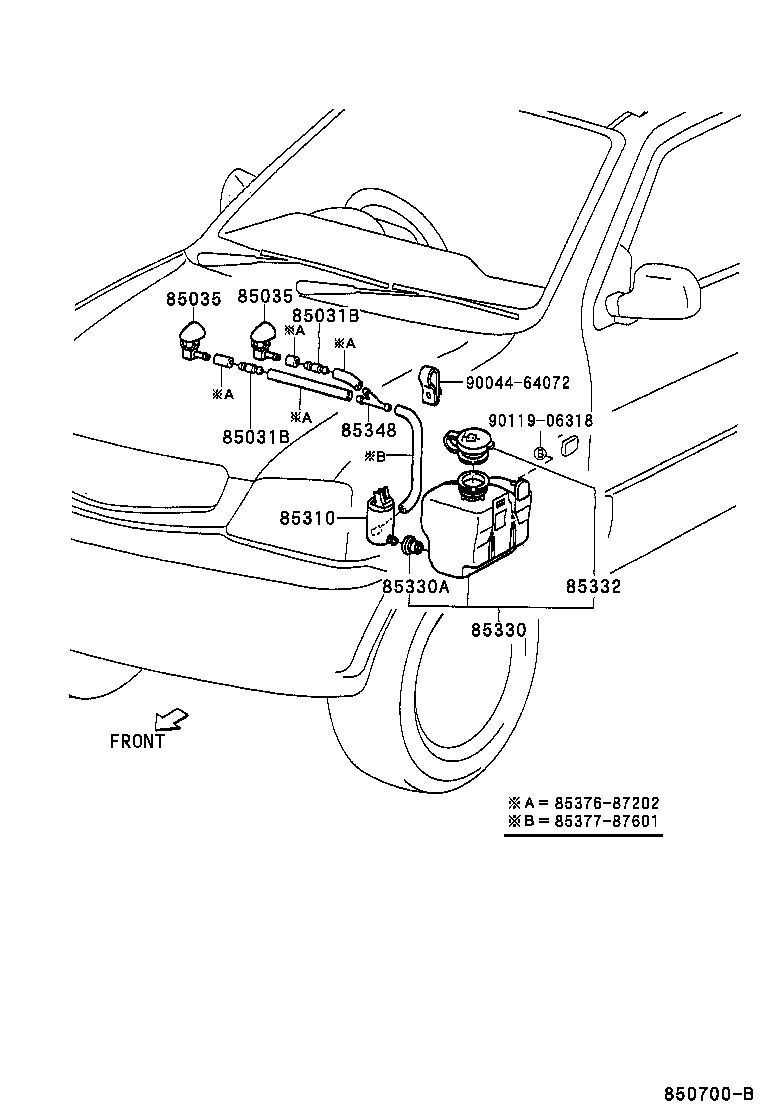

Click highlighted areas on diagram

diagram 85031B 85031B 85035 85035 85310 85330 85330A 85332 85348 8537687202 8537787601 9004464072 9011906318
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85031-87702

J10#,122

 2
85031B - VALVE SUB-ASSY, WASHER
85031-87702

J10#,122

 2
85035 - NOZZLE SUB-ASSY, WASHER
85035-87401

J10#,122

 2
85035 - NOZZLE SUB-ASSY, WASHER
85035-87401

J10#,122

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-87708

J10#,122

 2
85330 - JAR ASSY, WINDSHIELD WASHER
85330-87401

J10#,122

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

J10#,122

 2
85332 - CAP, WINDSHIELD WASHER JAR
85332-87401

J10#,122

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-87201

J10#,122

 1
Common parts
85376-87202
85377-87601
90044-64072
90119-06318
