J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )

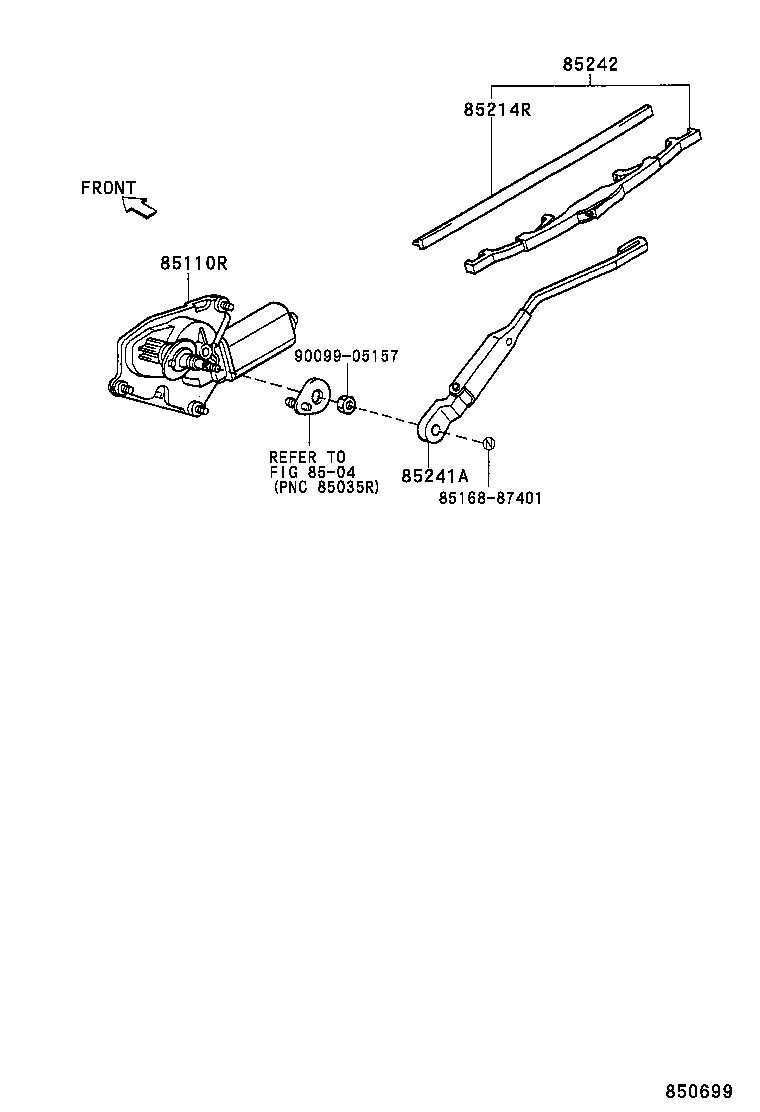

Click highlighted areas on diagram

diagram 8504 85110R 8516887401 85214R 85241A 85242 9009905157
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-87401

J100

 1
85214R - RUBBER, REAR WIPER
85243-87401

J10#,122

 1
85241A - ARM, REAR WIPER
85241-87401

J10#,122

 1
85242 - BLADE, RR WIPER
85242-87401

J10#,122

 1
85291-87209

J10#,122

ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ

 1
Common parts
85168-87401
90099-05157
Linked diagrams
8504
