J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

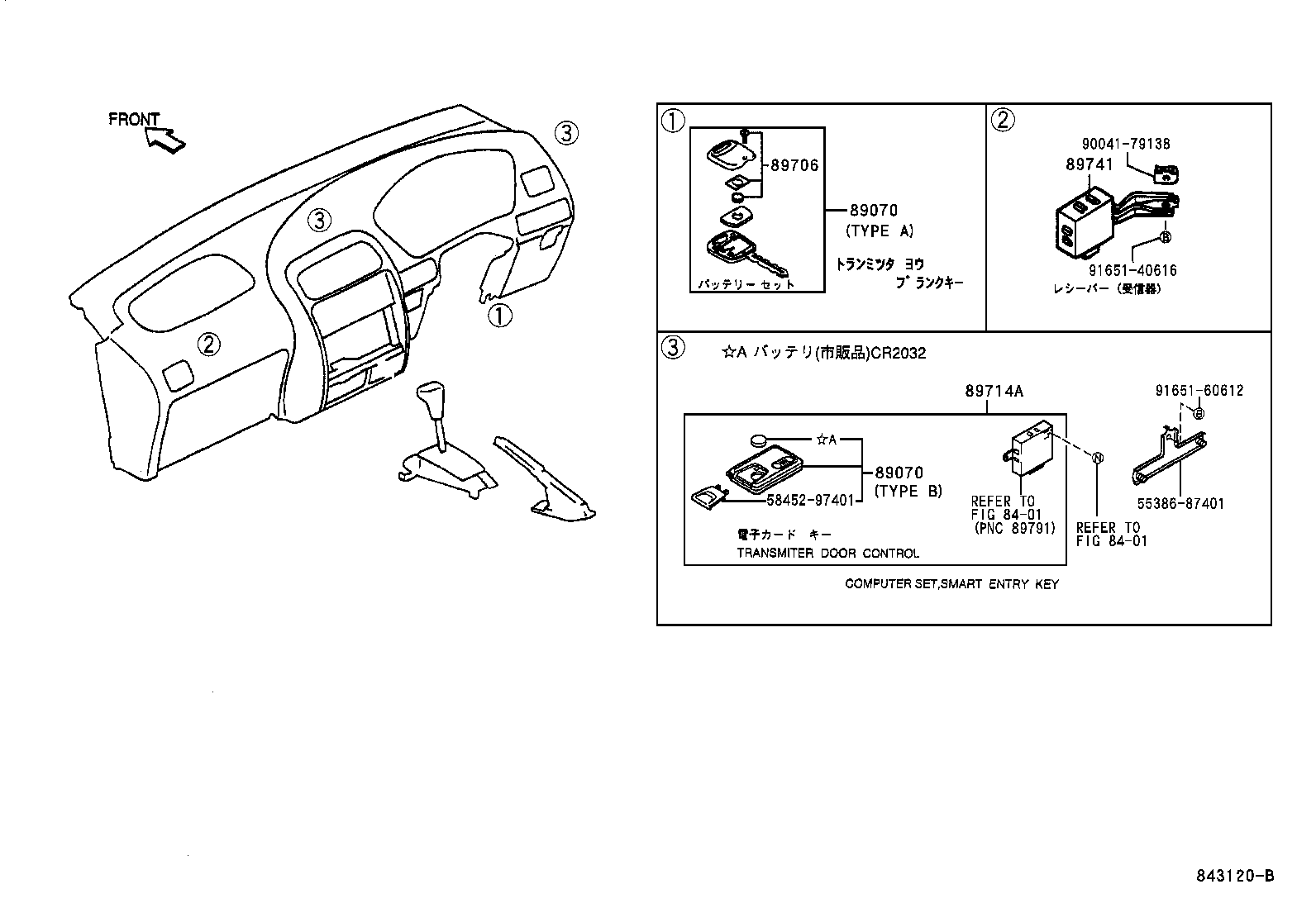

ILLUST NO. 1 OF 2(9905- )

Click highlighted areas on diagram

diagram 5538687401 5845297401 8401 8401 89070 89070 89706 89714A 89741 9004179138 9165140616 9165160612
Part # Description Qty Price
89070 - TRANSMITTER ASSY, DOOR CONTROL
89071-87403

J10#,122

ﾀｲﾌﾟ A

 1
89070 - TRANSMITTER ASSY, DOOR CONTROL
89071-87403

J10#,122

ﾀｲﾌﾟ A

 1
89706 - BATTERY SET, TRANSMITTER
89706-87401

J10#,122

 1
89741 - RECEIVER, DOOR CONTROL
89741-87401

J100

 1
Common parts
55386-87401
58452-97401
90041-79138
91651-40616
91651-60612
Linked diagrams
8401
