J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )

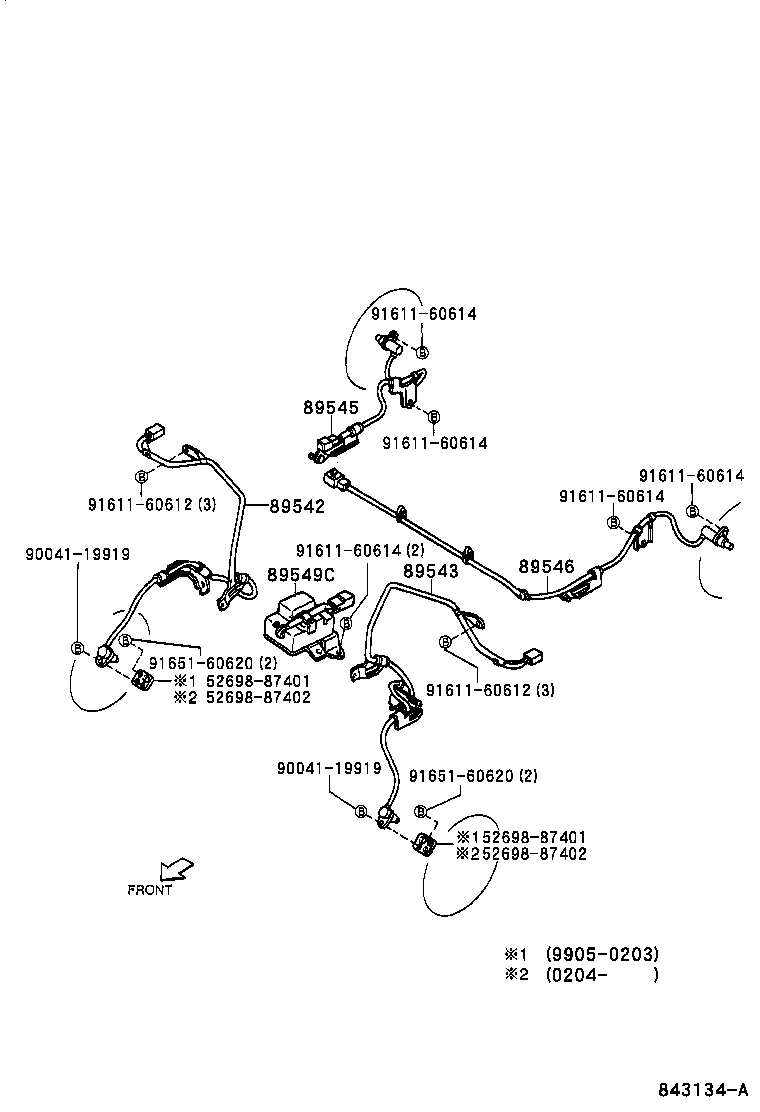

Click highlighted areas on diagram

diagram 5269887401 5269887401 5269887402 5269887402 89542 89543 89545 89546 89549C 9004119919 9004119919 9161160612 9161160612 9161160614 9161160614 9161160614 9161160614 9161160614 9165160620 9165160620
Part # Description Qty Price
89542 - SENSOR, SPEED, FRONT RH
89544-87401

J100

 1
89543 - SENSOR, SPEED, FRONT LH
89545-87401

J100

 1
89545 - SENSOR, SPEED, REAR RH
89544-87402

J100

 1
89546 - SENSOR, SPEED, REAR LH
89545-87402

J100

 1
89549C - SENSOR, GRAVITY, REAR
89549-87401

J100

 1
Common parts
52698-87401
52698-87402
90041-19919
91611-60612
91611-60614
91651-60620
