J100E-GPDE (1999)
Toyota Cami

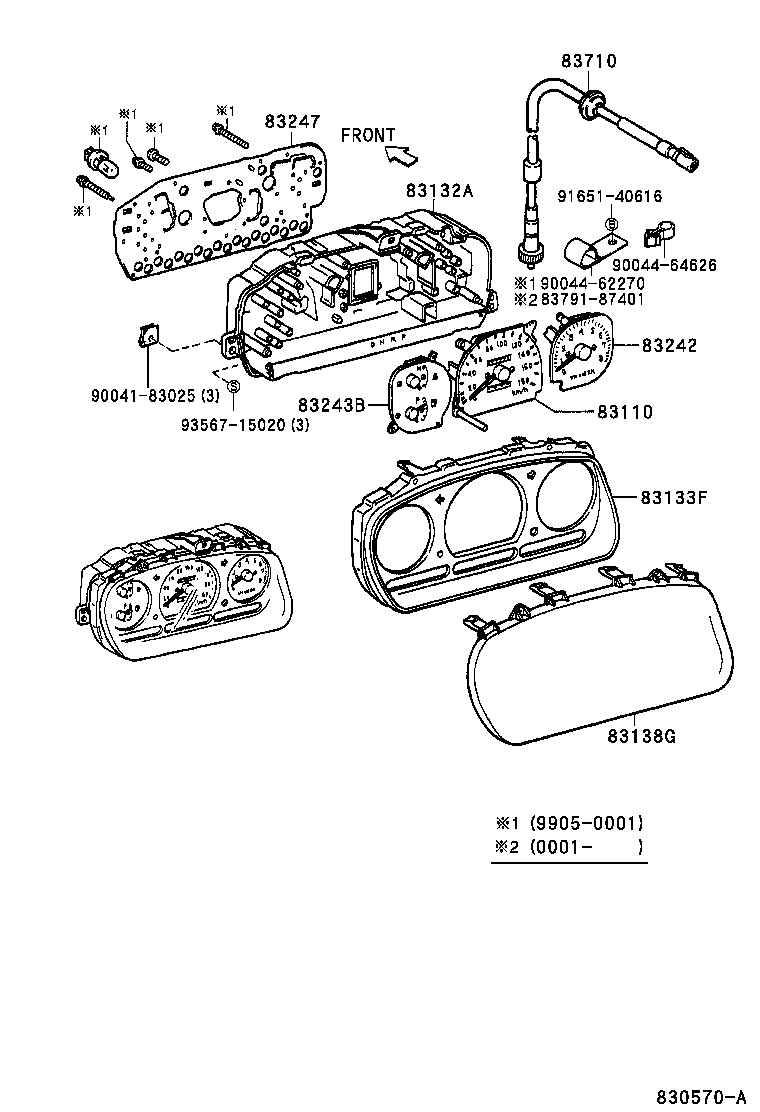

ILLUST NO. 1 OF 2(9905-0005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83130-87415 |
J100..P DENSO |
1 | ||
| 83132A - CASE, METER | ||||
| 83132-87428 |
J100..4AT..P |
1 | ||
| 83133F - PLATE, METER | ||||
| 83133-87723 |
J100 |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83138-87706 |
J100 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83270-87405 |
J100..P |
1 | ||
| 83243B - GAUGE ASSY, COMBINATION | ||||
| 83243-87404 |
J100..P |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83102-87425 |
J100..4AT |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-87411 |
J100 |
1 | ||
| 83710-87401 |
J100 |
1 | ||
| Common parts | ||||
| 83791-87401 | ||||
| 90041-83025 | ||||
| 90044-62270 | ||||
| 90044-64626 | ||||
| 91651-40616 | ||||
| 93567-15020 | ||||

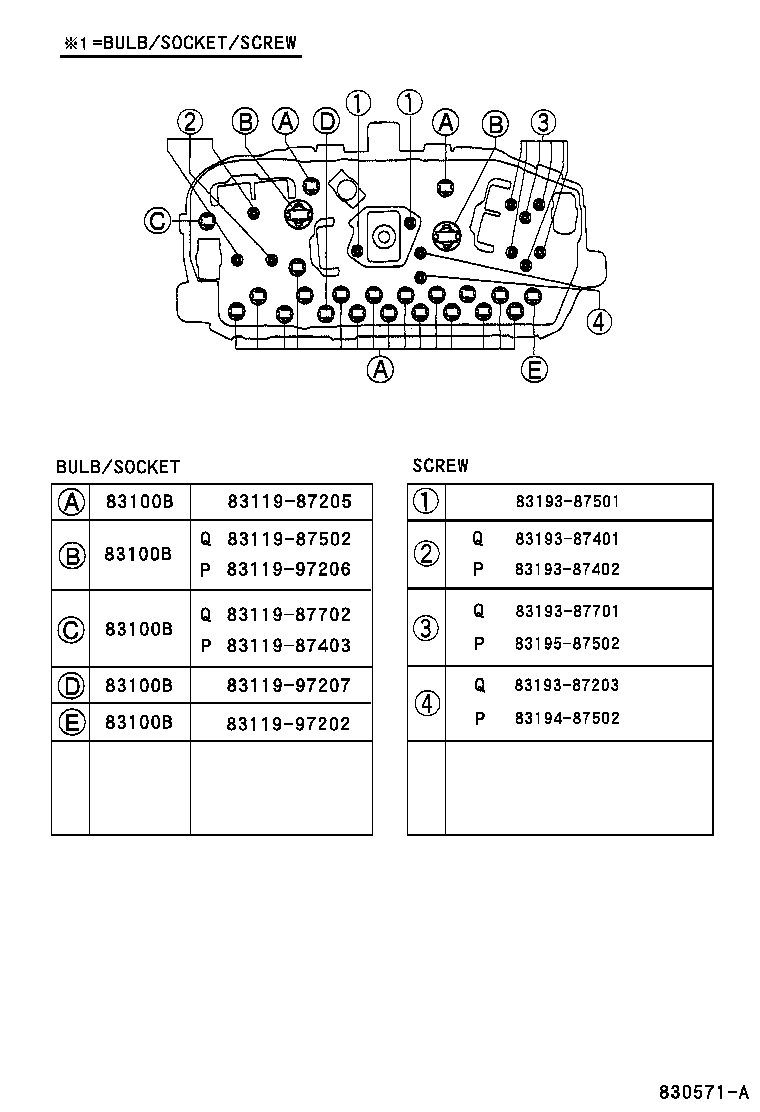

ILLUST NO. 2 OF 2(9905-0005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-87403 |
J100..P 14V 1.4W ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-87205 |
J100 14V 1.4W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
33 | ||
| 83119-97202 |
J100 TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-97207 |
J100 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-97206 |
J100..P 14V 3.4W ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-87403 |
J100..P 14V 1.4W ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-87205 |
J100 14V 1.4W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
33 | ||
| 83119-97202 |
J100 TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-97207 |
J100 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-97206 |
J100..P 14V 3.4W ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-87403 |
J100..P 14V 1.4W ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-87205 |
J100 14V 1.4W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
33 | ||
| 83119-97202 |
J100 TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-97207 |
J100 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-97206 |
J100..P 14V 3.4W ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-87403 |
J100..P 14V 1.4W ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-87205 |
J100 14V 1.4W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
33 | ||
| 83119-97202 |
J100 TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-97207 |
J100 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-97206 |
J100..P 14V 3.4W ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-87403 |
J100..P 14V 1.4W ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-87205 |
J100 14V 1.4W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
33 | ||
| 83119-97202 |
J100 TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-97207 |
J100 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83119-97206 |
J100..P 14V 3.4W ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| Common parts | ||||
| 83193-87203 | ||||
| 83193-87401 | ||||
| 83193-87402 | ||||
| 83193-87501 | ||||
| 83193-87701 | ||||
| 83194-87502 | ||||
| 83195-87502 | ||||
