J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

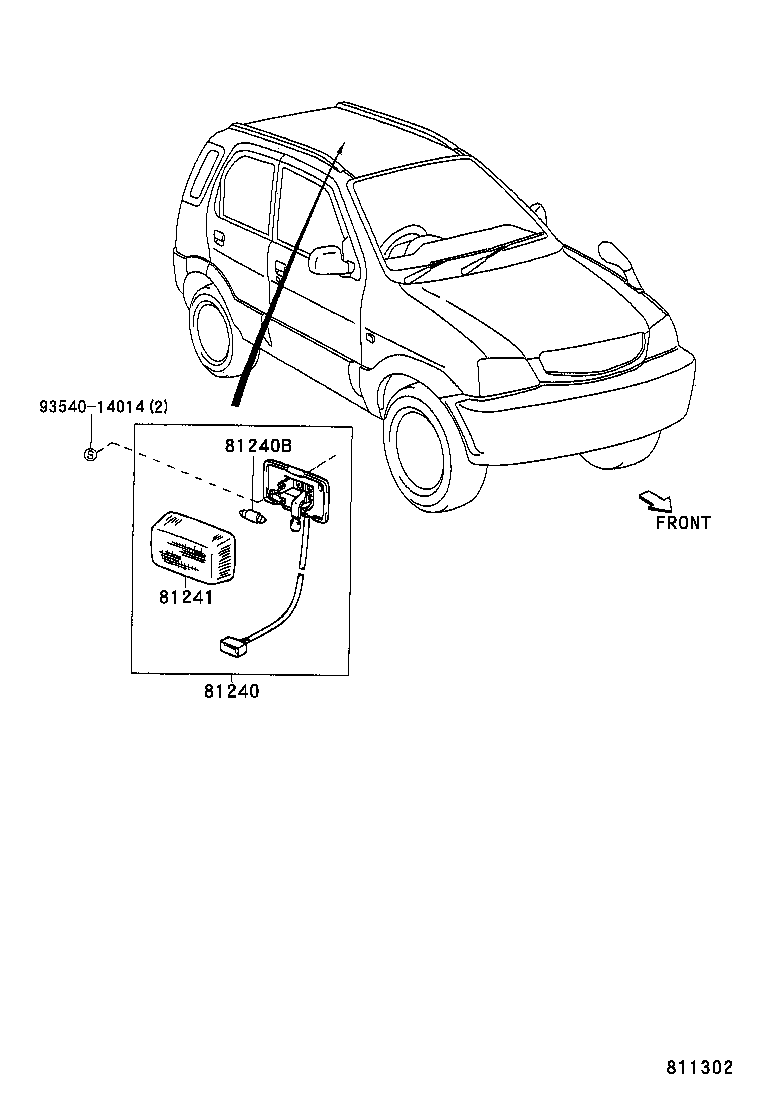

ILLUST NO. 1 OF 2(9905- )

Click highlighted areas on diagram

diagram 81240 81240B 81241 9354014014
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81330-87403

J10#,122

 1
81240B - BULB, ROOM LAMP, NO.1
90049-51007

J10#,122

12V 5W

 1
81241 - LENS, ROOM LAMP, NO.1
87814-87803

J10#,122

 1
Common parts
93540-14014

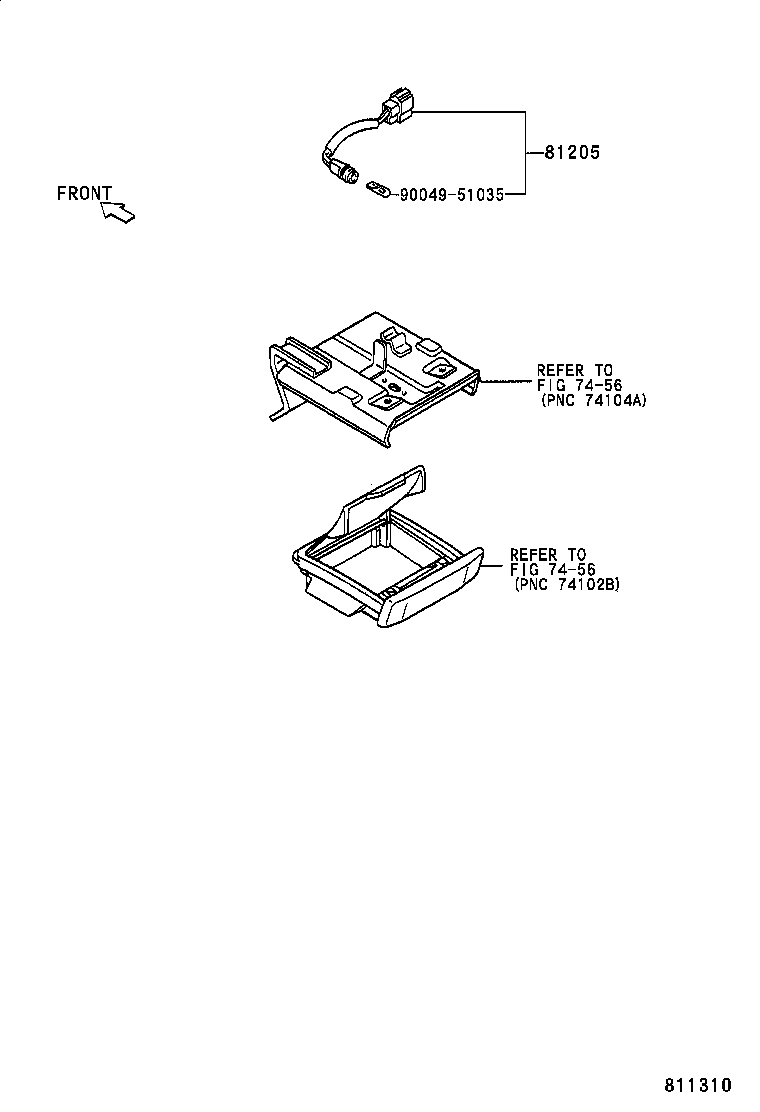

ILLUST NO. 2 OF 2(9905- )

Click highlighted areas on diagram

diagram 7456 7456 81205 9004951035
Part # Description Qty Price
81205 - LAMP SUB-ASSY, ASH RECEPTACLE
81205-87701

J10#,122

 1
Common parts
90049-51035
Linked diagrams
7456
