J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0005)

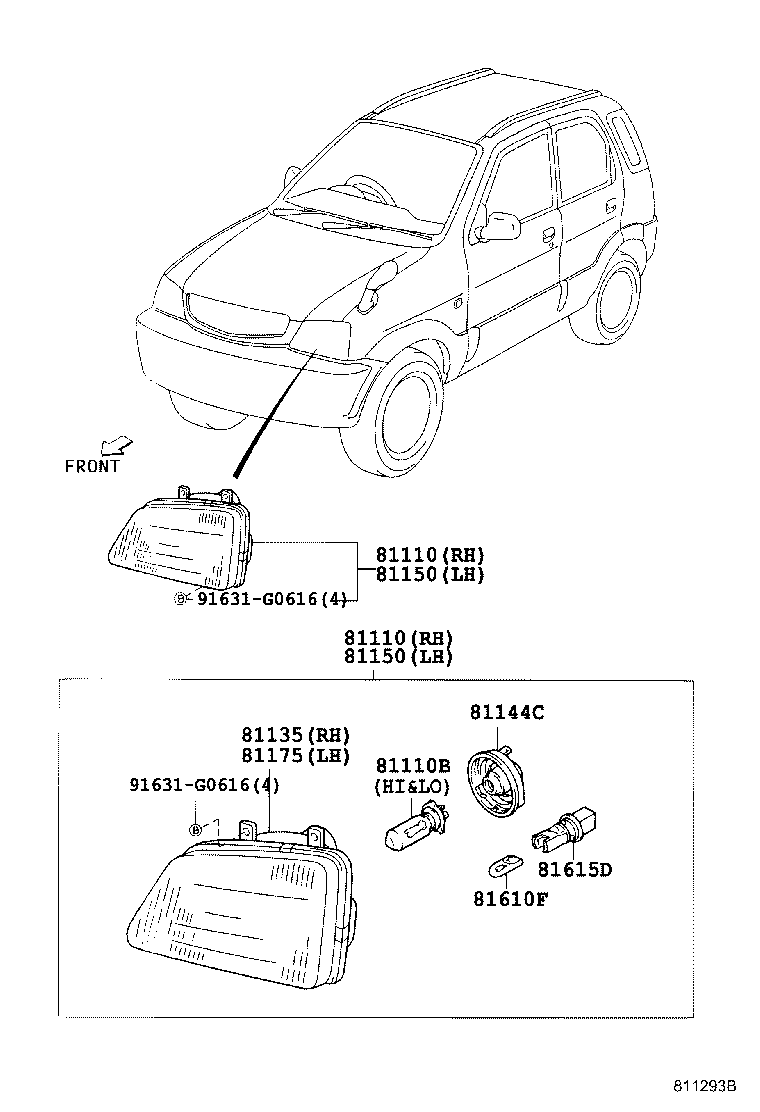

Click highlighted areas on diagram

diagram 81110 81110 81110B 81135 81144C 81150 81150 81175 81610F 81615D 91631G0616 91631G0616
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-87410

J100

 1
81110 - HEADLAMP ASSY, RH
81110-87410

J100

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90049-51088

J100

12V 60/55W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81105-87401

J100

 1
81144C - COVER, HEADLAMP SOCKET
81139-87401

J100

 2
81150 - HEADLAMP ASSY, LH
81150-87410

J100

 1
81150 - HEADLAMP ASSY, LH
81150-87410

J100

 1
81175 - UNIT ASSY, HEADLAMP, LH
81106-87401

J100

 1
81610F - BULB(FOR CLEARANCE LAMP)
90981-11013

J10#,122

12V 5W T10

 2
81615D - SOCKET, CLEARANCE LAMP
81125-87401

J10#,122

 2
Common parts
91631-G0616
