J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )

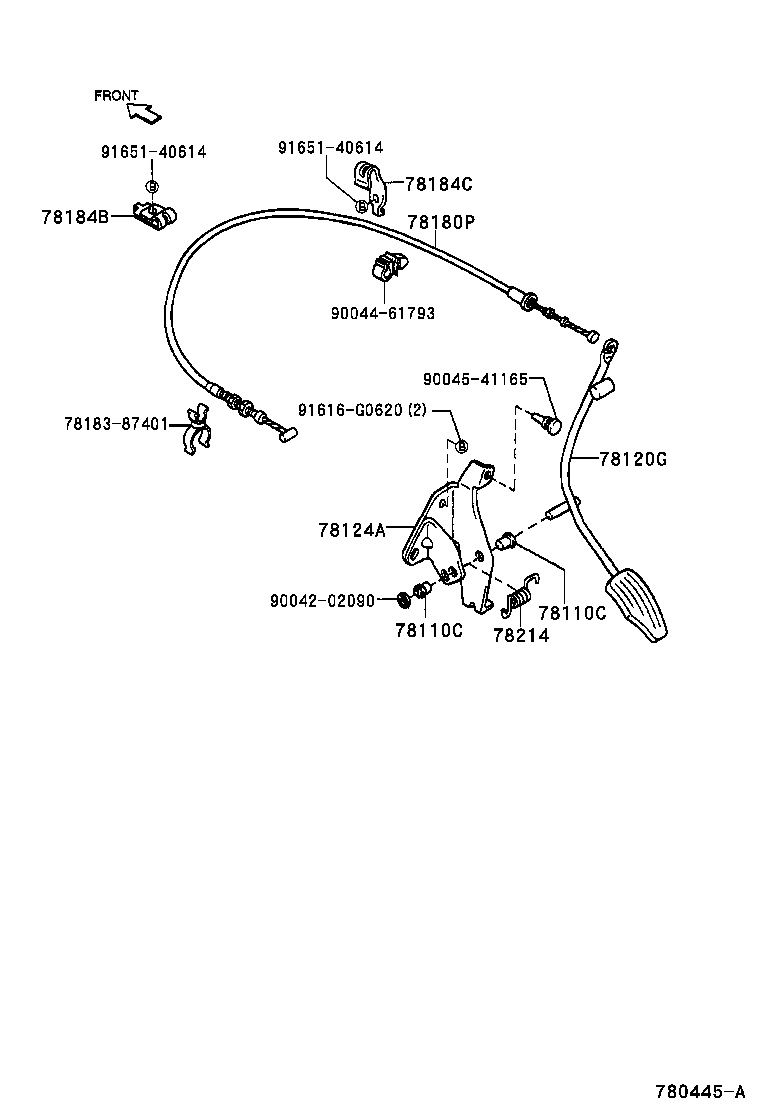

Click highlighted areas on diagram

diagram 78110C 78110C 78120G 78124A 78180P 7818387401 78184B 78184C 78214 9004202090 9004461793 9004541165 91616G0620 9165140614 9165140614
Part # Description Qty Price
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90043-86080

J10#,122

 2
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90043-86080

J10#,122

 2
78120G - ROD ASSY, ACCELERATOR PEDAL
78101-87401

J100

 1
78124A - BRACKET, ACCELERATOR PEDAL ROD
78124-87401

J100

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-87402

J100

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-87402

J10#,122

 1
78184C - BRACKET, ACCELERATOR CONTROL CABLE
78184-87401

J10#,122

 1
78214 - SPRING, ACCELERATOR LINK ROD RETURN
78214-87402

J100..4AT

 1
Common parts
78183-87401
90042-02090
90044-61793
90045-41165
91616-G0620
91651-40614
