J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

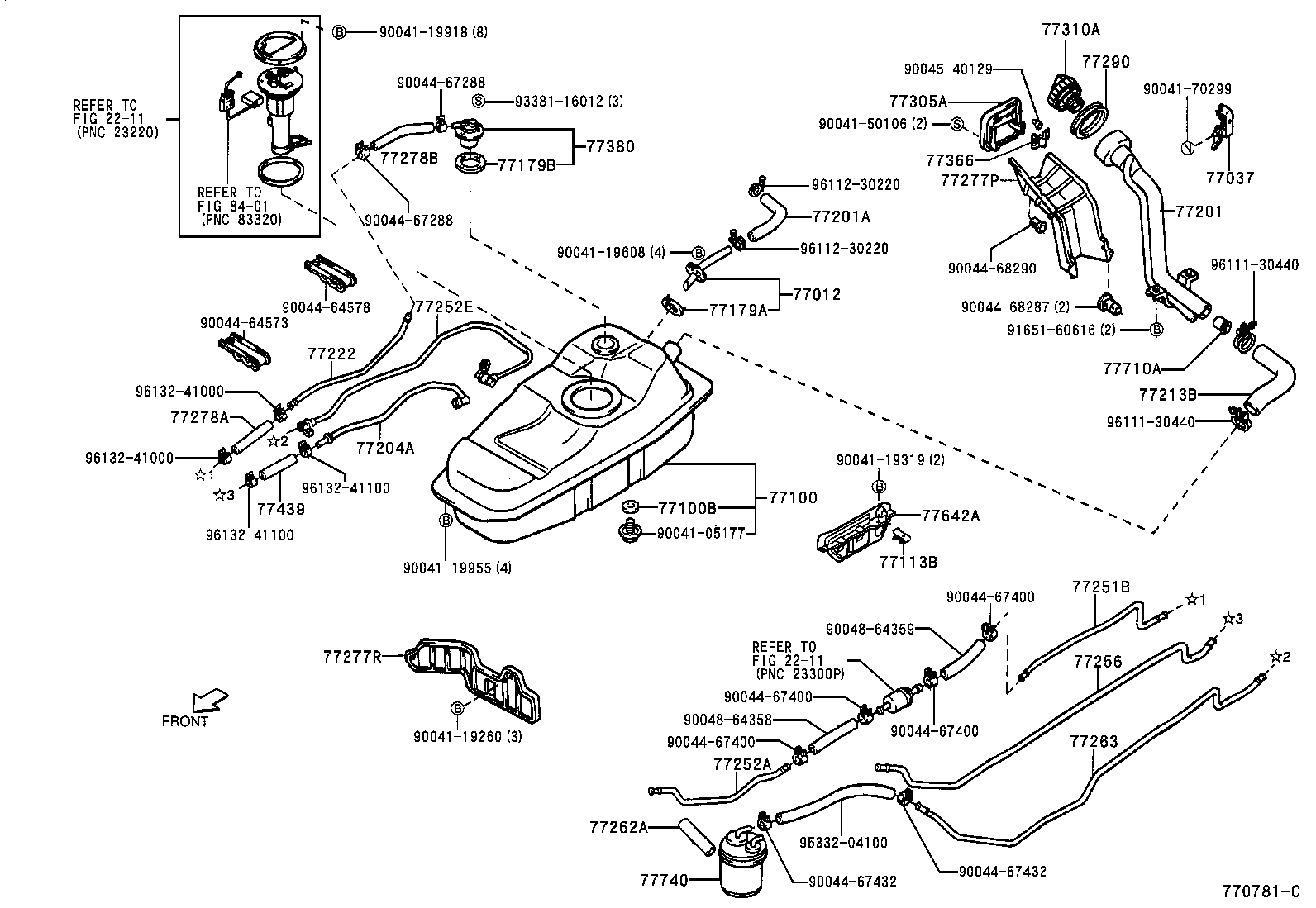

ILLUST NO. 1 OF 2(9905-0005)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-87401 |
J10#,122 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-87501 |
J10#,122 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-87401 |
J10#,122 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90044-30291 |
J10#,122 |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-87401 |
J10#,122 |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-87401 |
J10#,122 |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-87402 |
J10#,122 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-87405 |
J10#,122 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90048-64313 |
J10#,122 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-87401 |
J100 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-87401 |
J10#,122 |
1 | ||
| 77222 - TUBE, FUEL TANK BREATHER, NO.2 | ||||
| 77222-87401 |
J10#,122 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-87401 |
J100 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-87401 |
J100 |
1 | ||
| 77252E - TUBE, FUEL MAIN, NO.2 (FOR FRONT FUEL MAIN) | ||||
| 77203-87401 |
J10#,122 |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77256-87401 |
J100 |
1 | ||
| 77262A - HOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE) | ||||
| 90044-47043 |
J10#,122 |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77263-87402 |
J100 |
1 | ||
| 77277P - PROTECTOR(FOR FUEL RETURN HOSE) | ||||
| 77277-87401 |
J10#,122 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77631-87401 |
J10#,122 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 90048-64356 |
J10#,122 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 90048-64182 |
J10#,122 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77293-87401 |
J10#,122 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-87401 |
J10#,122 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-97201 |
J10#,122 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-87203 |
J10#,122 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-87401 |
J10#,122 |
1 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 90048-64271 |
J100 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-87401 |
J10#,122 |
1 | ||
| 77710A - VALVE ASSY, FUEL TANK SOLENOID VALVE MAIN | ||||
| 77710-87401 |
J10#,122 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-87401 |
J100 |
1 | ||
| Common parts | ||||
| 90041-05177 | ||||
| 90041-19260 | ||||
| 90041-19319 | ||||
| 90041-19608 | ||||
| 90041-19918 | ||||
| 90041-19955 | ||||
| 90041-50106 | ||||
| 90041-70299 | ||||
| 90044-64573 | ||||
| 90044-64578 | ||||
| 90044-67288 | ||||
| 90044-67400 | ||||
| 90044-67432 | ||||
| 90044-68287 | ||||
| 90044-68290 | ||||
| 90045-40129 | ||||
| 90048-64358 | ||||
| 90048-64359 | ||||
| 91651-60616 | ||||
| 93381-16012 | ||||
| 95332-04100 | ||||
| 96111-30440 | ||||
| 96112-30220 | ||||
| 96132-41000 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||

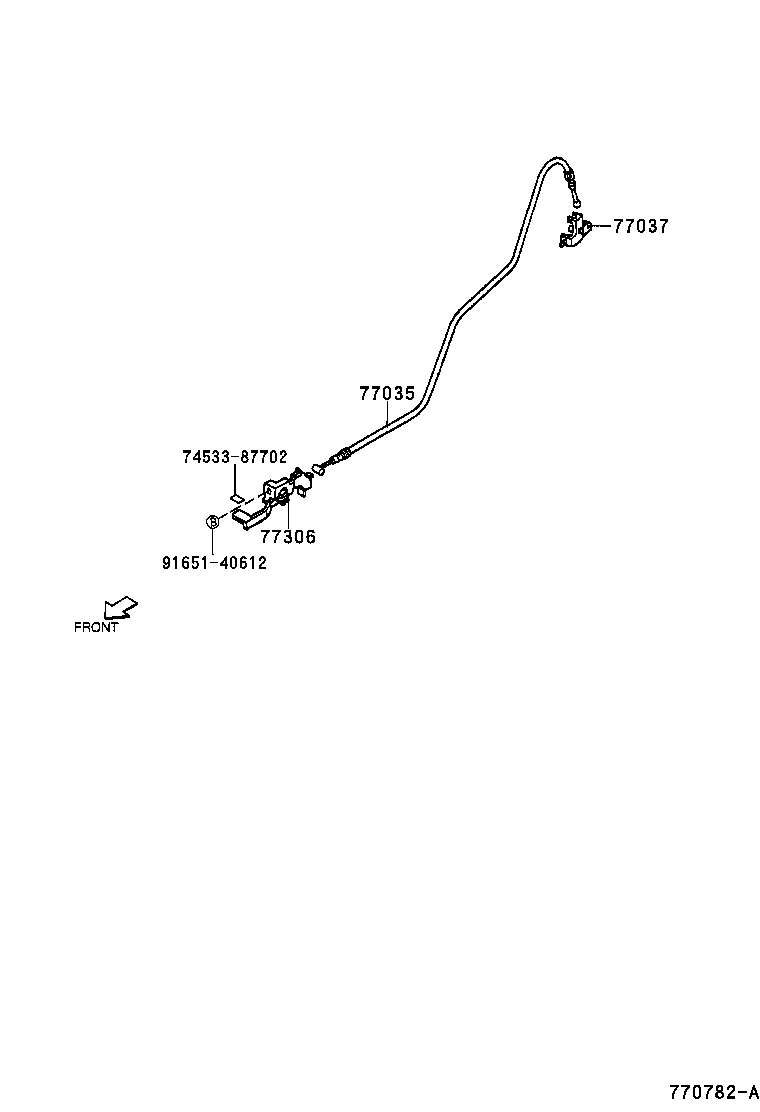

ILLUST NO. 2 OF 2(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-87401 |
J10#,122 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-87501 |
J10#,122 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-87210 |
J10#,122 |
1 | ||
| Common parts | ||||
| 74533-87702 | ||||
| 91651-40612 | ||||
