J100E-GPDE (1999)
Toyota Cami

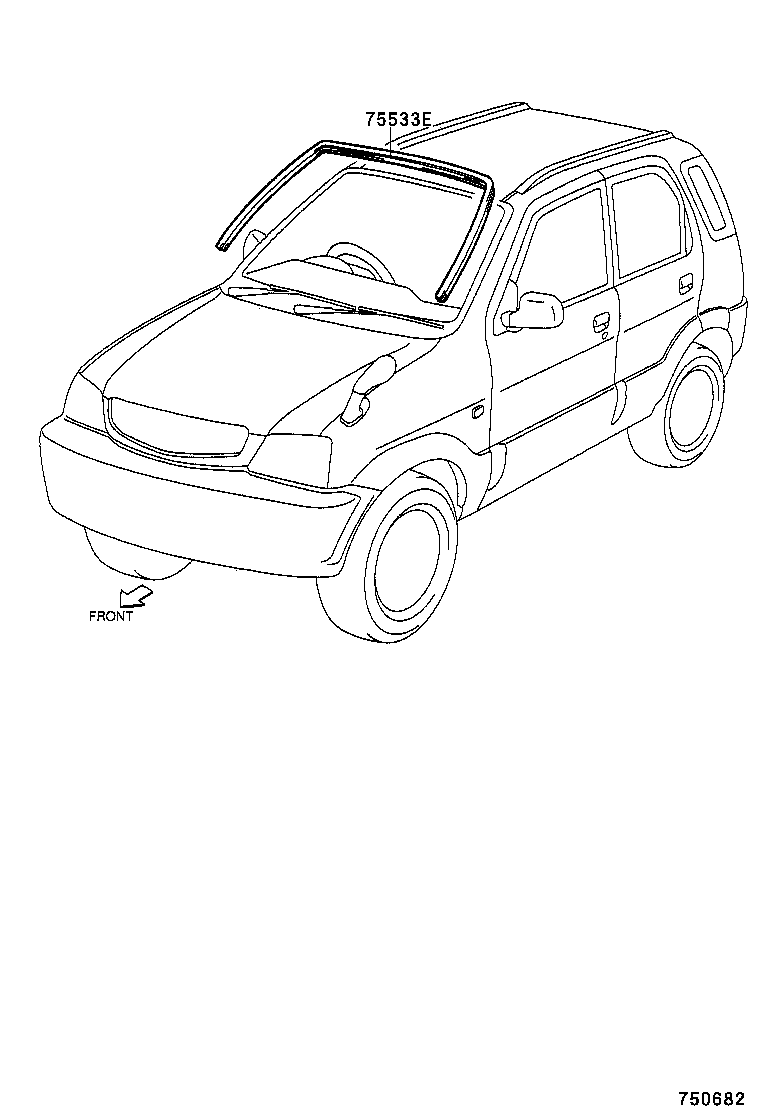

ILLUST NO. 1 OF 3(9905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75533E - MOULDING, WINDSHIELD, OUTSIDE | ||||
| 75533-87402 |
J10#,122 |
1 | ||
| 75533-87401 |
J100 |
1 | ||

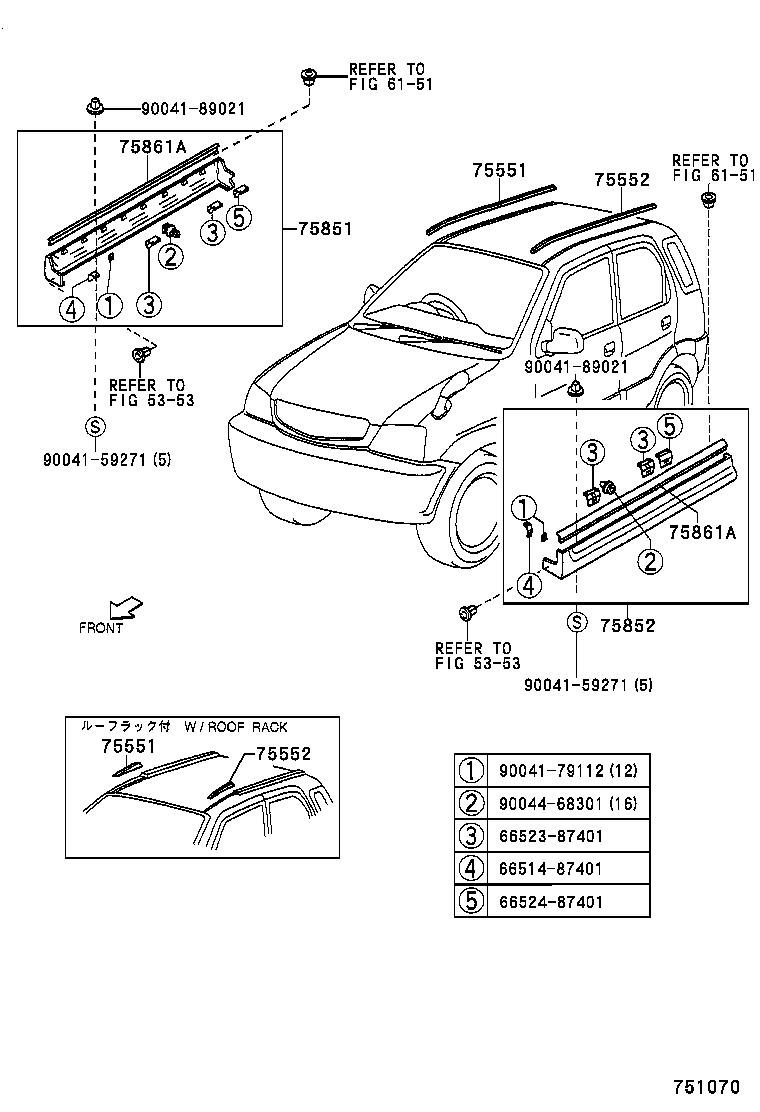

ILLUST NO. 2 OF 3(9905-9910)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-87404 |
J100;J102,122..Q ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-87404 |
J100;J102,122..Q ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-87404 |
J100;J102,122..Q ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-87404 |
J100;J102,122..Q ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| Common parts | ||||
| 66514-87401 | ||||
| 66523-87401 | ||||
| 66524-87401 | ||||
| 90041-59271 | ||||
| 90041-79112 | ||||
| 90041-89021 | ||||
| 90044-68301 | ||||
| Linked diagrams | ||||
| 5353 | ||||
| 6151 | ||||
ILLUST NO. 3 OF 3(9905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851G - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-8740208 |
J100 WHITE,W19 |
1 | ||
| 53851-8740204 |
J100 MARINE BLUE M.M.,B44 |
1 | ||
| 53851-8740201 |
J10#,122 BLACK,6A5 |
1 | ||
| 53851-8740202 |
J100 PURE RED,R19 |
1 | ||
| 53851-8740203 |
J10#,122 SILVER M.,S07 |
1 | ||
| 53852D - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-8740204 |
J100 MARINE BLUE M.M.,B44 |
1 | ||
| 53852-8740208 |
J100 WHITE,W19 |
1 | ||
| 53852-8740201 |
J10#,122 BLACK,6A5 |
1 | ||
| 53852-8740202 |
J100 PURE RED,R19 |
1 | ||
| 53852-8740203 |
J10#,122 SILVER M.,S07 |
1 | ||
| 61783F - PAD, REAR WHEEL OPENING EXTENSION NO.1 | ||||
| 61783-8740204 |
J100 MARINE BLUE M.M.,B44,右側 |
1 | ||
| 61784-8740201 |
J10#,122 BLACK,6A5,左側 |
1 | ||
| 61784-8740203 |
J10#,122 SILVER M.,S07,左側 |
1 | ||
| 61784-8740204 |
J100 MARINE BLUE M.M.,B44,左側 |
1 | ||
| 61783-8740203 |
J10#,122 SILVER M.,S07,右側 |
1 | ||
| 61783-8740201 |
J10#,122 BLACK,6A5,右側 |
1 | ||
| 61784-8740208 |
J100 WHITE,W19,左側 |
1 | ||
| 61783-8740202 |
J100 PURE RED,R19,右側 |
1 | ||
| 61783-8740208 |
J100 WHITE,W19,右側 |
1 | ||
| 61784-8740202 |
J100 PURE RED,R19,左側 |
1 | ||
| 61783F - PAD, REAR WHEEL OPENING EXTENSION NO.1 | ||||
| 61783-8740204 |
J100 MARINE BLUE M.M.,B44,右側 |
1 | ||
| 61784-8740201 |
J10#,122 BLACK,6A5,左側 |
1 | ||
| 61784-8740203 |
J10#,122 SILVER M.,S07,左側 |
1 | ||
| 61784-8740204 |
J100 MARINE BLUE M.M.,B44,左側 |
1 | ||
| 61783-8740203 |
J10#,122 SILVER M.,S07,右側 |
1 | ||
| 61783-8740201 |
J10#,122 BLACK,6A5,右側 |
1 | ||
| 61784-8740208 |
J100 WHITE,W19,左側 |
1 | ||
| 61783-8740202 |
J100 PURE RED,R19,右側 |
1 | ||
| 61783-8740208 |
J100 WHITE,W19,右側 |
1 | ||
| 61784-8740202 |
J100 PURE RED,R19,左側 |
1 | ||
| 61785G - PAD, REAR WHEEL OPENING EXTENSION, NO.3 | ||||
| 61785-8740208 |
J100 WHITE,W19 |
1 | ||
| 61785-8740204 |
J100 MARINE BLUE M.M.,B44 |
1 | ||
| 61785-8740201 |
J10#,122 BLACK,6A5 |
1 | ||
| 61785-8740202 |
J100 PURE RED,R19 |
1 | ||
| 61785-8740203 |
J10#,122 SILVER M.,S07 |
1 | ||
| 61788D - PAD, REAR WHEEL OPENING EXTENSION PAD NO.4 | ||||
| 61788-8740204 |
J100 MARINE BLUE M.M.,B44 |
1 | ||
| 61788-8740202 |
J100 PURE RED,R19 |
1 | ||
| 61788-8740208 |
J100 WHITE,W19 |
1 | ||
| 61788-8740201 |
J10#,122 BLACK,6A5 |
1 | ||
| 61788-8740203 |
J10#,122 SILVER M.,S07 |
1 | ||
| 75071A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 75735-8740301 |
J100 BLACK,6A5 |
1 | ||
| 75735-8740308 |
J100 WHITE,W19 |
1 | ||
| 75735-8740303 |
J100 SILVER M.,S07 |
1 | ||
| 75735-8740302 |
J100 PURE RED,R19 |
1 | ||
| 75735-8740304 |
J100 MARINE BLUE M.M.,B44 |
1 | ||
| 75072A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH | ||||
| 75736-8740304 |
J100 MARINE BLUE M.M.,B44 |
1 | ||
| 75736-8740303 |
J100 SILVER M.,S07 |
1 | ||
| 75736-8740302 |
J100 PURE RED,R19 |
1 | ||
| 75736-8740308 |
J100 WHITE,W19 |
1 | ||
| 75736-8740301 |
J100 BLACK,6A5 |
1 | ||
| 75075 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH | ||||
| 75745-8740304 |
J100 MARINE BLUE M.M.,B44 |
1 | ||
| 75745-8740301 |
J100 BLACK,6A5 |
1 | ||
| 75745-8740308 |
J100 WHITE,W19 |
1 | ||
| 75745-8740303 |
J100 SILVER M.,S07 |
1 | ||
| 75745-8740302 |
J100 PURE RED,R19 |
1 | ||
| 75075A - CLIP(FOR REAR DOOR OUTSIDE MOULDING) | ||||
| 90044-67395 |
J10#,122 |
33 | ||
| 75075A - CLIP(FOR REAR DOOR OUTSIDE MOULDING) | ||||
| 90044-67395 |
J10#,122 |
33 | ||
| 75075A - CLIP(FOR REAR DOOR OUTSIDE MOULDING) | ||||
| 90044-67395 |
J10#,122 |
33 | ||
| 75075A - CLIP(FOR REAR DOOR OUTSIDE MOULDING) | ||||
| 90044-67395 |
J10#,122 |
33 | ||
| 75075A - CLIP(FOR REAR DOOR OUTSIDE MOULDING) | ||||
| 90044-67395 |
J10#,122 |
33 | ||
| 75075A - CLIP(FOR REAR DOOR OUTSIDE MOULDING) | ||||
| 90044-67395 |
J10#,122 |
33 | ||
| 75075A - CLIP(FOR REAR DOOR OUTSIDE MOULDING) | ||||
| 90044-67395 |
J10#,122 |
33 | ||
| 75075A - CLIP(FOR REAR DOOR OUTSIDE MOULDING) | ||||
| 90044-67395 |
J10#,122 |
33 | ||
| 75076 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH | ||||
| 75746-8740302 |
J100 PURE RED,R19 |
1 | ||
| 75746-8740303 |
J100 SILVER M.,S07 |
1 | ||
| 75746-8740301 |
J100 BLACK,6A5 |
1 | ||
| 75746-8740304 |
J100 MARINE BLUE M.M.,B44 |
1 | ||
| 75746-8740308 |
J100 WHITE,W19 |
1 | ||
| 75085A - MOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, RH | ||||
| 75621-8740301 |
J100 BLACK,6A5 |
1 | ||
| 75621-8740304 |
J100 MARINE BLUE M.M.,B44 |
1 | ||
| 75621-8740308 |
J100 WHITE,W19 |
1 | ||
| 75621-8740303 |
J100 SILVER M.,S07 |
1 | ||
| 75621-8740302 |
J100 PURE RED,R19 |
1 | ||
| 75086 - MOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, LH | ||||
| 75622-8740301 |
J100 BLACK,6A5 |
1 | ||
| 75622-8740304 |
J100 MARINE BLUE M.M.,B44 |
1 | ||
| 75622-8740303 |
J100 SILVER M.,S07 |
1 | ||
| 75622-8740302 |
J100 PURE RED,R19 |
1 | ||
| 75622-8740308 |
J100 WHITE,W19 |
1 | ||
| 75393 - RETAINER, OUTSIDE MOULDING, NO.2 | ||||
| 75393-87401 |
J10#,122 |
1 | ||
| 75394 - RETAINER, OUTSIDE MOULDING, NO.3 | ||||
| 75394-87402 |
J10#,122 |
1 | ||
| 75396 - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-87101 |
J10#,122 |
2 | ||
| 75396 - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-87101 |
J10#,122 |
2 | ||
| 75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH | ||||
| 75873-8740303 |
J100 SILVER M.,S07 |
1 | ||
| 75873-8740301 |
J100 BLACK,6A5 |
1 | ||
| 75873-8740304 |
J100 MARINE BLUE M.M.,B44 |
1 | ||
| 75873-8740308 |
J100 WHITE,W19 |
1 | ||
| 75873-8740302 |
J100 PURE RED,R19 |
1 | ||
| 75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH | ||||
| 75874-8740303 |
J100 SILVER M.,S07 |
1 | ||
| 75874-8740308 |
J100 WHITE,W19 |
1 | ||
| 75874-8740304 |
J100 MARINE BLUE M.M.,B44 |
1 | ||
| 75874-8740302 |
J100 PURE RED,R19 |
1 | ||
| 75874-8740301 |
J100 BLACK,6A5 |
1 | ||
| Common parts | ||||
| 90041-59306 | ||||
| 90041-59365 | ||||
| 90041-68043 | ||||
| 90041-89030 | ||||
| 90044-68167 | ||||
| 90044-68293 | ||||
| 93540-55012 | ||||
| 93560-55012 | ||||

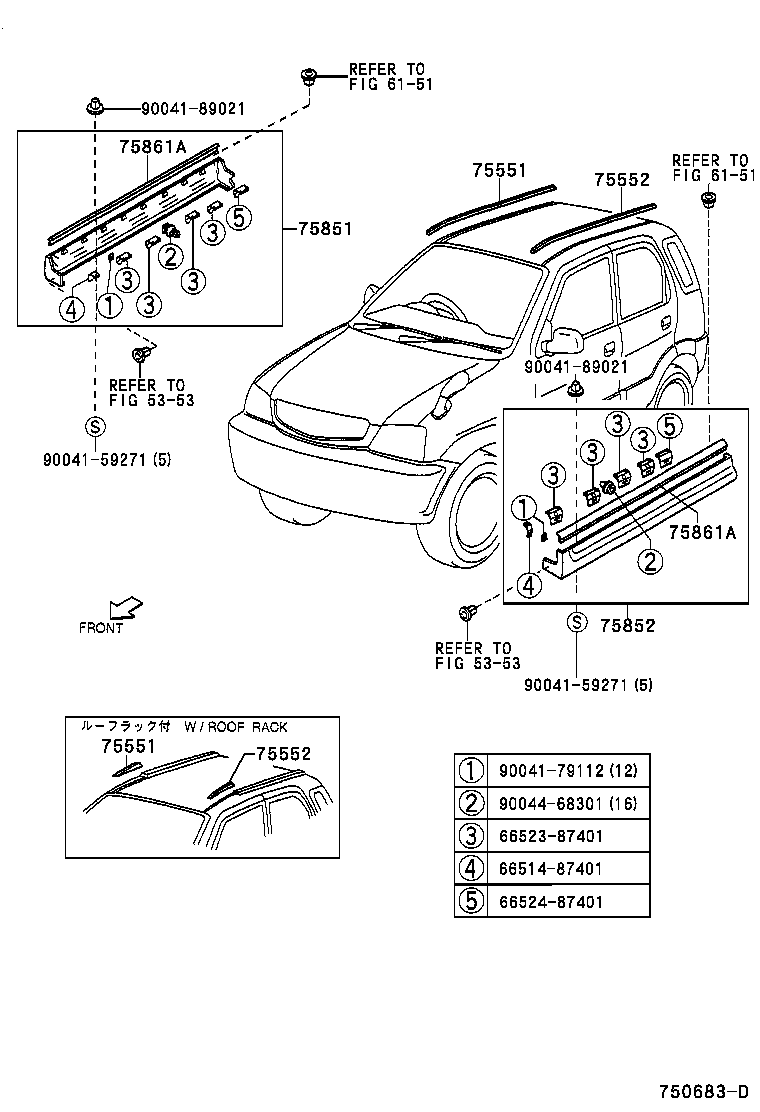

ILLUST NO. 2 OF 3(9911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-87404 |
J100;J102,122..Q ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-87404 |
J100;J102,122..Q ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-87404 |
J100;J102,122..Q ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-87404 |
J100;J102,122..Q ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| Common parts | ||||
| 66514-87401 | ||||
| 66523-87401 | ||||
| 66524-87401 | ||||
| 90041-59271 | ||||
| 90041-79112 | ||||
| 90041-89021 | ||||
| 90044-68301 | ||||
| Linked diagrams | ||||
| 5353 | ||||
| 6151 | ||||
