J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )

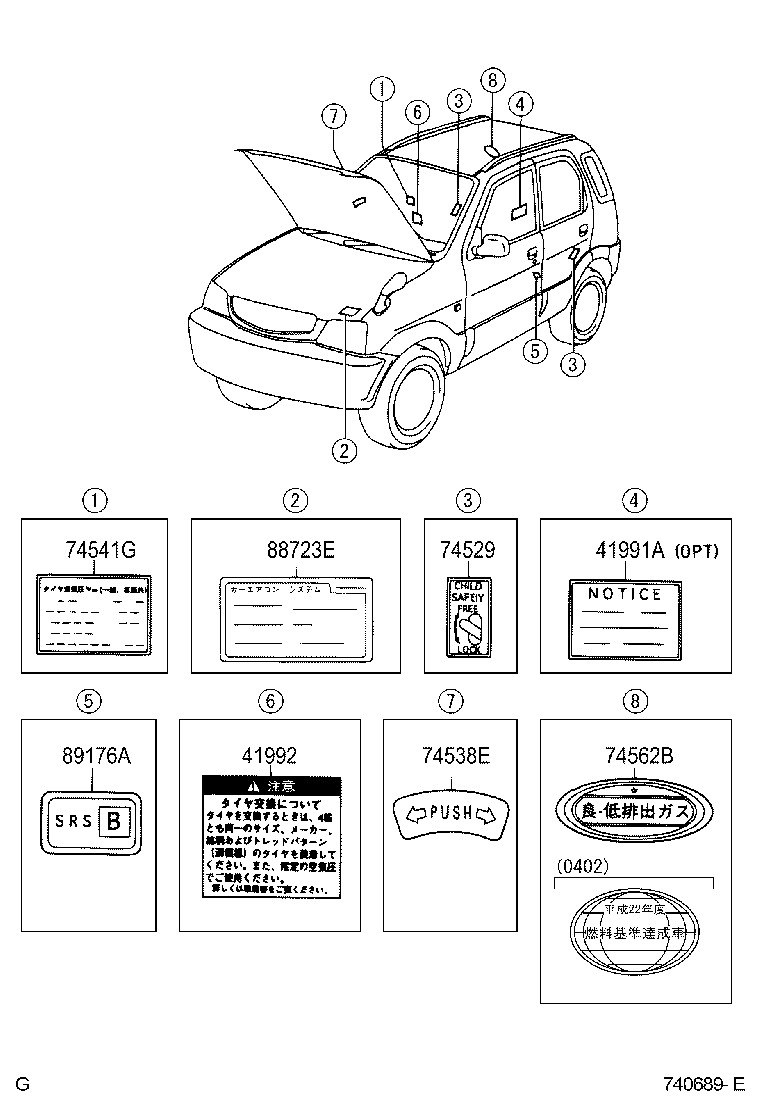

Click highlighted areas on diagram

diagram 41991A 41992 74529 74538E 74541G 74562B 88723E 89176A
Part # Description Qty Price
41991A - PLATE, CAUTION
41991-87602

J122..Q;J10#..EFI

 1
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
74552-87704

J10#,122

 2
74541G - PLATE, SAFETY CAUTION
42661-87401

J100

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-87401

J10#,122

 1
