J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )

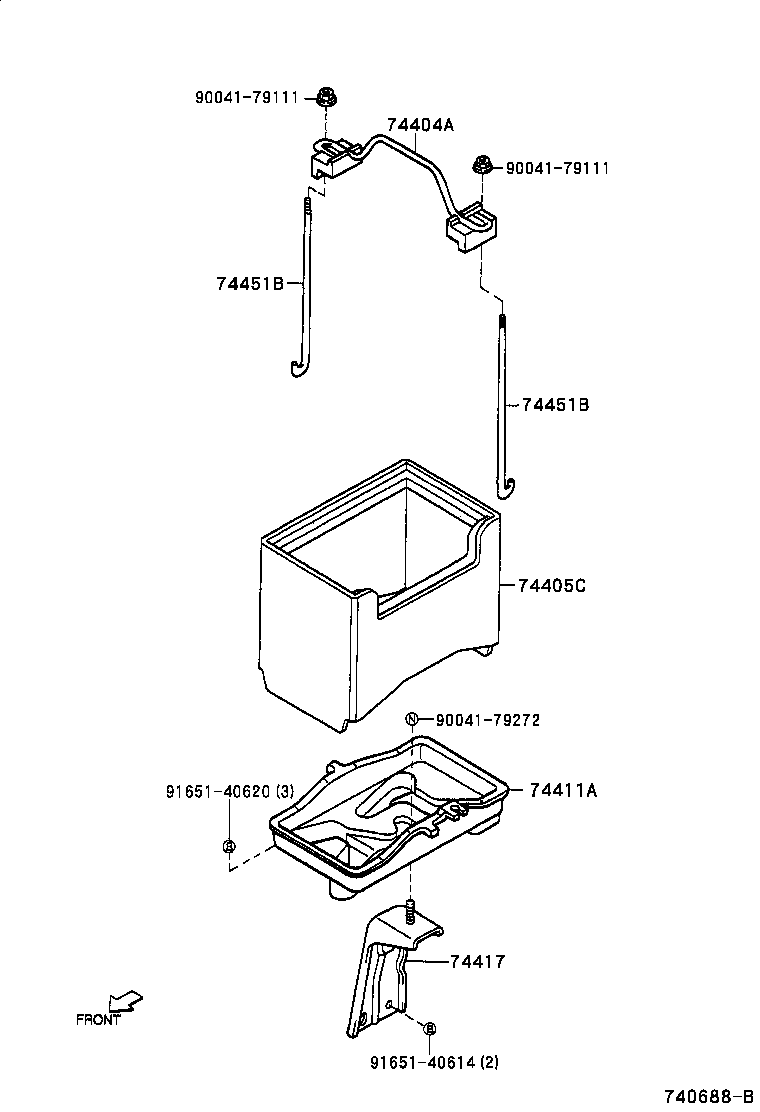

Click highlighted areas on diagram

diagram 74404A 74405C 74411A 74417 74451B 74451B 9004179111 9004179111 9004179272 9165140614 9165140620
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-87202

J10#,122

 1
74411A - TRAY, BATTERY
74411-87401

J100

 1
74417 - BRACKET, BATTERY CARRIER
74417-87401

J10#,122

 1
74451B - BOLT, BATTERY CLAMP
74451-87703

J10#,122

 2
74451B - BOLT, BATTERY CLAMP
74451-87703

J10#,122

 2
Common parts
90041-79111
90041-79272
91651-40614
91651-40620
