J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )

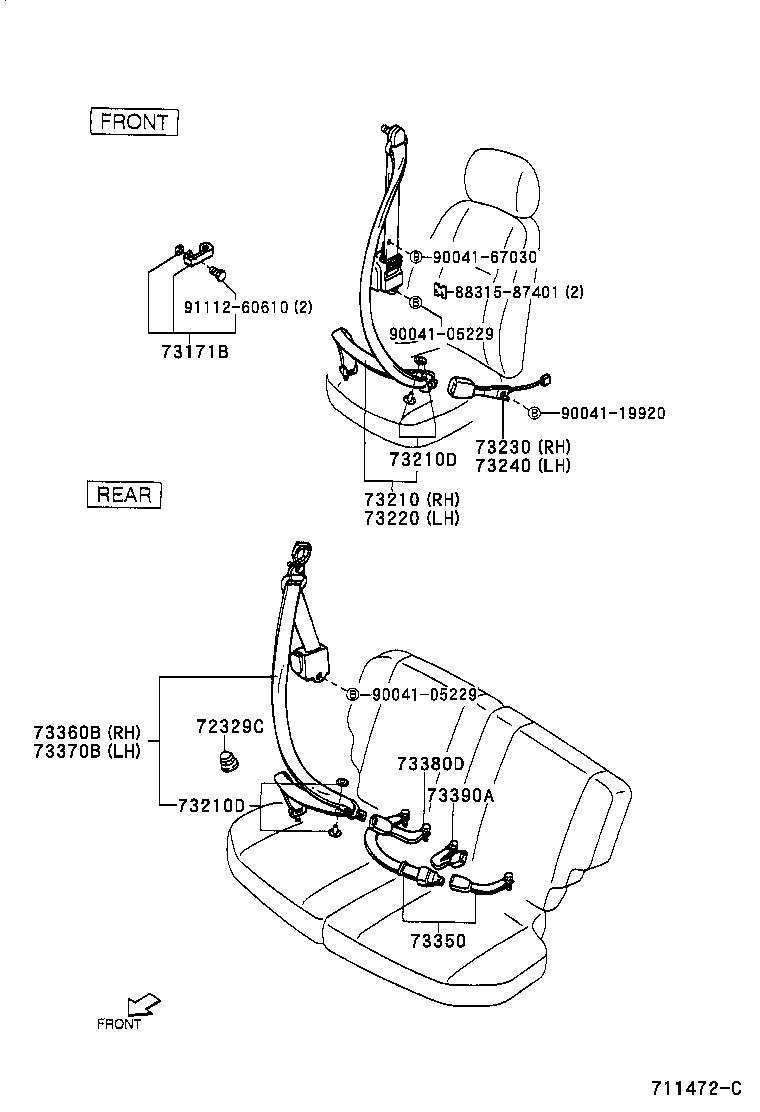

Click highlighted areas on diagram

diagram 72329C 73171B 73210 73210D 73210D 73220 73230 73240 73350 73360B 73370B 73380D 73390A 8831587401 9004105229 9004105229 9004119920 9004167030 9111260610
Part # Description Qty Price
72329C - COVER,SEAT ADJUSUTER BOLT
72329-87001

J10#,122

 2
73171B - GUIDE, FRONT SEAT SHOULDER BELT
73101-87402

J10#,122

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-8740903

J100

GRAY,TRIMS

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-8740403

J100

GRAY,TRIMS

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-8740603

J100

GRAY,TRIMS

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-8740703

J100

GRAY,TRIMS

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-8740103

J100

GRAY,TRIMS

 1
73360B - BELT ASSY, REAR SEAT, OUTER
73360-8740303

J100

GRAY,TRIMS

 1
73370B - BELT ASSY, REAR SEAT, OUTER
73370-8740303

J100

GRAY,TRIMS

 1
73380D - BELT ASSY, REAR SEAT, INNER
73380-8740103

J100

GRAY,TRIMS

 1
73390A - BELT ASSY, REAR SEAT, INNER
73380-8740103

J100

GRAY,TRIMS

 1
Common parts
88315-87401
90041-05229
90041-19920
90041-67030
91112-60610
