J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905- )

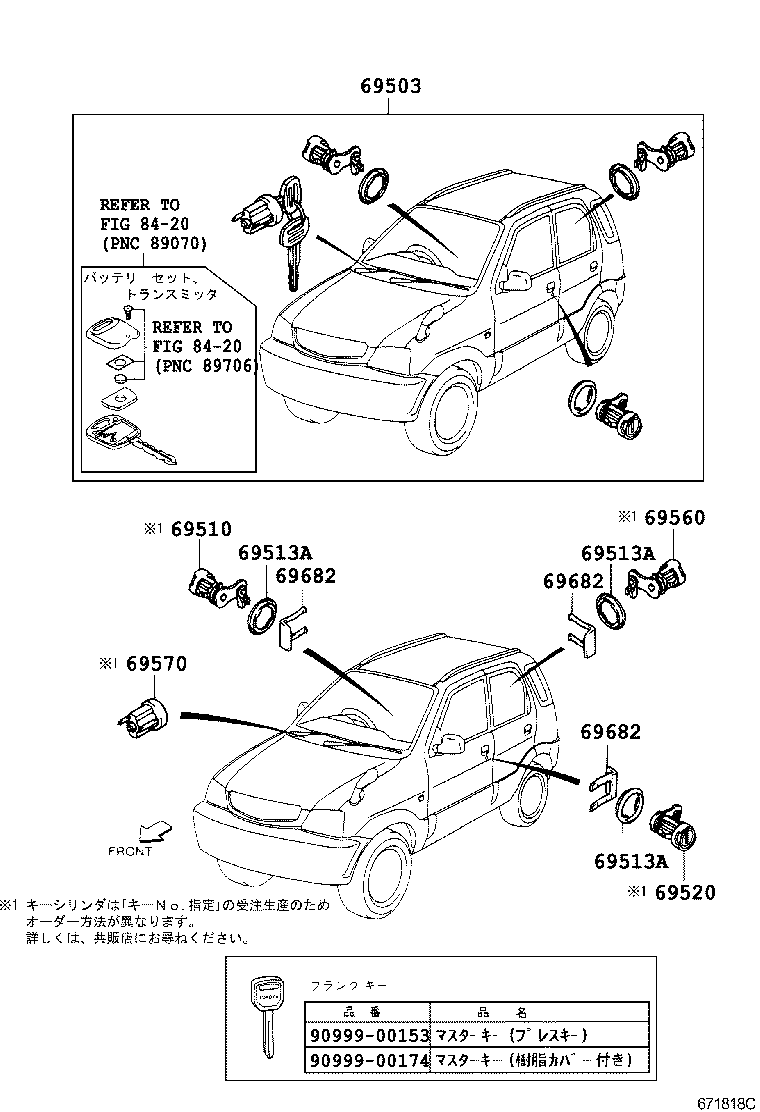

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69503-87419 |
J10#,122 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-87703 |
J10#,122 |
1 | ||
| 69513A - PAD, DOOR CYLINDER | ||||
| 69513-87201 |
J10#,122 |
3 | ||
| 69513A - PAD, DOOR CYLINDER | ||||
| 69513-87201 |
J10#,122 |
3 | ||
| 69513A - PAD, DOOR CYLINDER | ||||
| 69513-87201 |
J10#,122 |
3 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-87703 |
J10#,122 |
1 | ||
| 69560 - CYLINDER ASSY, BACK DOOR LOCK | ||||
| 69510-87703 |
J10#,122 |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-87710 |
J10#,122 |
1 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69682-87201 |
J100 |
3 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69682-87201 |
J100 |
3 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69682-87201 |
J100 |
3 | ||
| Common parts | ||||
| 90999-00153 | ||||
| 90999-00174 | ||||
| Linked diagrams | ||||
| 8420 | ||||
