J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

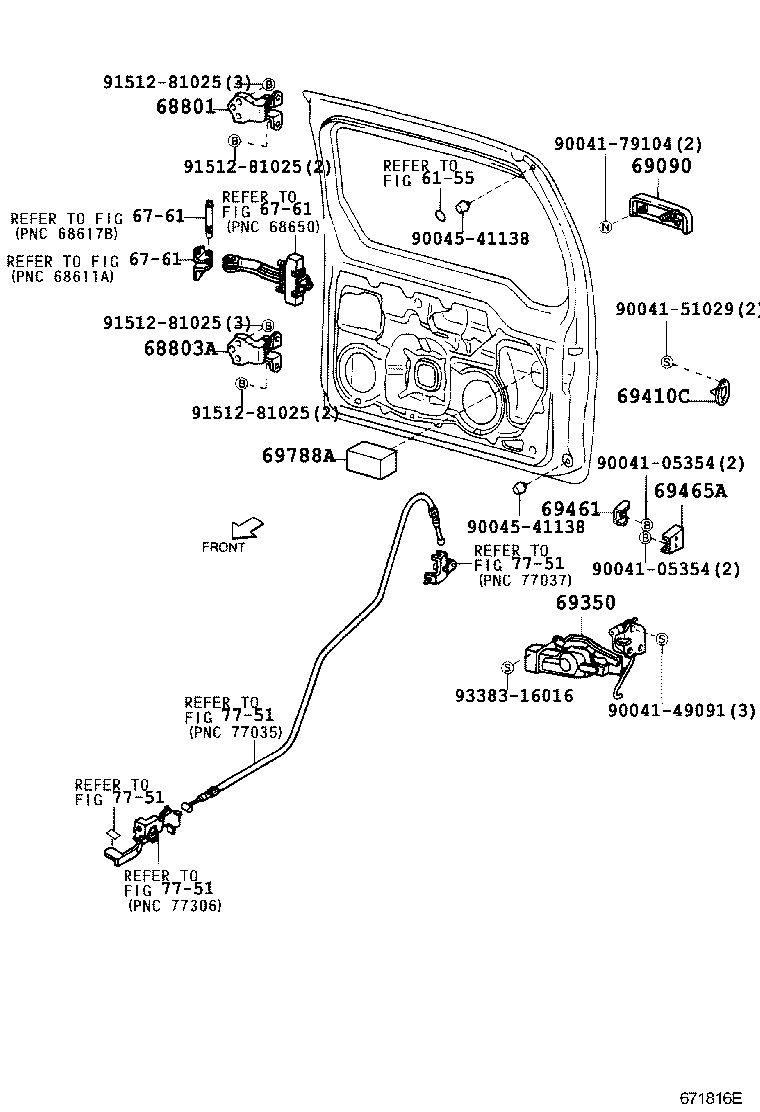

ILLUST NO. 1 OF 2(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH | ||||
| 68810-87401 |
J10#,122 |
1 | ||
| 68803A - HINGE SUB-ASSY, BACK DOOR, LOWER RH | ||||
| 68810-87401 |
J10#,122 |
1 | ||
| 69090 - HANDLE ASSY, BACK DOOR, OUTSIDE | ||||
| 69210-87214 |
J10#,122..EFI |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69110-87401 |
J10#,122 |
1 | ||
| 69410C - PLATE ASSY, BACK DOOR LOCK STRIKER | ||||
| 69410-87701 |
J10#,122 |
1 | ||
| 69461 - STOPPER, BACK DOOR SIDE MALE, RH | ||||
| 69461-87401 |
J10#,122 |
1 | ||
| 69465A - STOPPER, BACK DOOR SIDE FEMALE | ||||
| 69465-87401 |
J10#,122 |
1 | ||
| 69788A - CUSHION, BACK DOOR LOCK LOCKING LINK | ||||
| 69788-87401 |
J10#,122 |
1 | ||
| Common parts | ||||
| 90041-05354 | ||||
| 90041-49091 | ||||
| 90041-51029 | ||||
| 90041-79104 | ||||
| 90045-41138 | ||||
| 91512-81025 | ||||
| 93383-16016 | ||||
| Linked diagrams | ||||
| 6155 | ||||
| 6761 | ||||
| 7751 | ||||

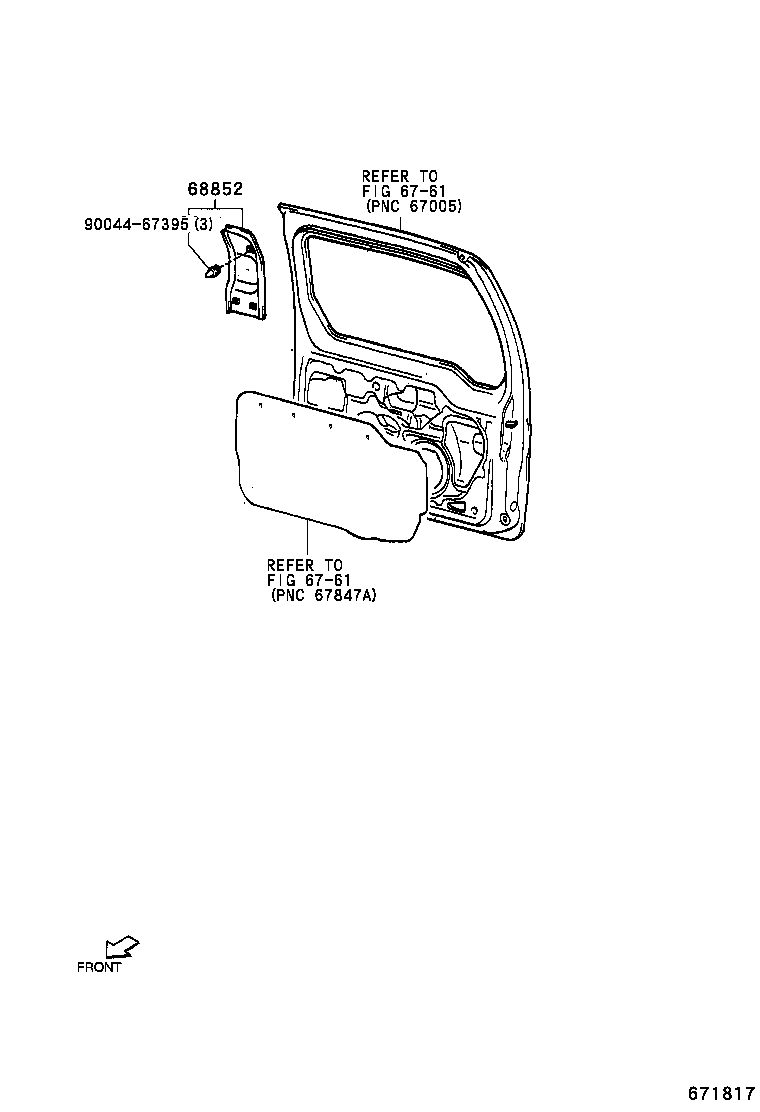

ILLUST NO. 2 OF 2(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68852 - COVER, BACK DOOR HINGE | ||||
| 68851-87401 |
J10#,122 |
1 | ||
| Common parts | ||||
| 90044-67395 | ||||
| Linked diagrams | ||||
| 6761 | ||||
