J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

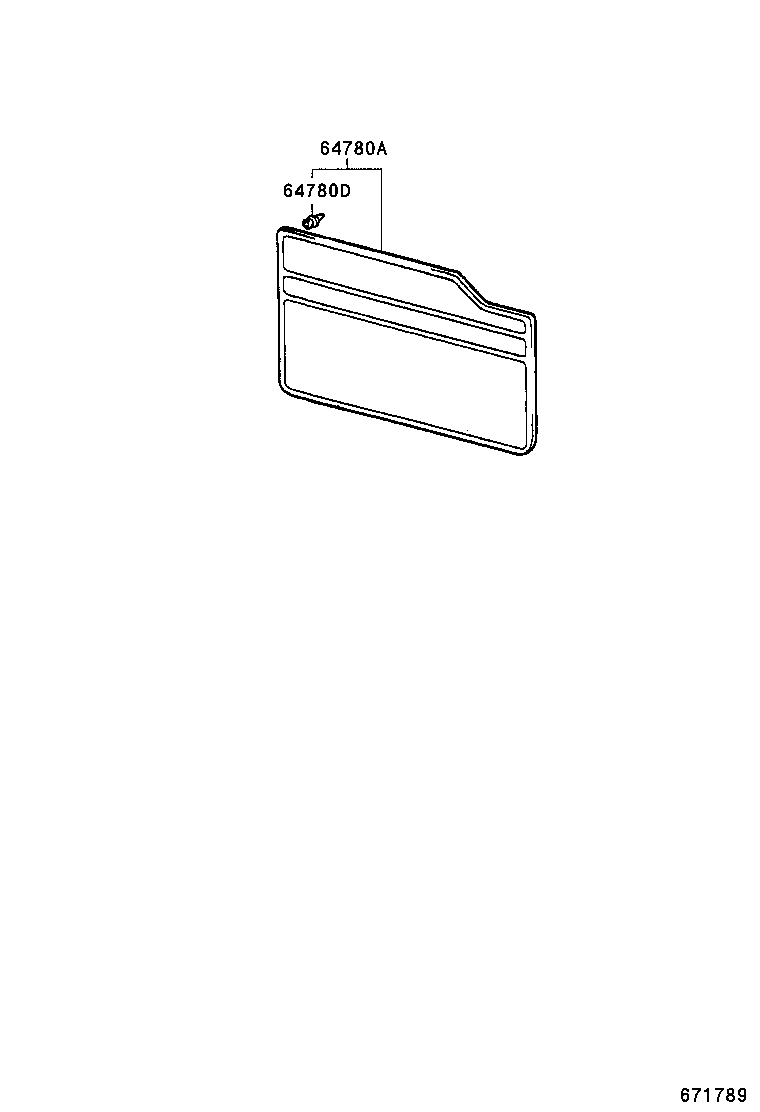

ILLUST NO. 1 OF 3(9905- )

Click highlighted areas on diagram

diagram 64780A 64780D
Part # Description Qty Price
64780A - PANEL ASSY, BACK DOOR TRIM
64780-8740103

J100

GRAY,TRIMS

 1
64780D - RETAINER(FOR BACK DOOR TRIM BOARD)
67771-87204

J10#,122

 13

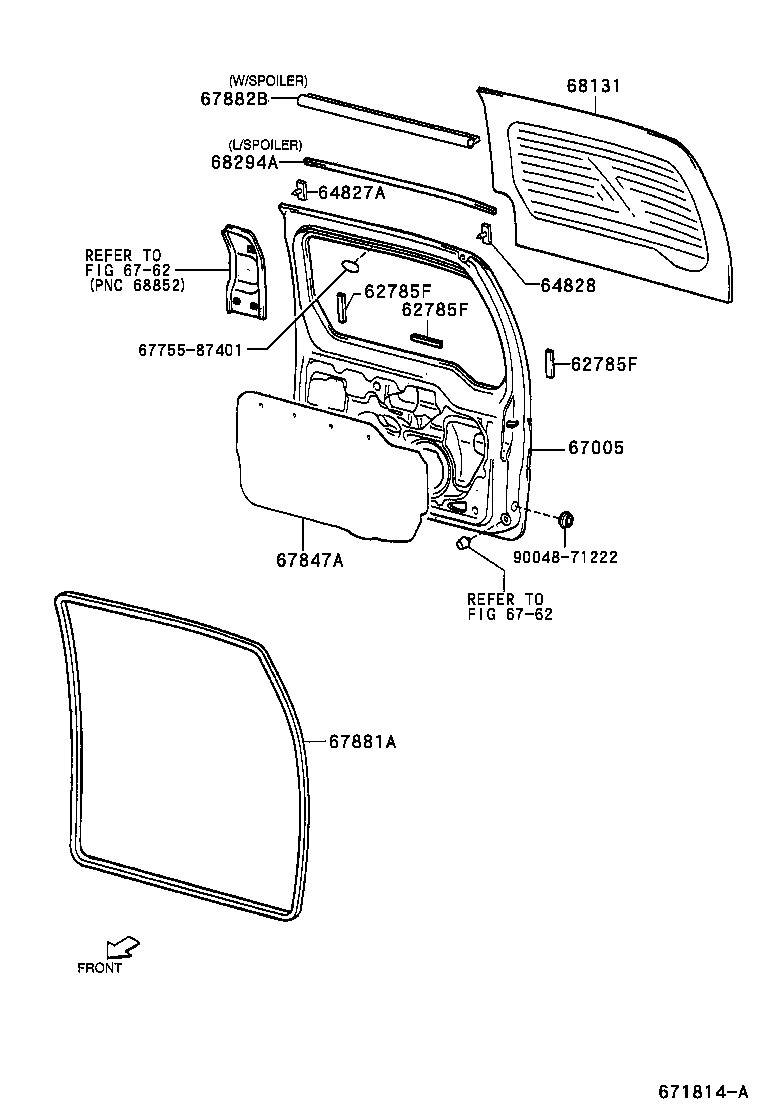

ILLUST NO. 2 OF 3(9905- )

Click highlighted areas on diagram

diagram 62785F 62785F 62785F 64827A 64828 67005 6762 6762 6775587401 67847A 67881A 67882B 68131 68294A 9004871222
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
62785-87701

J10#,122

 3
62785F - SPACER, BACK DOOR GLASS
62785-87701

J10#,122

 3
62785F - SPACER, BACK DOOR GLASS
62785-87701

J10#,122

 3
64827A - CLIP, BACK WINDOW GLASS, RH
64827-87701

J10#,122

 1
64828 - CLIP, BACK WINDOW GLASS, LH
64827-87701

J10#,122

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-87401

J10#,122

 1
67847A - COVER, BACK DOOR SERVICE HOLE
67847-87401

J10#,122

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-87401

J10#,122

 1
67882B - WEATHERSTRIP, BACK DOOR, UPPER LH
67876-87401

J10#,122..P

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
68131 - GLASS, BACK DOOR
68131-87403

J100..P

*TT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68294A - DAM, BACK DOOR GLASS ADHESIVE
68294-87401

J10#,122..P

 1
Common parts
67755-87401
90048-71222
Linked diagrams
6762

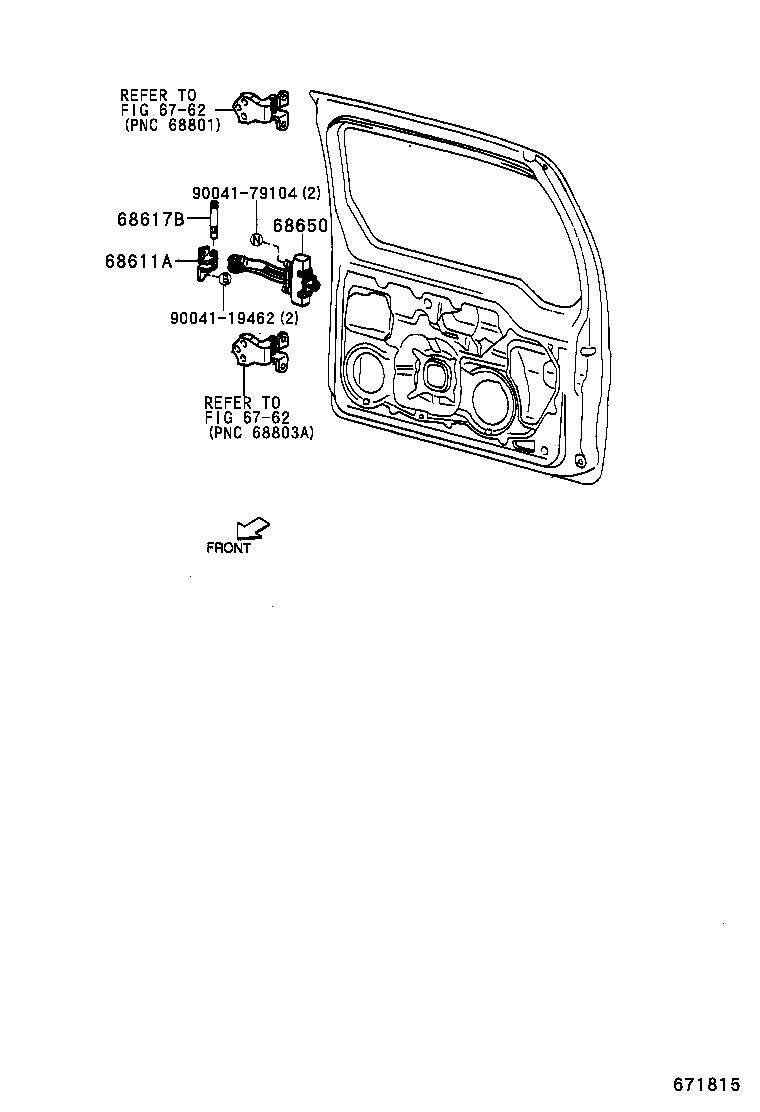

ILLUST NO. 3 OF 3(9905- )

Click highlighted areas on diagram

diagram 6762 6762 68611A 68617B 68650 9004119462 9004179104
Part # Description Qty Price
68611A - BASE, BACK DOOR CHECK
68611-87401

J10#,122

 1
68617B - PIN, BACK DOOR CHECK
68617-87401

J10#,122

 1
68650 - CHECK ASSY, BACK DOOR
68650-87401

J10#,122

 1
Common parts
90041-19462
90041-79104
Linked diagrams
6762
