J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905- )

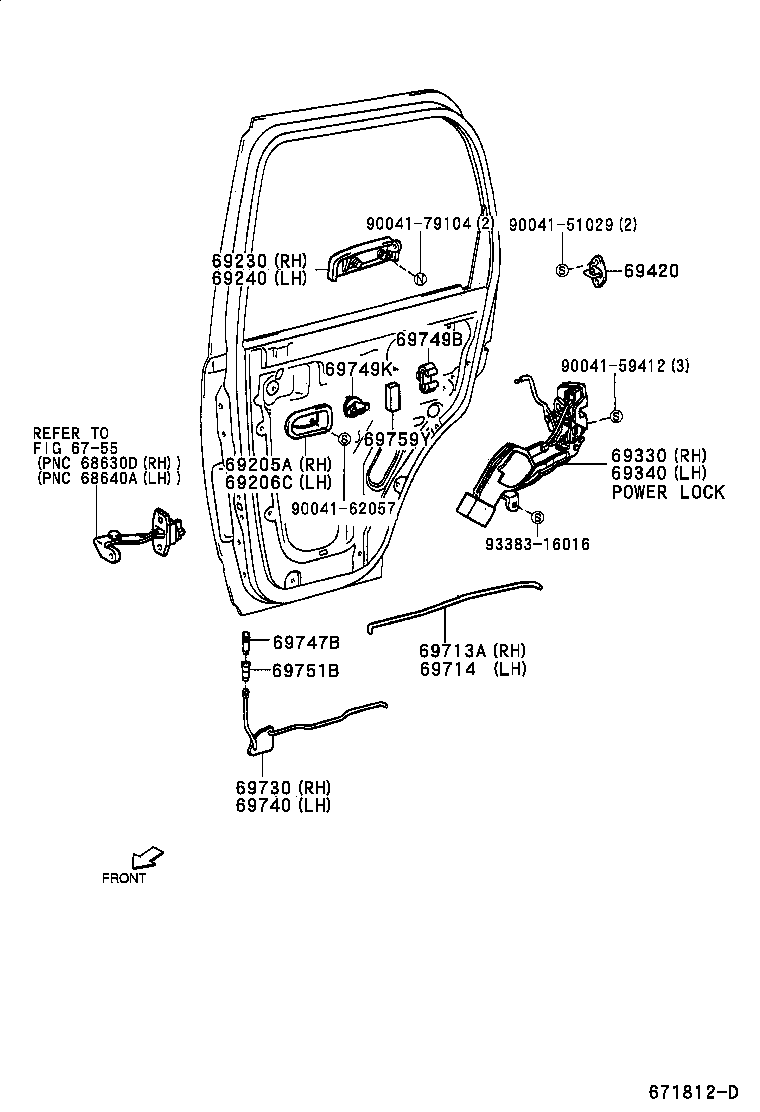

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69270-8770723 |
J100 GRAY,TRIMS |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69280-8770723 |
J100 GRAY,TRIMS |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-87214 |
J10#,122..EFI |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69220-87214 |
J10#,122..EFI |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-87401 |
J10#,122 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69060-87401 |
J10#,122 |
1 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-87701 |
J10#,122 |
2 | ||
| 69713A - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-87401 |
J10#,122 |
1 | ||
| 69714 - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-87401 |
J10#,122 |
1 | ||
| 69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH | ||||
| 69730-87402 |
J100 |
1 | ||
| 69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH | ||||
| 69740-87402 |
J100 |
1 | ||
| 69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69747-8770303 |
J10#,122 GRAY,TRIMS |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-87701 |
J10#,122 |
2 | ||
| 69749K - CLAMP, REAR DOOR LOCK | ||||
| 69749-87702 |
J10#,122 |
2 | ||
| 69751B - HOLDER, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69751-8770303 |
J100 GRAY,TRIMS |
2 | ||
| 69759Y - SILENCER, REAR DOOR LOCK LINK | ||||
| 69759-87704 |
J10#,122 |
2 | ||
| Common parts | ||||
| 90041-51029 | ||||
| 90041-59412 | ||||
| 90041-62057 | ||||
| 90041-79104 | ||||
| 93383-16016 | ||||
| Linked diagrams | ||||
| 6755 | ||||
