J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

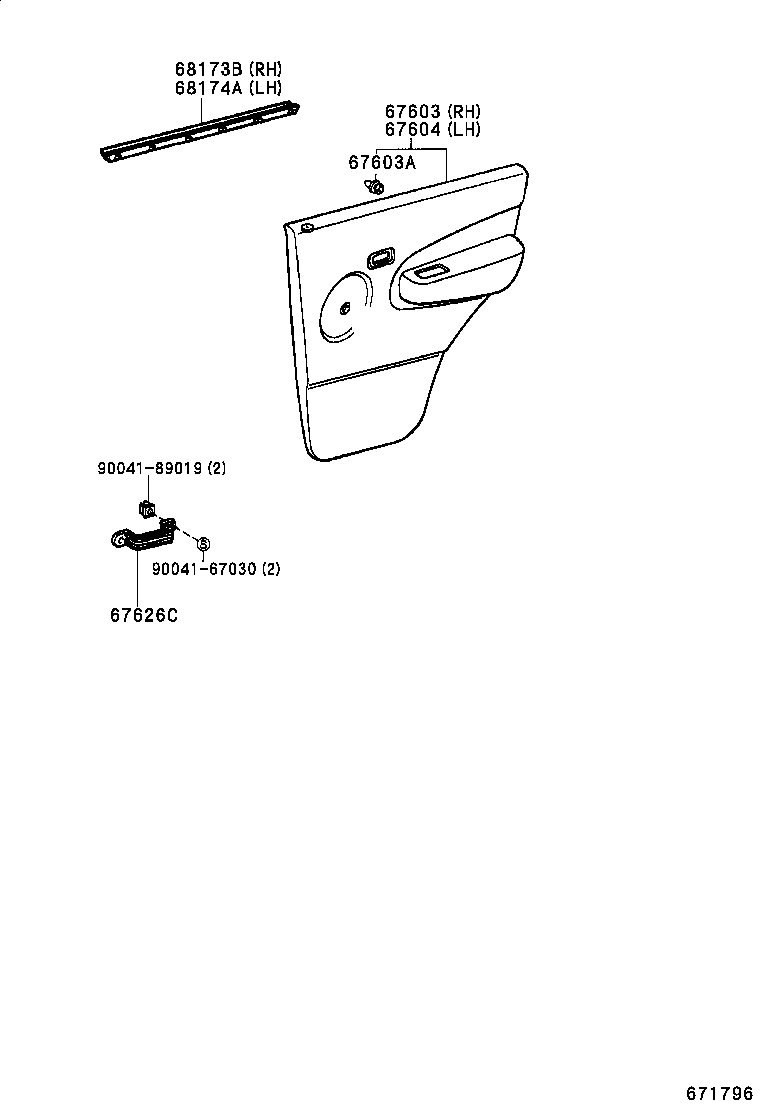

ILLUST NO. 1 OF 4(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67607-8740203 |
J100 GRAY,TRIMS |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-87204 |
J10#,122 |
14 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67608-8740203 |
J100 GRAY,TRIMS |
1 | ||
| 67626C - BRACKET, REAR DOOR TRIM, NO.2 | ||||
| 67625-87401 |
J100 |
2 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-87401 |
J10#,122 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68173-87401 |
J10#,122 |
1 | ||
| Common parts | ||||
| 90041-67030 | ||||
| 90041-89019 | ||||

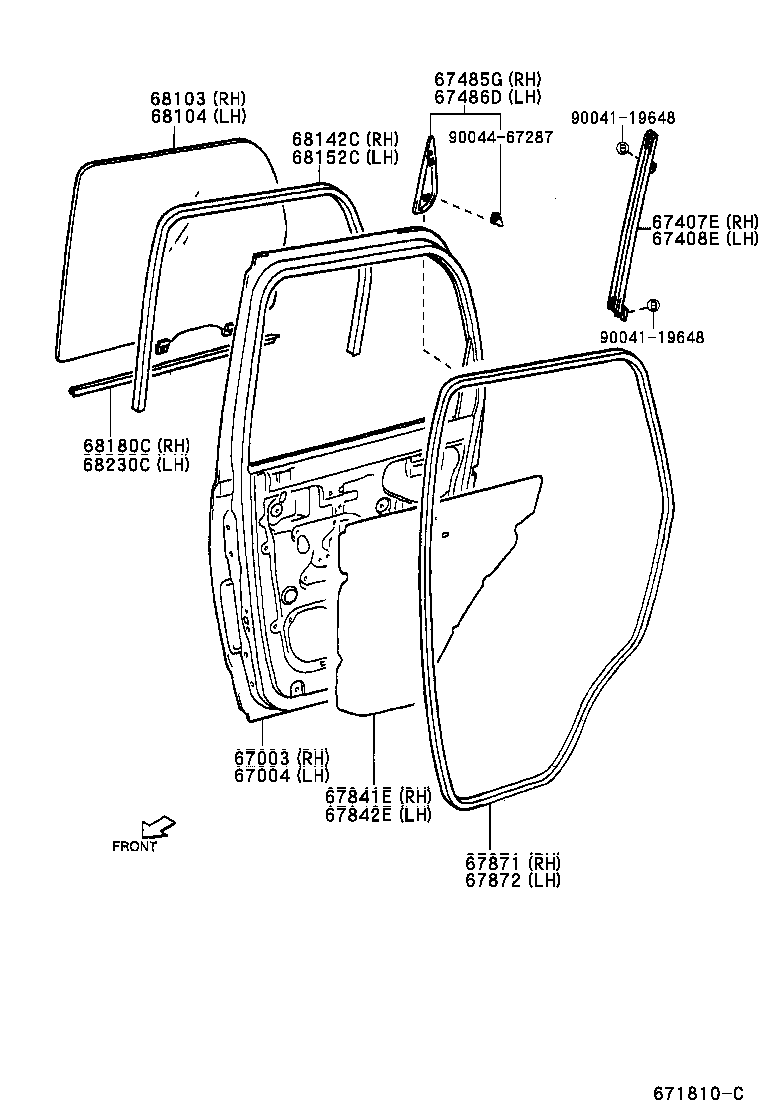

ILLUST NO. 2 OF 4(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-87403 |
J100 |
1 | ||
| 67003-87405 |
J10#,122 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-87405 |
J10#,122 |
1 | ||
| 67004-87403 |
J100 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-87401 |
J10#,122 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-87401 |
J10#,122 |
1 | ||
| 67485G - SEAL, REAR DOOR REAR LOWER FRAME, RH | ||||
| 67485-87401 |
J10#,122 |
1 | ||
| 67486D - SEAL, REAR DOOR REAR LOWER FRAME, LH | ||||
| 67486-87401 |
J10#,122 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-87402 |
J10#,122 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-87402 |
J10#,122 |
1 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-87401 |
J10#,122 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67871-87401 |
J10#,122 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-87401 |
J10#,122..P *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-87401 |
J10#,122..P *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-87403 |
J10#,122 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68142-87403 |
J10#,122 |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68163-87401 |
J10#,122 |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68164-87401 |
J10#,122 |
1 | ||
| Common parts | ||||
| 90041-19648 | ||||
| 90044-67287 | ||||

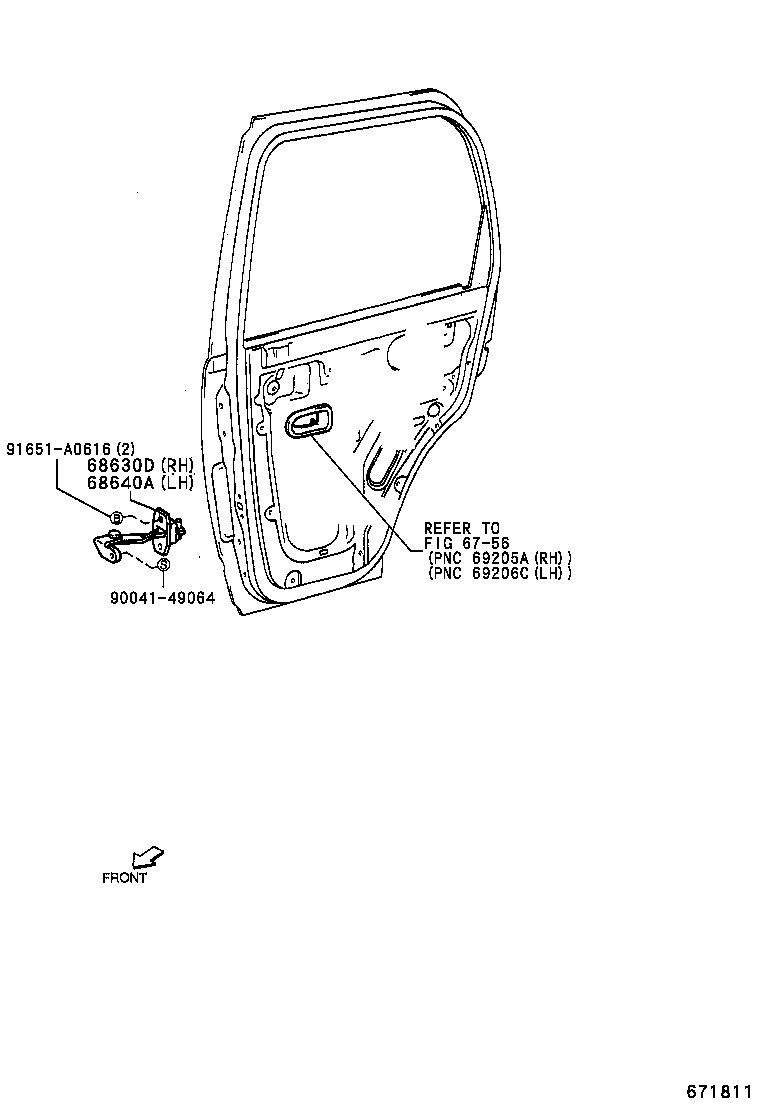

ILLUST NO. 3 OF 4(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-87401 |
J10#,122 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-87401 |
J10#,122 |
1 | ||
| Common parts | ||||
| 90041-49064 | ||||
| 91651-A0616 | ||||
| Linked diagrams | ||||
| 6756 | ||||
