J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )

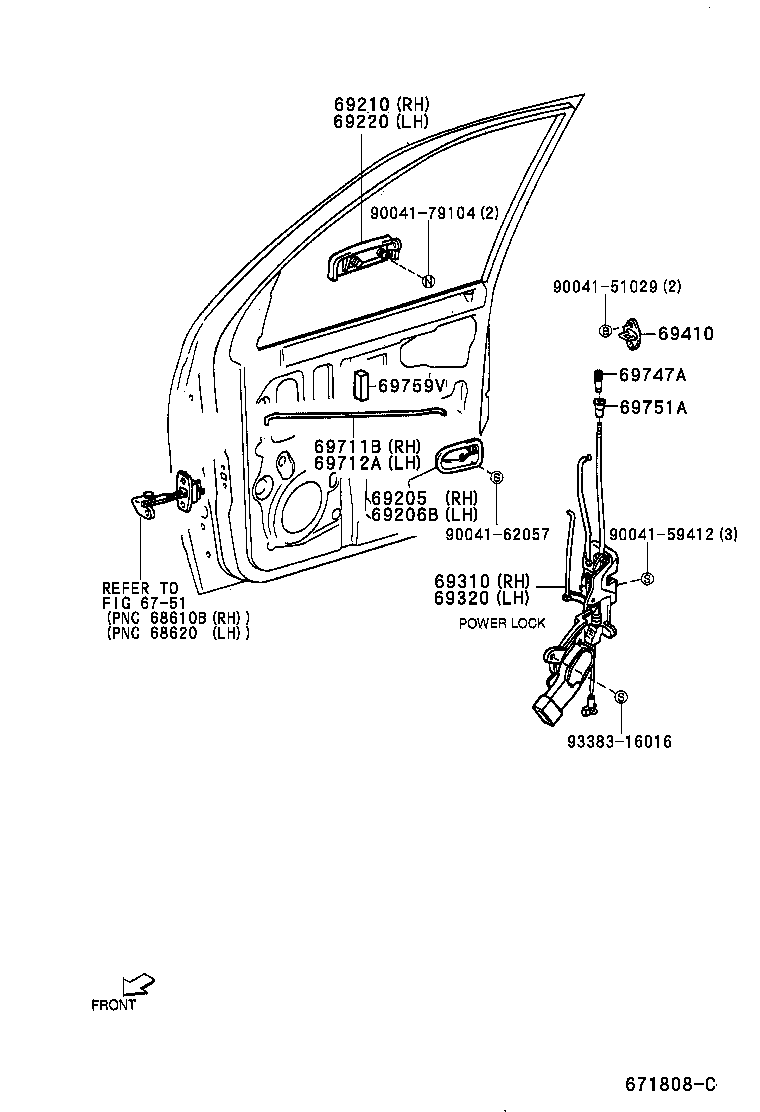

Click highlighted areas on diagram

diagram 6751 69205 69206B 69210 69220 69310 69320 69410 69711B 69712A 69747A 69751A 69759V 9004151029 9004159412 9004162057 9004179104 9338316016
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69270-8770723

J100

GRAY,TRIMS

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69280-8770723

J100

GRAY,TRIMS

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-87214

J10#,122..EFI

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-87214

J10#,122..EFI

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-87406

J100

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-87401

J100

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87701

J10#,122

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-87401

J10#,122

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-87401

J10#,122

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69747-8770303

J10#,122

GRAY,TRIMS

 4
69751A - HOLDER, DOOR LOCKING(FOR FRONT DOOR)
69751-8770303

J100

GRAY,TRIMS

 2
69759V - SILENCER, FRONT DOOR LOCK LINK
69759-87704

J10#,122

 2
Common parts
90041-51029
90041-59412
90041-62057
90041-79104
93383-16016
Linked diagrams
6751
