J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

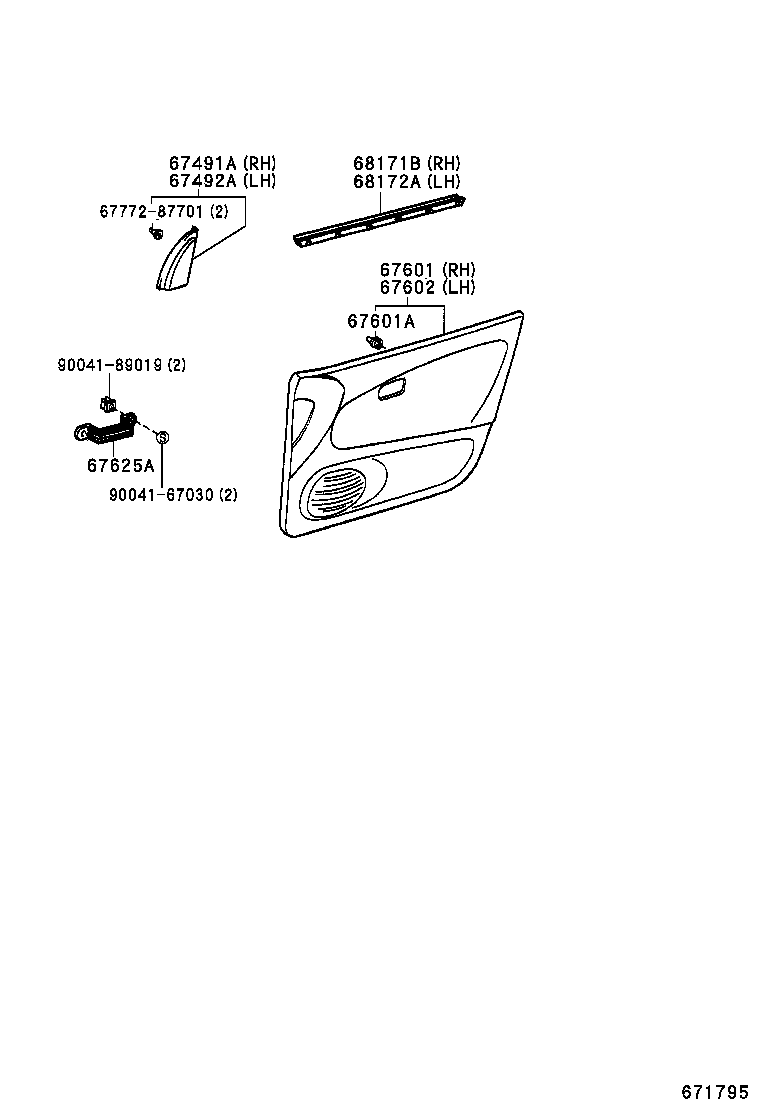

ILLUST NO. 1 OF 3(9905-0005)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-87401 |
J10#,122 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-87401 |
J10#,122 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67605-8740803 |
J100 GRAY,TRIMS |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-87204 |
J10#,122 |
16 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67606-8740603 |
J100 GRAY,TRIMS |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-87401 |
J100 |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-87401 |
J10#,122 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68171-87401 |
J10#,122 |
1 | ||
| Common parts | ||||
| 67772-87701 | ||||
| 90041-67030 | ||||
| 90041-89019 | ||||

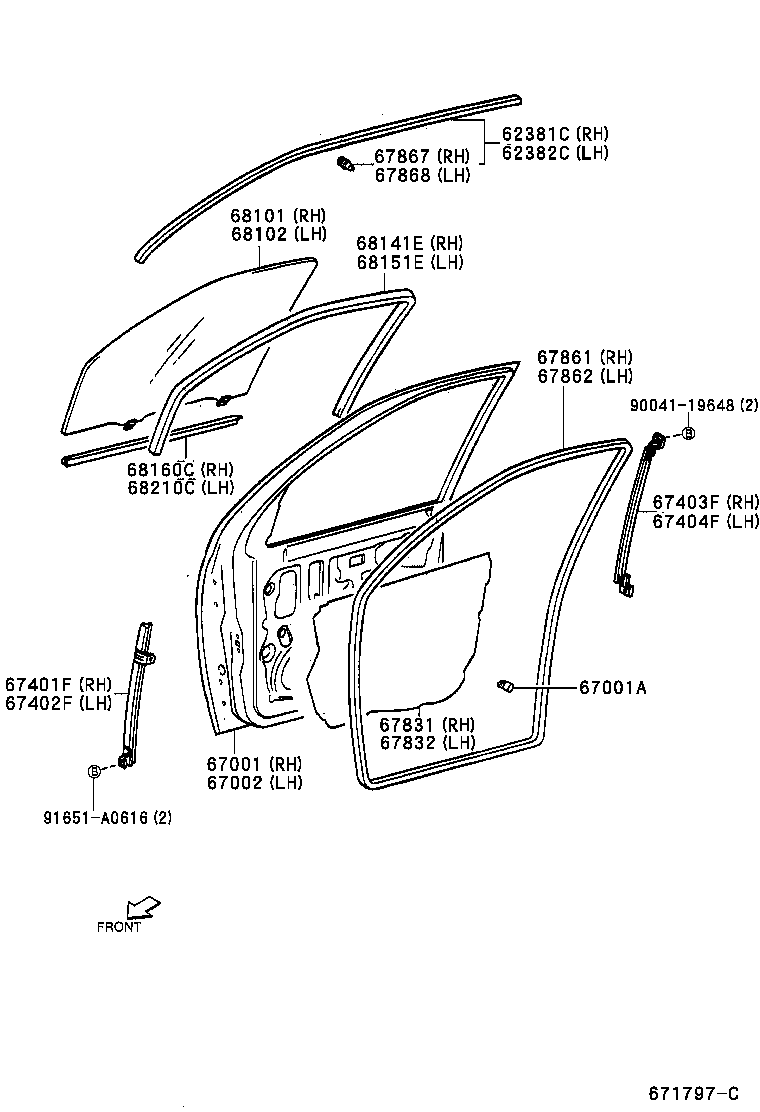

ILLUST NO. 2 OF 4(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62381C - WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH | ||||
| 68213-87401 |
J10#,122 |
1 | ||
| 62382C - WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH | ||||
| 68214-87401 |
J10#,122 |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-87409 |
J10#,122 |
1 | ||
| 67001-87407 |
J100 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90045-41232 |
J10#,122 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-87408 |
J10#,122 |
1 | ||
| 67002-87406 |
J100 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-87401 |
J10#,122 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-87401 |
J10#,122 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-87401 |
J10#,122 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-87401 |
J10#,122 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-87403 |
J10#,122 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-87402 |
J10#,122 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-87401 |
J10#,122 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67861-87401 |
J10#,122 |
1 | ||
| 67867 - CLIP, DOOR WEATHERSTRIP | ||||
| 67867-87704 |
J10#,122 |
20 | ||
| 67867-87701 |
J100 |
20 | ||
| 67868 - CLIP, FRONT DOOR GLASS WEATHERSTRIP | ||||
| 67868-87701 |
J100 |
20 | ||
| 67868-87704 |
J10#,122 |
20 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-87401 |
J10#,122 *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-87401 |
J10#,122 *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-87402 |
J10#,122 |
1 | ||
| 68151E - RUN, FRONT DOOR GLASS, LH | ||||
| 68141-87402 |
J10#,122 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-87401 |
J10#,122 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-87401 |
J10#,122 |
1 | ||
| Common parts | ||||
| 90041-19648 | ||||
| 91651-A0616 | ||||

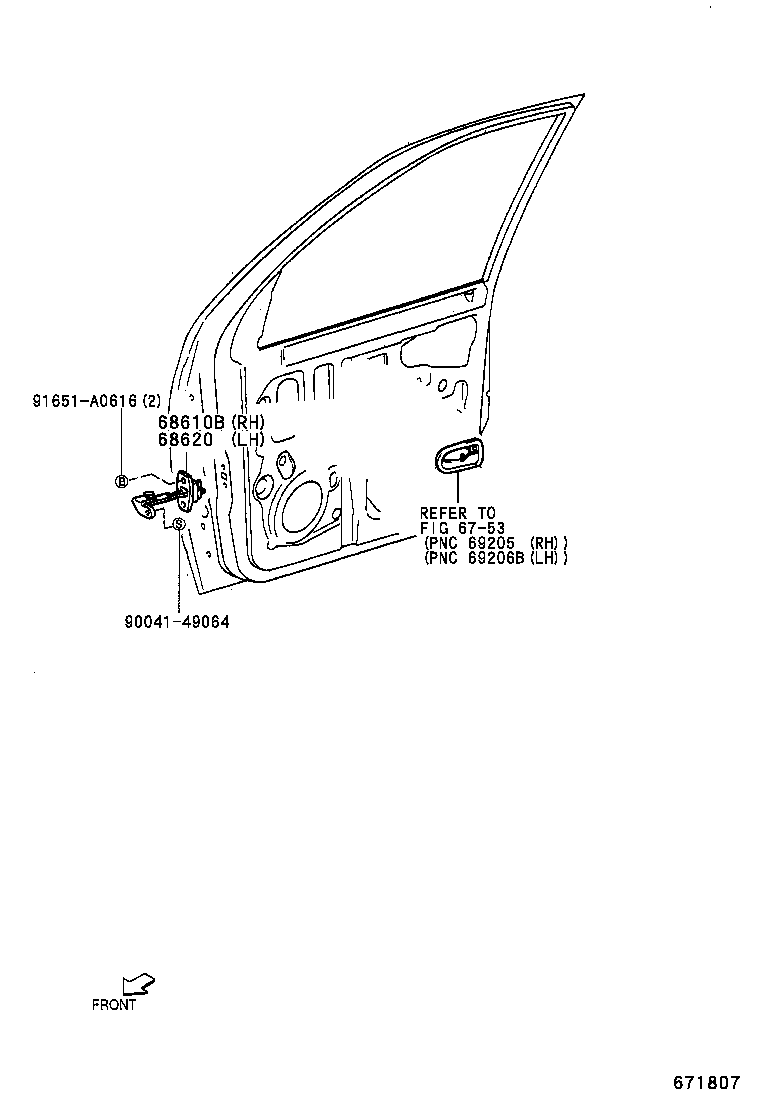

ILLUST NO. 3 OF 4(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-87401 |
J10#,122 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-87401 |
J10#,122 |
1 | ||
| Common parts | ||||
| 90041-49064 | ||||
| 91651-A0616 | ||||
| Linked diagrams | ||||
| 6753 | ||||
