J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

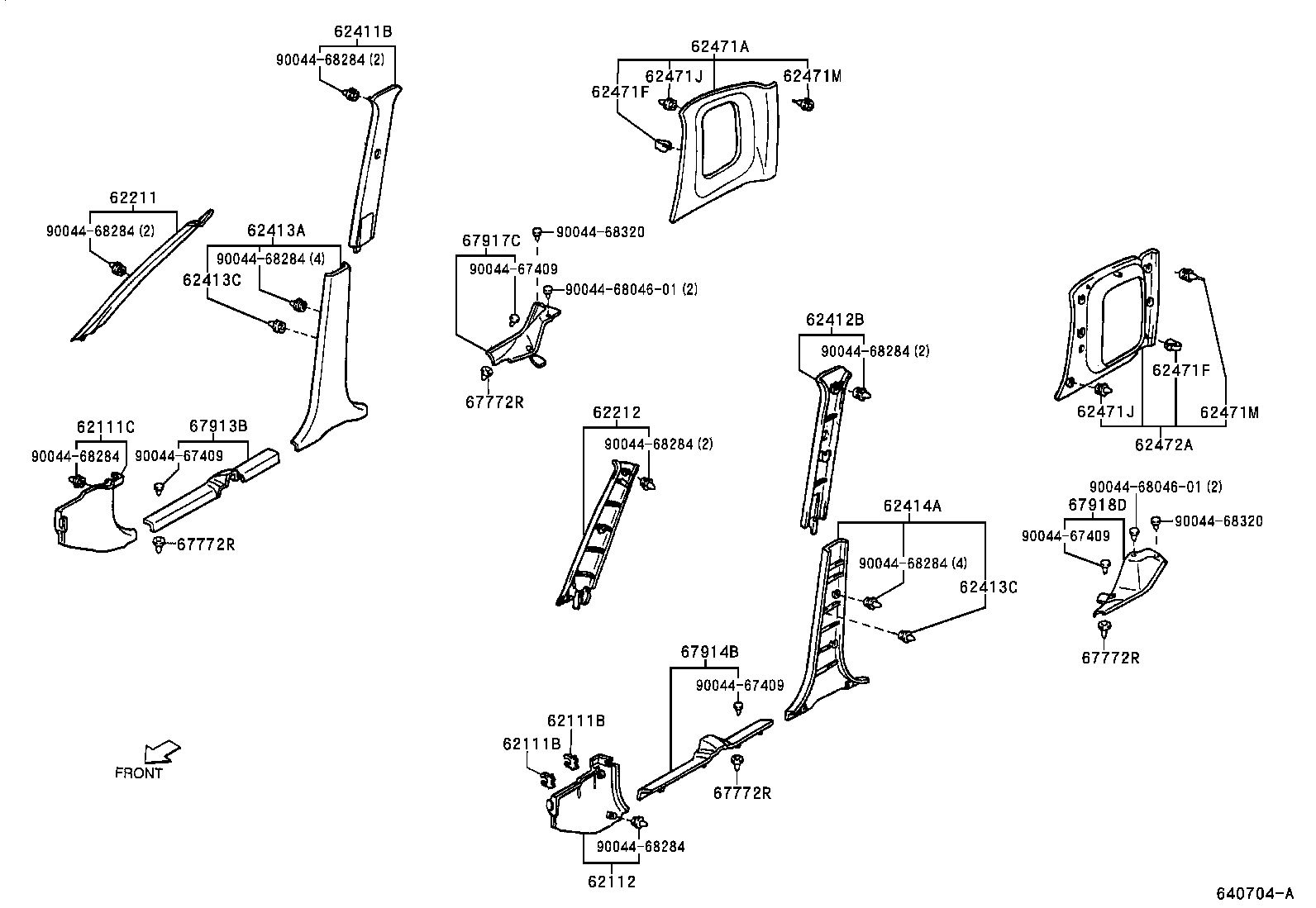

ILLUST NO. 1 OF 2(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90044-6823301 |
J10#,122 BLACK,TRIMS |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90044-6823301 |
J10#,122 BLACK,TRIMS |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-8740103 |
J10#,122 GRAY,TRIMS |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-8740103 |
J10#,122 GRAY,TRIMS |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-8740103 |
J10#,122 GRAY,TRIMS |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-8740203 |
J100 GRAY,TRIMS |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90044-67409 |
J10#,122 |
4 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90044-67409 |
J10#,122 |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-8740203 |
J100 GRAY,TRIMS |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-8740103 |
J10#,122 GRAY,TRIMS |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-67386 |
J10#,122 |
4 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-67386 |
J10#,122 |
4 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90044-68284 |
J10#,122 |
8 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90044-68284 |
J10#,122 |
8 | ||
| 62471M - CLIP | ||||
| 90044-68292 |
J10#,122 |
2 | ||
| 62471M - CLIP | ||||
| 90044-68292 |
J10#,122 |
2 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-8740103 |
J10#,122 GRAY,TRIMS |
1 | ||
| 67772R - CAP, DOOR TRIM RETAINER | ||||
| 67772-87703 |
J10#,122 |
6 | ||
| 67772R - CAP, DOOR TRIM RETAINER | ||||
| 67772-87703 |
J10#,122 |
6 | ||
| 67772R - CAP, DOOR TRIM RETAINER | ||||
| 67772-87703 |
J10#,122 |
6 | ||
| 67772R - CAP, DOOR TRIM RETAINER | ||||
| 67772-87703 |
J10#,122 |
6 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 67918D - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-8740103 |
J100 GRAY,TRIMS |
1 | ||
| Common parts | ||||
| 90044-67409 | ||||
| 90044-6804601 | ||||
| 90044-68284 | ||||
| 90044-68320 | ||||
ILLUST NO. 2 OF 2(9905-0112)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90044-6806183 |
J100 GRAY,TRIMS |
8 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90044-6806183 |
J100 GRAY,TRIMS |
8 | ||
| 62510K - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90044-68284 |
J10#,122 |
16 | ||
| 62510K - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90044-68284 |
J10#,122 |
16 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 64714-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90044-68281 |
J10#,122 |
2 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90044-68281 |
J10#,122 |
2 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 64715-8740103 |
J100 GRAY,TRIMS |
1 | ||
| Common parts | ||||
| 67772-87703 | ||||
| 90041-83018 | ||||
