J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905- )

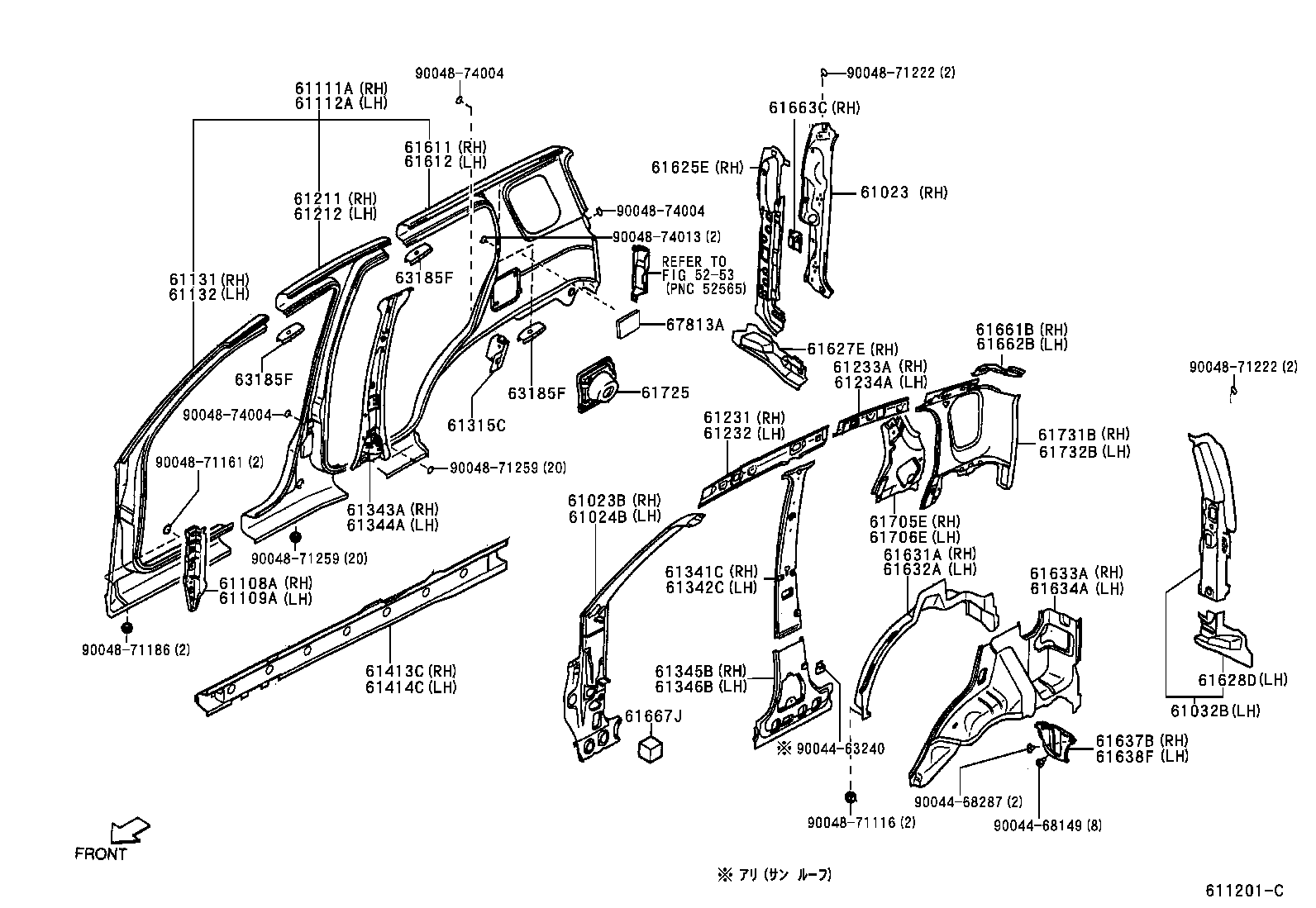

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023 - EXTENSION SUB-ASSY, ROOF SIDE, OUTER RH | ||||
| 61625-87401 |
J10#,122 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-87407 |
J100 |
1 | ||
| 61023-87411 |
J100 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-87408 |
J100 |
1 | ||
| 61024-87412 |
J100 |
1 | ||
| 61032B - EXTENSION SUB-ASSY, QUARTER PANEL, LH | ||||
| 61032-87401 |
J10#,122 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-87402 |
J10#,122 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61134-87402 |
J10#,122 |
1 | ||
| 61111A - PANEL, FRONT SIDE, OUTER RH | ||||
| 61111-87423 |
J100 |
1 | ||
| 61112A - PANEL, FRONT SIDE, OUTER LH | ||||
| 61112-87423 |
J100 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-87403 |
J10#,122..EFI |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-87403 |
J10#,122..EFI |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-87405 |
J100 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-87405 |
J100 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-87405 |
J10#,122 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-87403 |
J10#,122 |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-87402 |
J10#,122 |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-87402 |
J10#,122 |
1 | ||
| 61315C - RETAINER, DOOR LOCK STRIKER, RH | ||||
| 61507-87401 |
J10#,122 右側 |
1 | ||
| 61508-87401 |
J10#,122 左側 |
1 | ||
| 61341C - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61343-87401 |
J10#,122 |
1 | ||
| 61342C - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61344-87401 |
J10#,122 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61037-87401 |
J10#,122 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61038-87401 |
J10#,122 |
1 | ||
| 61345B - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61418-87402 |
J10#,122 |
1 | ||
| 61346B - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61419-87402 |
J10#,122 |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61403-87402 |
J10#,122 |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61404-87402 |
J10#,122 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-87406 |
J100 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-87405 |
J100 |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61031-87401 |
J10#,122 |
1 | ||
| 61627E - EXTENSION, QUARTER PANEL, REAR LOWER RH | ||||
| 61627-87401 |
J10#,122 |
1 | ||
| 61628D - EXTENSION, QUARTER PANEL, REAR LOWER LH | ||||
| 61628-87401 |
J10#,122 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-87401 |
J10#,122 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61606-87401 |
J10#,122 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-87401 |
J10#,122 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-87401 |
J10#,122 |
1 | ||
| 61637B - REINFORCEMENT, REAR PILLAR, INNER UPPER RH | ||||
| 65637-87404 |
J10#,122 |
1 | ||
| 61638F - BRACKET, QUARTER WHEEL HOUSE, LH | ||||
| 65638-87401 |
J10#,122 |
1 | ||
| 61661B - PLATE, QUARTER PANEL OUTER EXTENSION, LOWER FRONT | ||||
| 61661-87401 |
J10#,122 |
1 | ||
| 61662B - EXTENSION, QUARTER PANEL TO UPPER BACK, LH | ||||
| 61662-87401 |
J10#,122 |
1 | ||
| 61663C - BRACKET, REAR COMBINATION LAMP MOUNTING | ||||
| 61663-87401 |
J10#,122 |
1 | ||
| 61667J - SEAL, FRONT PILLAR | ||||
| 61667-87213 |
J10#,122 |
2 | ||
| 61705E - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61705-87401 |
J10#,122 |
1 | ||
| 61706E - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61706-87401 |
J10#,122 |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-87401 |
J10#,122 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-87401 |
J10#,122 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-87401 |
J10#,122 |
1 | ||
| 63185F - BRACKET, ROOF RACK, FRONT | ||||
| 63185-87401 |
J100 |
6 | ||
| 63185F - BRACKET, ROOF RACK, FRONT | ||||
| 63185-87401 |
J100 |
6 | ||
| 63185F - BRACKET, ROOF RACK, FRONT | ||||
| 63185-87401 |
J100 |
6 | ||
| 67813A - SHEET, QUARTER PANEL SILENCER, RH | ||||
| 67814-87701 |
J10#,122 |
2 | ||
| Common parts | ||||
| 90044-63240 | ||||
| 90044-68149 | ||||
| 90044-68287 | ||||
| 90048-71116 | ||||
| 90048-71161 | ||||
| 90048-71186 | ||||
| 90048-71222 | ||||
| 90048-71259 | ||||
| 90048-74004 | ||||
| 90048-74013 | ||||
| Linked diagrams | ||||
| 5253 | ||||
