J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

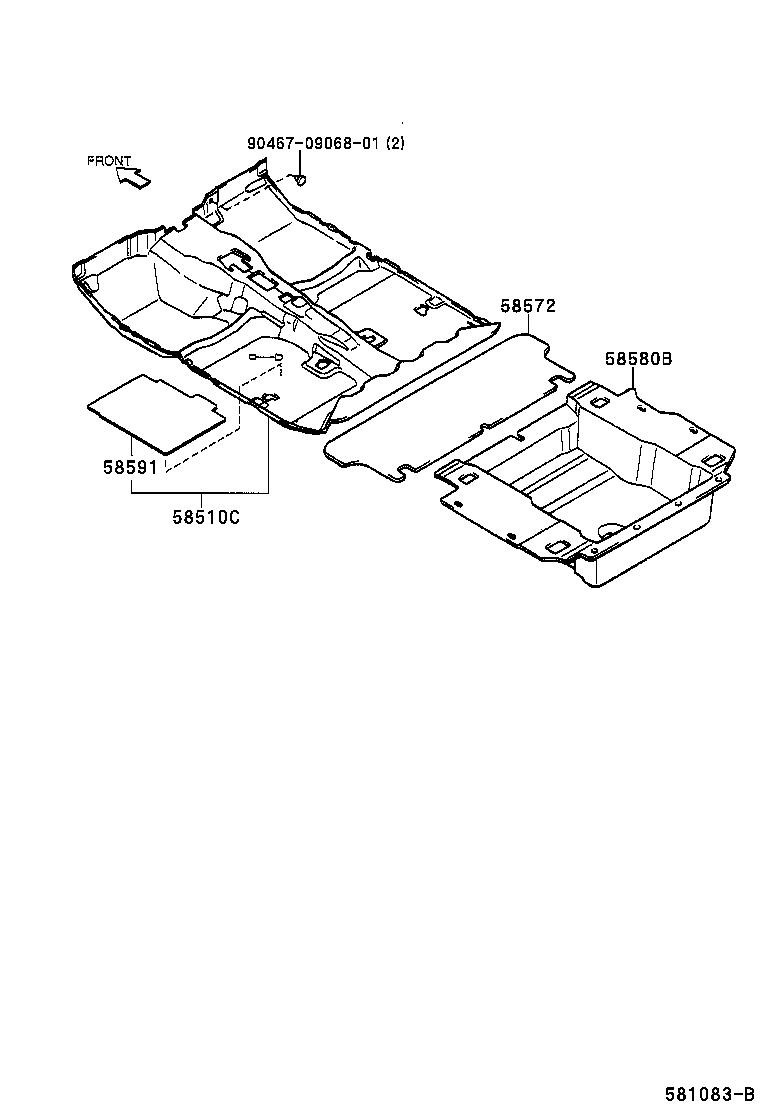

ILLUST NO. 1 OF 2(9905-0112)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-8741003 |
J100..4AT GRAY,TRIMS |
1 | ||
| 58510-8741003 |
J100..4AT GRAY,TRIMS |
1 | ||
| 58572 - SET PLATE, REAR FLOOR MAT, REAR | ||||
| 58572-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 58580B - MAT ASSY, REAR FLOOR, REAR | ||||
| 58580-87402 |
J10#,122 |
1 | ||
| 58591 - COVER, FLOOR CARPET | ||||
| 58591-8740103 |
J10#,122 GRAY,TRIMS |
1 | ||
| Common parts | ||||
| 90467-0906801 | ||||

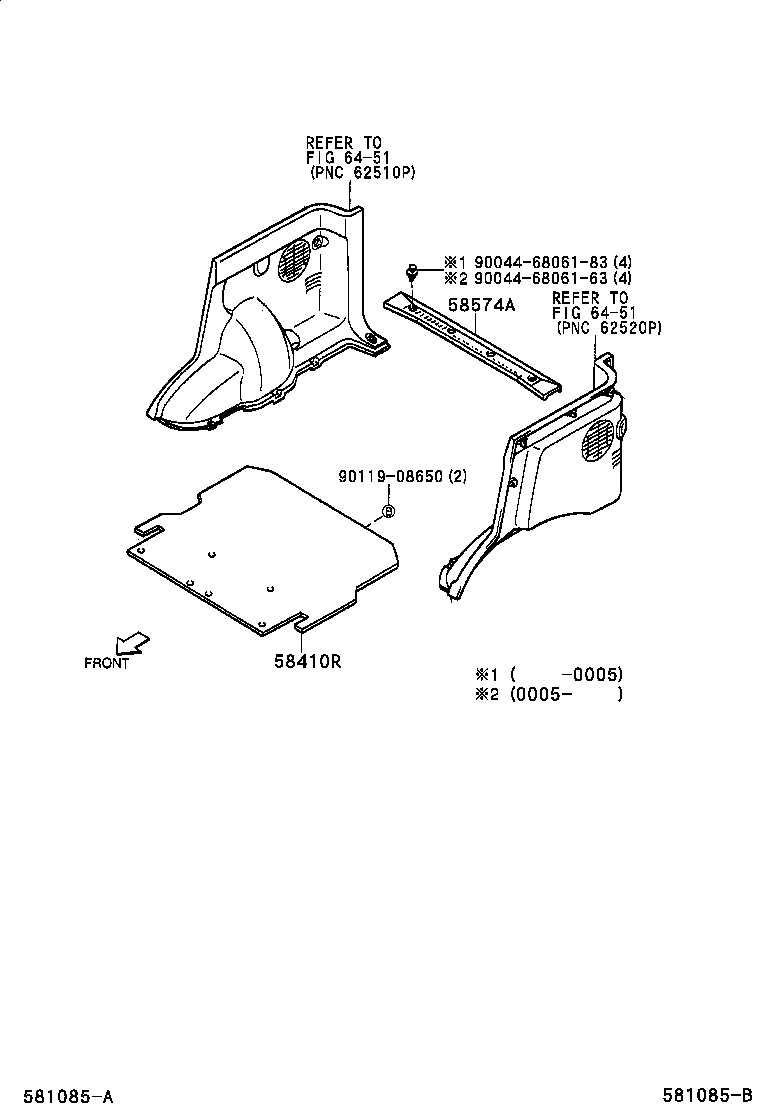

ILLUST NO. 2 OF 2(9905-0112)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58410R - BOARD ASSY, DECK | ||||
| 58410-8740403 |
J100..P GRAY,TRIMS |
1 | ||
| 58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR | ||||
| 64716-8740103 |
J100 GRAY,TRIMS |
1 | ||
| Common parts | ||||
| 90044-6806163 | ||||
| 90044-6806183 | ||||
| 90119-08650 | ||||
| Linked diagrams | ||||
| 6451 | ||||
