J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

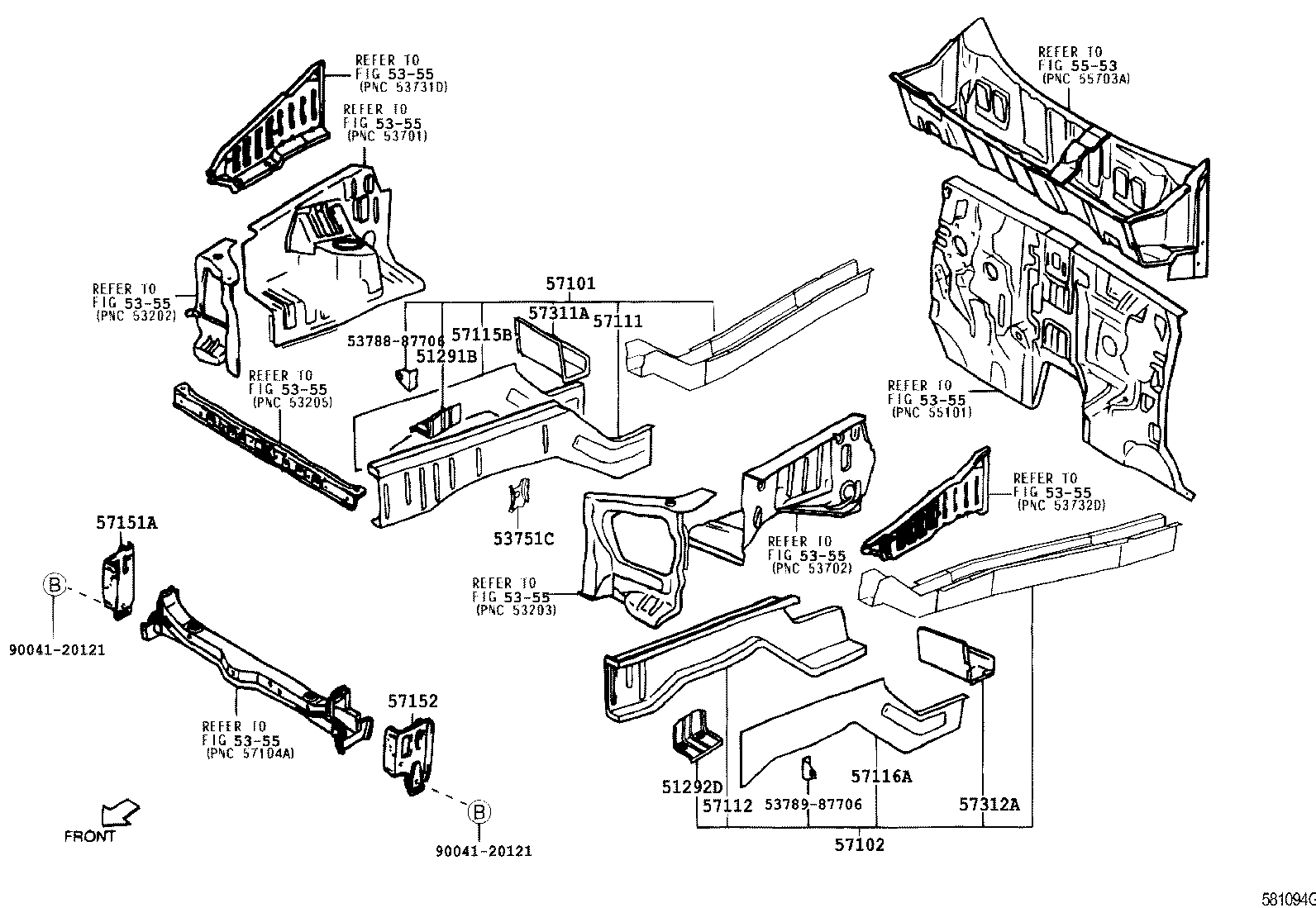

ILLUST NO. 1 OF 3(9905-0005)

Click highlighted areas on diagram

diagram 51291B 51292D 5355 5355 5355 5355 5355 5355 5355 5355 5355 53751C 5378887706 5378987706 5553 57101 57102 57111 57112 57115B 57116A 57151A 57152 57311A 57312A 9004120121 9004120121
Part # Description Qty Price
51291B - BRACKET, SUSPENSION MEMBER SUPPORT, RH
51291-87401

J100

 1
51292D - BRACKET, SUSPENSION MEMBER SUPPORT, LH
51291-87401

J100

 1
53751C - BRACKET, CHARCOAL CANISTER MOUNTING
53751-87703

J100

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-87402

J100

 1
57101-87404

J100

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-87402

J100

 1
57111 - MEMBER, FRONT SIDE, RH
57111-87402

J100

 1
57111-87403

J100

 1
57112 - MEMBER, FRONT SIDE, LH
57112-87402

J100

 1
57115B - PLATE, FRONT SIDE MEMBER, NO.1 RH
57113-87402

J10#,122

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57114-87402

J10#,122

 1
57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57016-87401

J100

 1
57016-87403

J10#,122

 1
57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57017-87401

J100

 1
57017-87403

J10#,122

 1
57311A - OUTRIGGER, FRONT, NO.1 RH
57311-87403

J10#,122

 1
57312A - OUTRIGER, FRONT, NO.1 LH
57312-87402

J10#,122

 1
Common parts
53788-87706
53789-87706
90041-20121
Linked diagrams
5355
5553

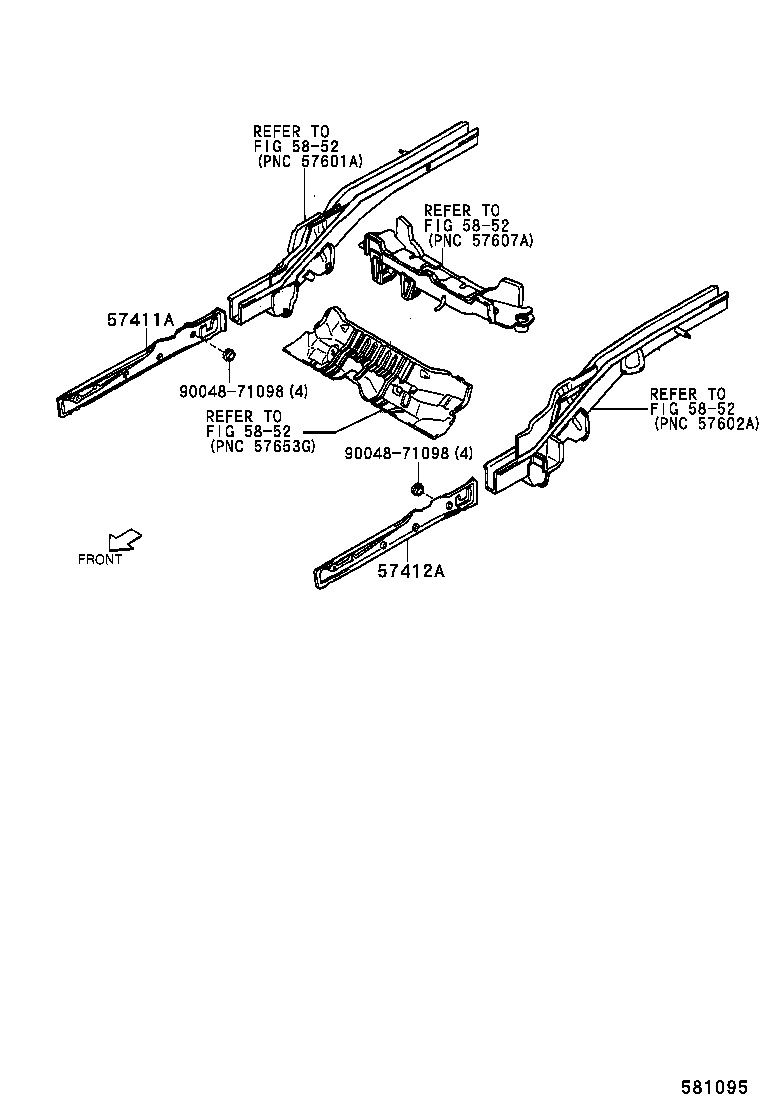

ILLUST NO. 2 OF 3(9905- )

Click highlighted areas on diagram

diagram 57411A 57412A 5852 5852 5852 5852 9004871098 9004871098
Part # Description Qty Price
57411A - MEMBER, FLOOR SIDE, INNER RH
57411-87404

J10#,122

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57412-87404

J10#,122

 1
Common parts
90048-71098
Linked diagrams
5852

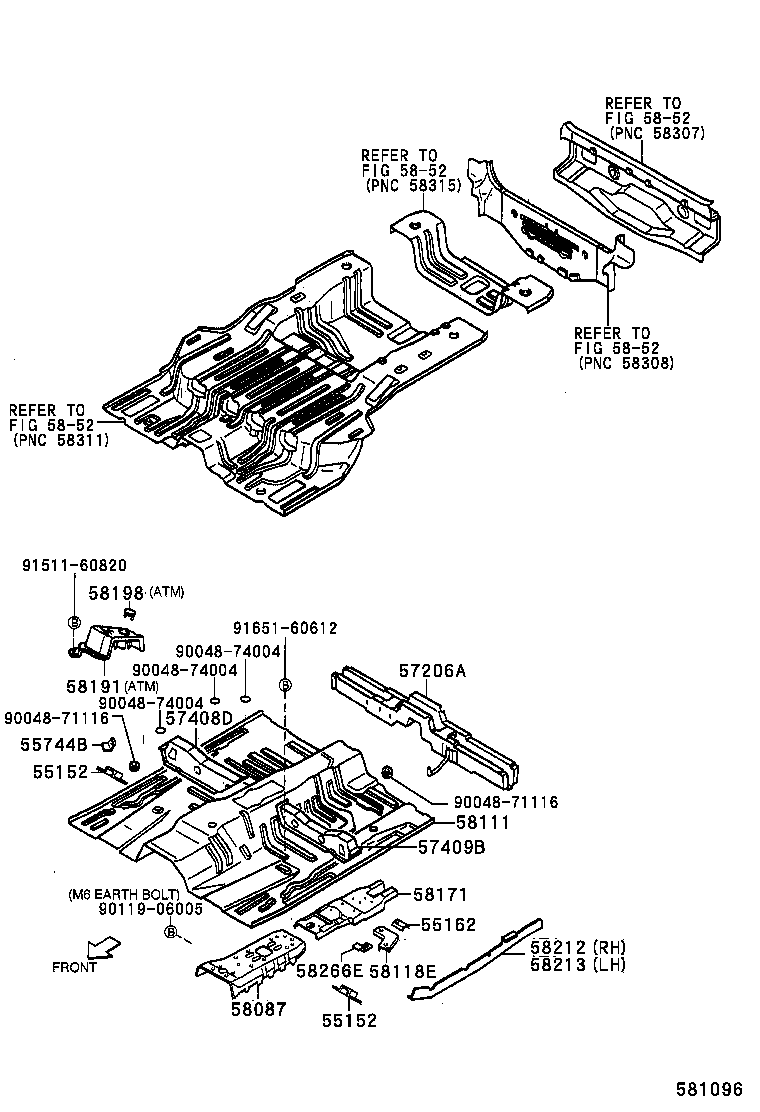

ILLUST NO. 3 OF 3(9905- )

Click highlighted areas on diagram

diagram 55152 55152 55162 55744B 57206A 57408D 57409B 58087 58111 58118E 58171 58191 58198 58212 58213 58266E 5852 5852 5852 5852 9004871116 9004871116 9004874004 9004874004 9004874004 9011906005 9151160820 9165160612
Part # Description Qty Price
55152 - BRACKET, 3 WAY ATTACHING
55152-87506

J10#,122..4AT

 1
55152 - BRACKET, 3 WAY ATTACHING
55152-87506

J10#,122..4AT

 1
55162 - BRACKET, HEATER MOUNTING, LH
55162-87501

J10#,122

 1
55744B - BRACKET, FLASHER SET
55744-87603

J10#,122

 2
57206A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57206-87405

J100

 1
57408D - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57408-87401

J10#,122

 1
57409B - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57409-87401

J10#,122

 1
58087 - RETAINER SUB-ASSY, SHIFT LEVER BOOT
58087-87404

J100..4AT

 1
58111 - PAN, FRONT FLOOR
58111-87403

J10#,122

 1
58118E - BRACKET, JACK SET
58118-87402

J10#,122

 1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-87401

J10#,122

 1
58191 - FOOTREST, FRONT FLOOR
58191-87401

J10#,122..4AT

 1
58198 - CLIP, FOOTREST
58198-87401

J10#,122..4AT

 1
58212 - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH
58223-87401

J10#,122

 1
58213 - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH
58224-87401

J10#,122

 1
58266E - BRACKET, FUEL TUBE CLAMP, CENTER
58266-87702

J10#,122

 2
Common parts
90048-71116
90048-74004
90119-06005
91511-60820
91651-60612
Linked diagrams
5852
