J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

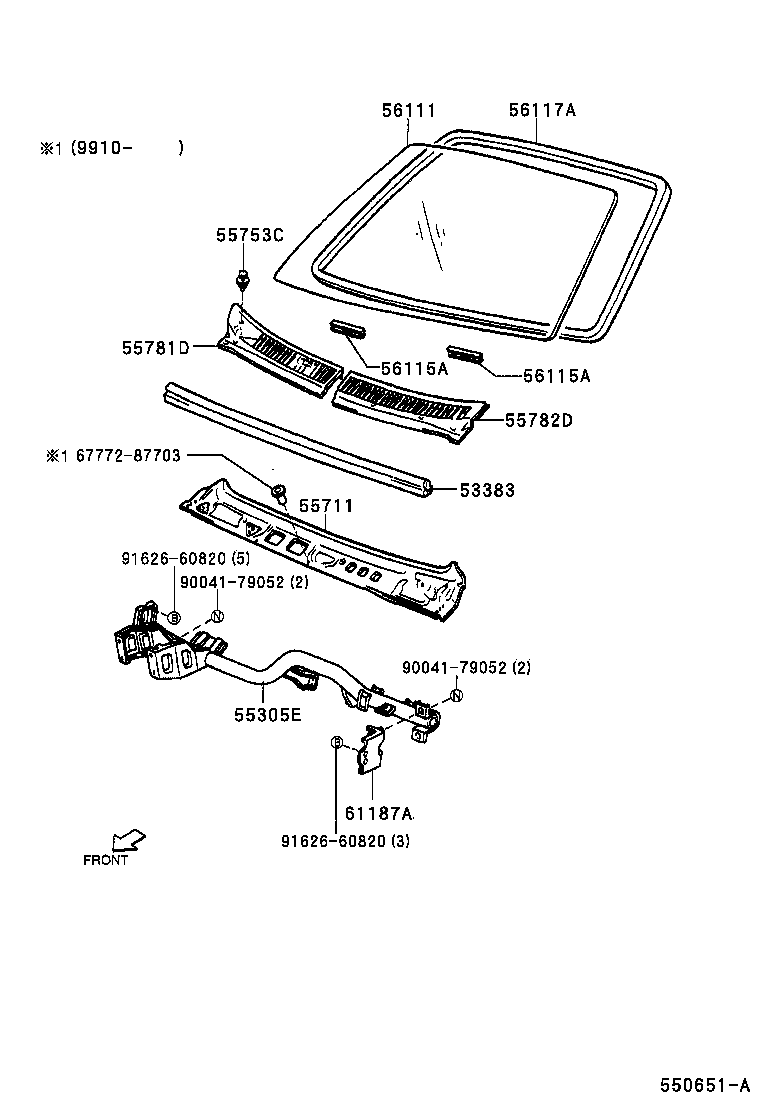

ILLUST NO. 1 OF 2(9905- )

Click highlighted areas on diagram

diagram 53383 55305E 55711 55753C 55781D 55782D 56111 56115A 56115A 56117A 61187A 6777287703 9004179052 9004179052 9162660820 9162660820
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-87401

J10#,122

 1
55305E - REINFORCEMENT, INSTRUMENT PANEL
55750-87403

J100

 1
55711 - PANEL, COWL TOP, OUTER
55701-87412

J10#,122

 1
55753C - CLIP(FOR COVER WINDSHIELD, RH)
90044-68196

J10#,122

 11
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-87401

J10#,122

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-87401

J10#,122

 1
56111 - GLASS, WINDSHIELD
56111-87405

J10#,122

*TL,T=4.5,ｸﾞﾘｰﾝ

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-87401

J10#,122

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-87401

J10#,122

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-87401

J10#,122

 1
61187A - BRACKET, INSTRUMENT PANEL, SIDE
61187-87401

J10#,122

 1
Common parts
67772-87703
90041-79052
91626-60820

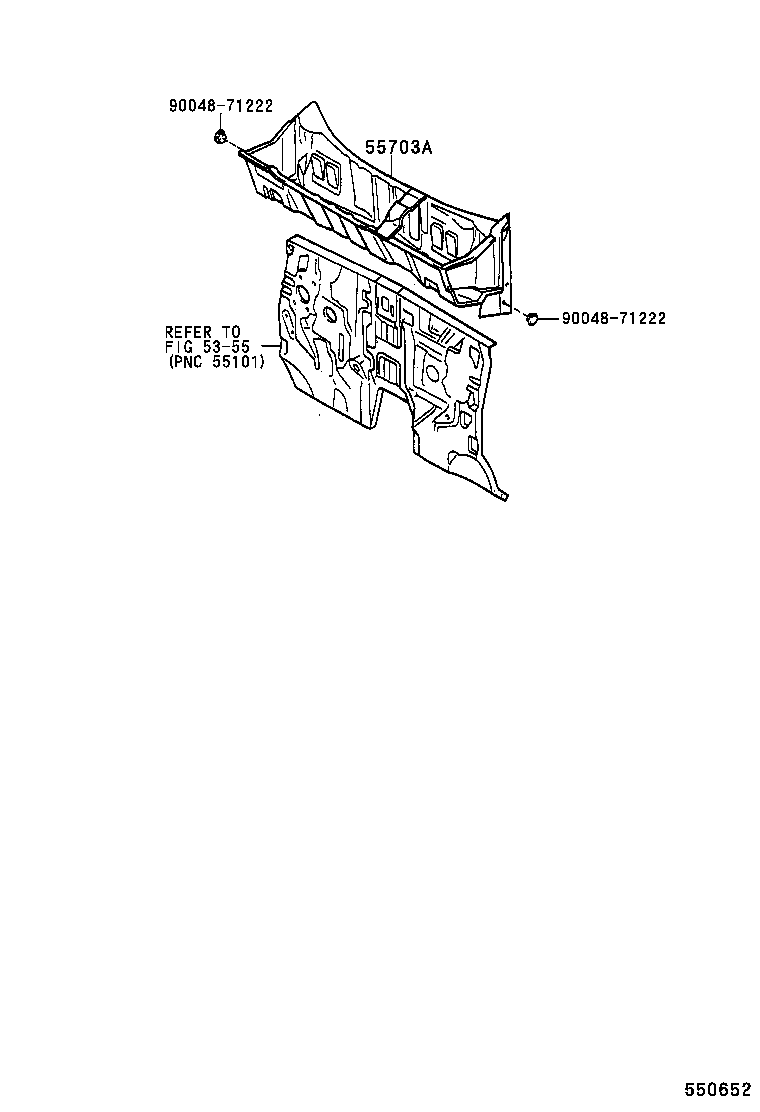

ILLUST NO. 2 OF 2(9905- )

Click highlighted areas on diagram

diagram 5355 55703A 9004871222 9004871222
Part # Description Qty Price
55703A - PANEL SUB-ASSY, COWL TOP, INNER
55703-87401

J10#,122

 1
Common parts
90048-71222
Linked diagrams
5355
