J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

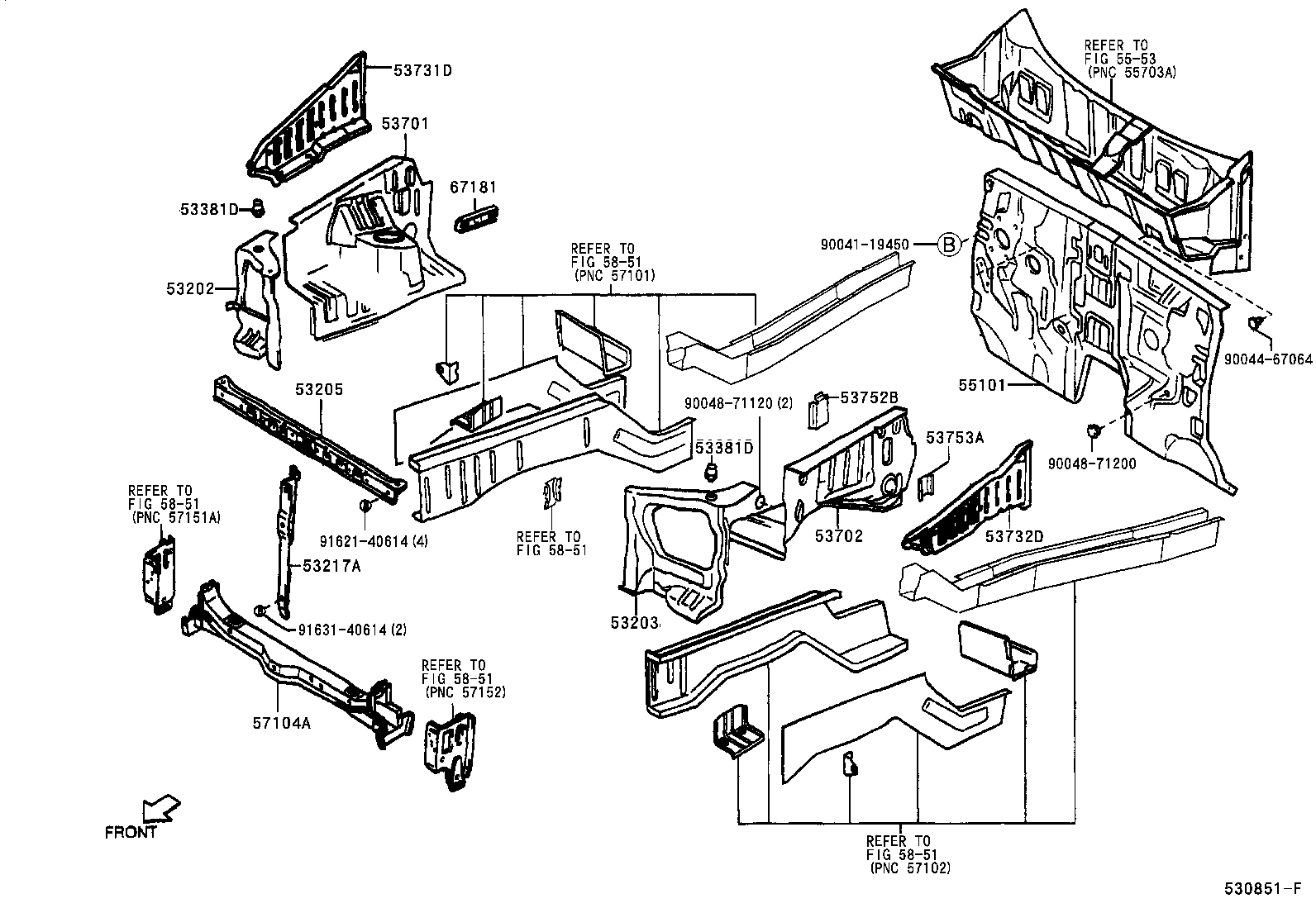

ILLUST NO. 1 OF 2(9905-0005)

Click highlighted areas on diagram

diagram 53202 53203 53205 53217A 53381D 53381D 53701 53702 53731D 53732D 53752B 53753A 55101 5553 57104A 5851 5851 5851 5851 5851 67181 9004119450 9004467064 9004871120 9004871200 9162140614 9163140614
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-87401

J100

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-87401

J100

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-87403

J10#,122

 1
53217A - BRACE, HOOD LOCK SUPPORT
53215-87401

J10#,122

 1
53381D - BUMPER, HOOD TO FRONT SHROUD
53381-87701

J10#,122

 2
53381D - BUMPER, HOOD TO FRONT SHROUD
53381-87701

J10#,122

 2
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-87408

J10#,122

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-87405

J100

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-87401

J10#,122

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-87401

J10#,122

 1
53752B - BRACKET, WASHER TANK MOUNTING
53752-87209

J10#,122

 1
53753A - RETAINR, WASHER TANK
53753-87401

J10#,122

 1
55101 - PANEL SUB-ASSY, DASH
55101-87418

J100..4AT

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-87402

J10#,122

 1
67181 - RETAINER, DOOR HINGE
67181-87201

J10#,122

 1
Common parts
90041-19450
90044-67064
90048-71120
90048-71200
91621-40614
91631-40614
Linked diagrams
5553
5851

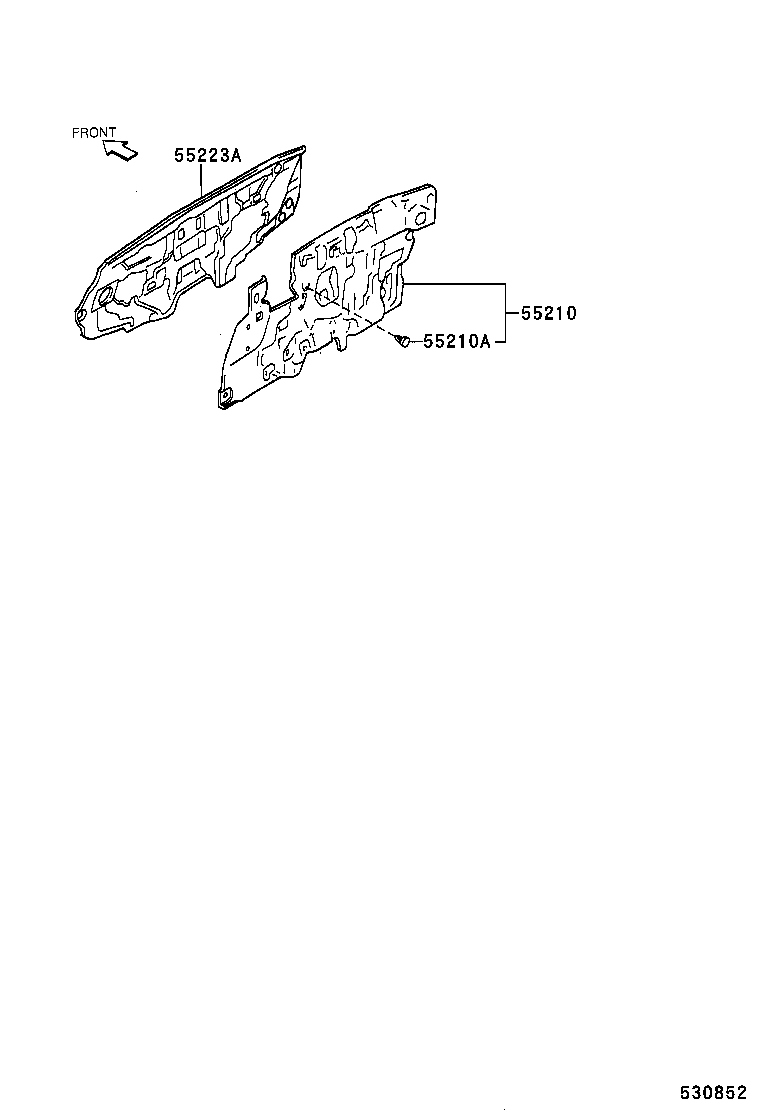

ILLUST NO. 2 OF 2(9905- )

Click highlighted areas on diagram

diagram 55210 55210A 55223A
Part # Description Qty Price
55210 - INSULATOR ASSY, DASH PANEL
55210-87406

J100

 1
55210A - CLIP
90044-67363

J10#,122

 8
55223A - INSULATOR, DASH PANEL, OUTER
55223-87401

J100

 1
