J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )

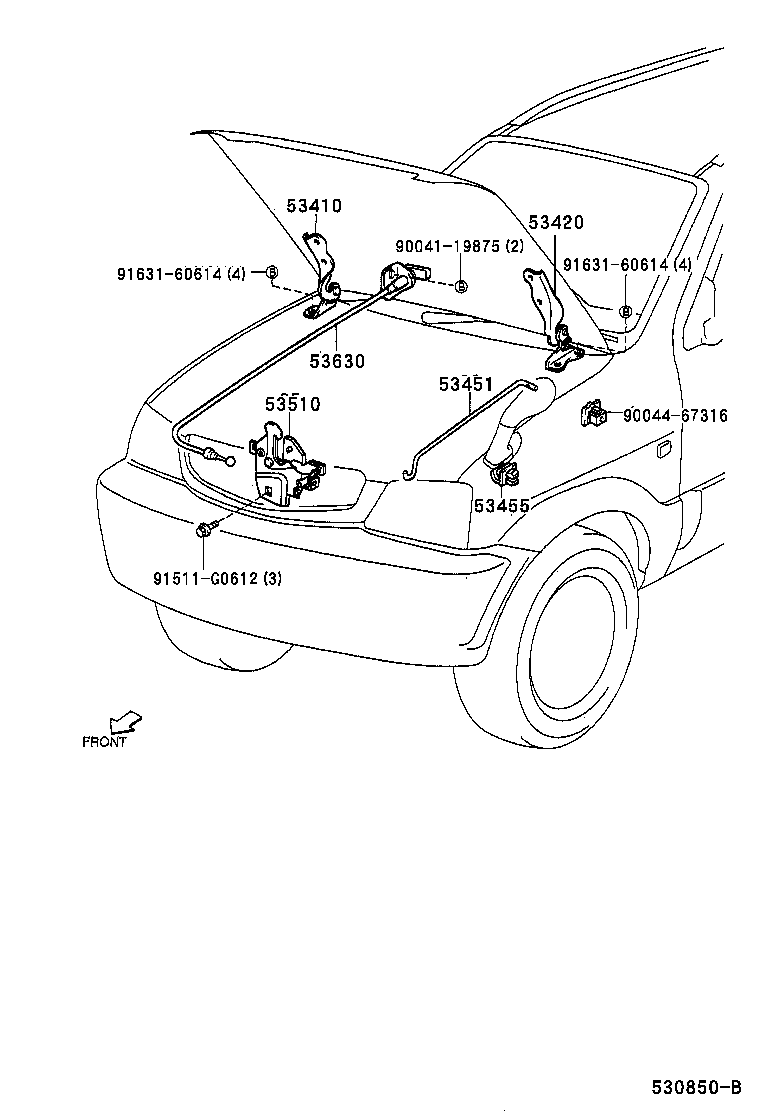

Click highlighted areas on diagram

diagram 53410 53420 53451 53455 53510 53630 9004119875 9004467316 91511G0612 9163160614 9163160614
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53401-87701

J10#,122

 1
53420 - HINGE ASSY, HOOD, LH
53402-87701

J10#,122

 1
53451 - ROD, HOOD SUPPORT
53451-87204

J10#,122

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-87703

J10#,122

 1
53510 - LOCK ASSY, HOOD
53510-87212

J10#,122

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-87401

J10#,122

 1
Common parts
90041-19875
90044-67316
91511-G0612
91631-60614
