J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0005)

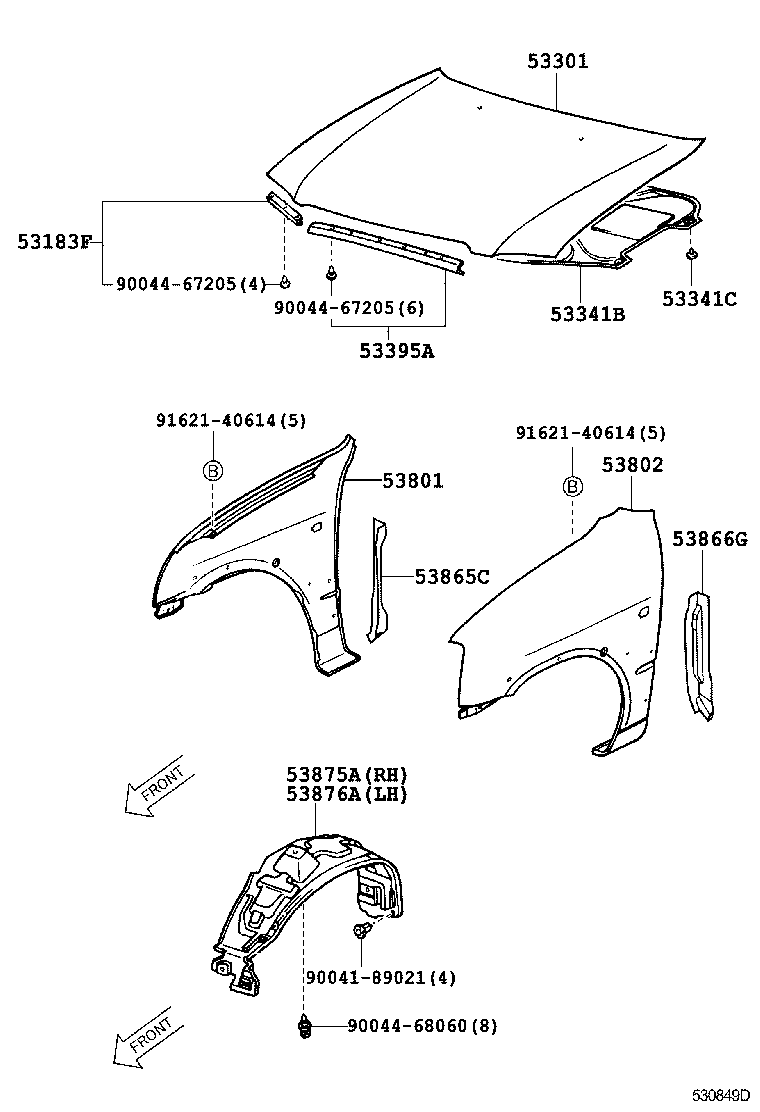

Click highlighted areas on diagram

diagram 53183F 53301 53341B 53341C 53395A 53801 53802 53865C 53866G 53875A 53876A 9004189021 9004467205 9004467205 9004468060 9162140614 9162140614
Part # Description Qty Price
53183F - SEAL, HEADLAMP COVER TO HOOD
53183-87401

J100

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53301 - HOOD SUB-ASSY
53301-87402

J100

 1
53301-87405

J10#,122..EFI

 1
53341B - INSULATOR, HOOD
53341-87401

J100

 1
53341C - CLIP(FOR HOOD INSULATOR)
90044-68280

J10#,122

 12
53395A - SEAL, HOOD TO FRONT END PANEL, NO.1
53395-87401

J10#,122

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-87401

J10#,122

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-87401

J10#,122

 1
53865C - PLATE, FRONT FENDER EXTENSION, RH
53865-87401

J10#,122

 1
53866G - PLATE, FRONT FENDER EXTENSION, LH
53866-87401

J10#,122

 1
53875A - LINER, FRONT FENDER, RH
53875-87401

J10#,122

 1
53876A - LINER, FRONT FENDER, LH
53876-87401

J10#,122

 1
Common parts
90041-89021
90044-67205
90044-68060
91621-40614
