J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0005)

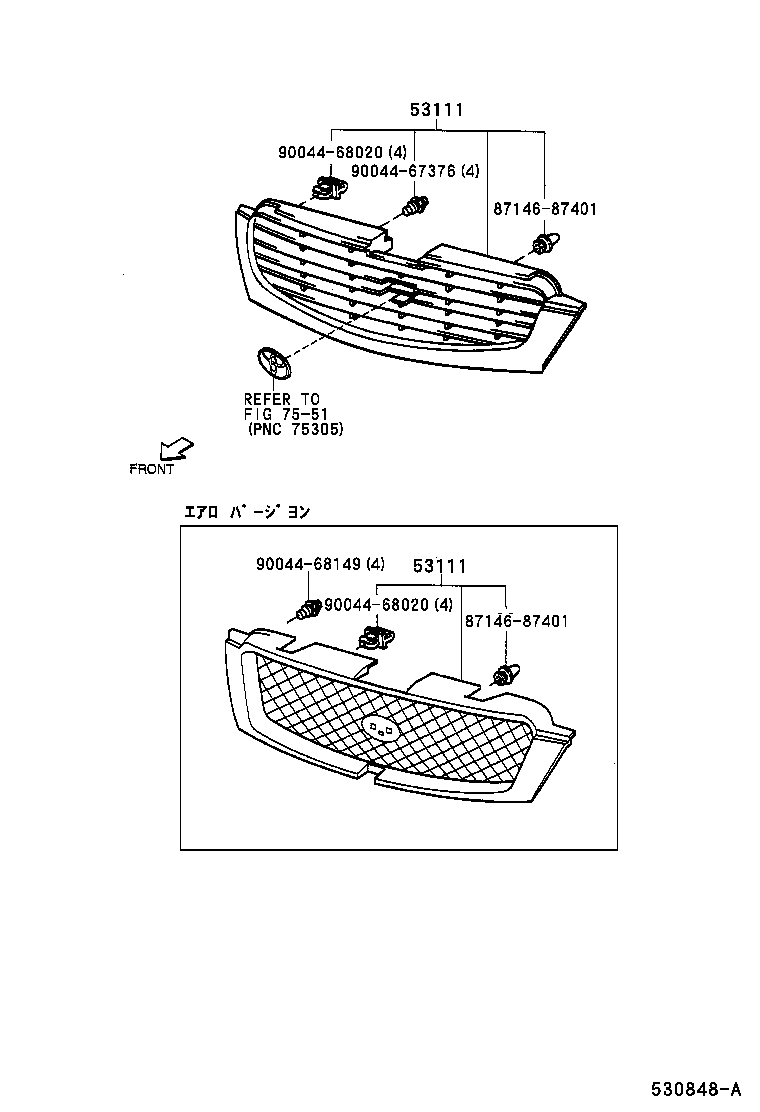

Click highlighted areas on diagram

diagram 53111 53111 7551 8714687401 8714687401 9004467376 9004468020 9004468020 9004468149
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-8741201

J100

BLACK M.,6A5

 1
53111-8741234

J100

MARINE BLUE M.M,B44

 1
53111-8741222

J100

PURE RED,R19

 1
53111-8741203

J100

SILVER M.,S07

 1
53111-8741208

J100

WHITE,W19

 1
53111 - GRILLE, RADIATOR
53111-8741201

J100

BLACK M.,6A5

 1
53111-8741234

J100

MARINE BLUE M.M,B44

 1
53111-8741222

J100

PURE RED,R19

 1
53111-8741203

J100

SILVER M.,S07

 1
53111-8741208

J100

WHITE,W19

 1
Common parts
87146-87401
90044-67376
90044-68020
90044-68149
Linked diagrams
7551
