J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )

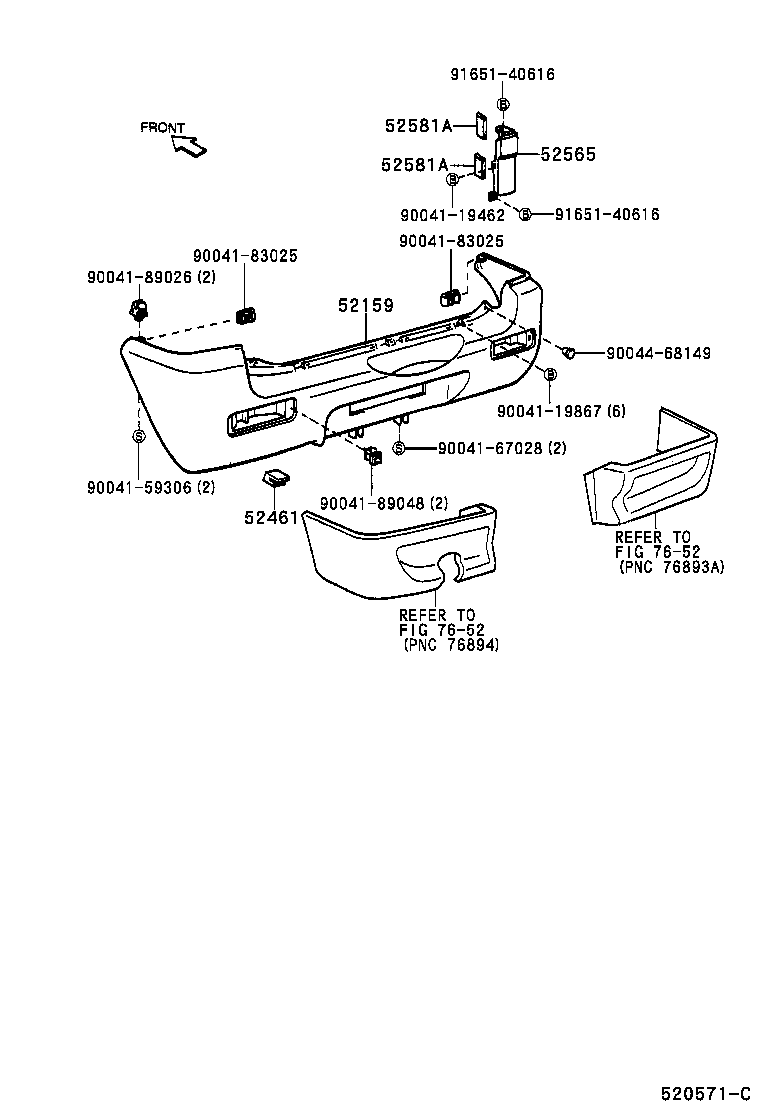

Click highlighted areas on diagram

diagram 52159 52461 52565 52581A 52581A 7652 7652 9004119462 9004119867 9004159306 9004167028 9004183025 9004183025 9004189026 9004189048 9004468149 9165140616 9165140616
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-8740202

J100

PURE RED,R19

 1
52159-8740204

J100

MARINE BLUE M.M.,B44

 1
52159-8740201

J10#,122..EFI

BLACK M.,6A5

 1
52159-8740208

J100

WHITE,W19

 1
52159-8740203

J10#,122..EFI

SILVER M.,S07

 1
52461 - PAD, REAR BUMPER, CENTER
52461-87401

J10#,122

 1
52565 - FILLER, REAR BUMPER EXTENSION, RH
52565-87401

J10#,122

 1
52581A - PROTECTOR, REAR BUMPER FILLER
52581-87401

J10#,122

 2
52581A - PROTECTOR, REAR BUMPER FILLER
52581-87401

J10#,122

 2
Common parts
90041-19462
90041-19867
90041-59306
90041-67028
90041-83025
90041-89026
90041-89048
90044-68149
91651-40616
Linked diagrams
7652
