J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905-0005)

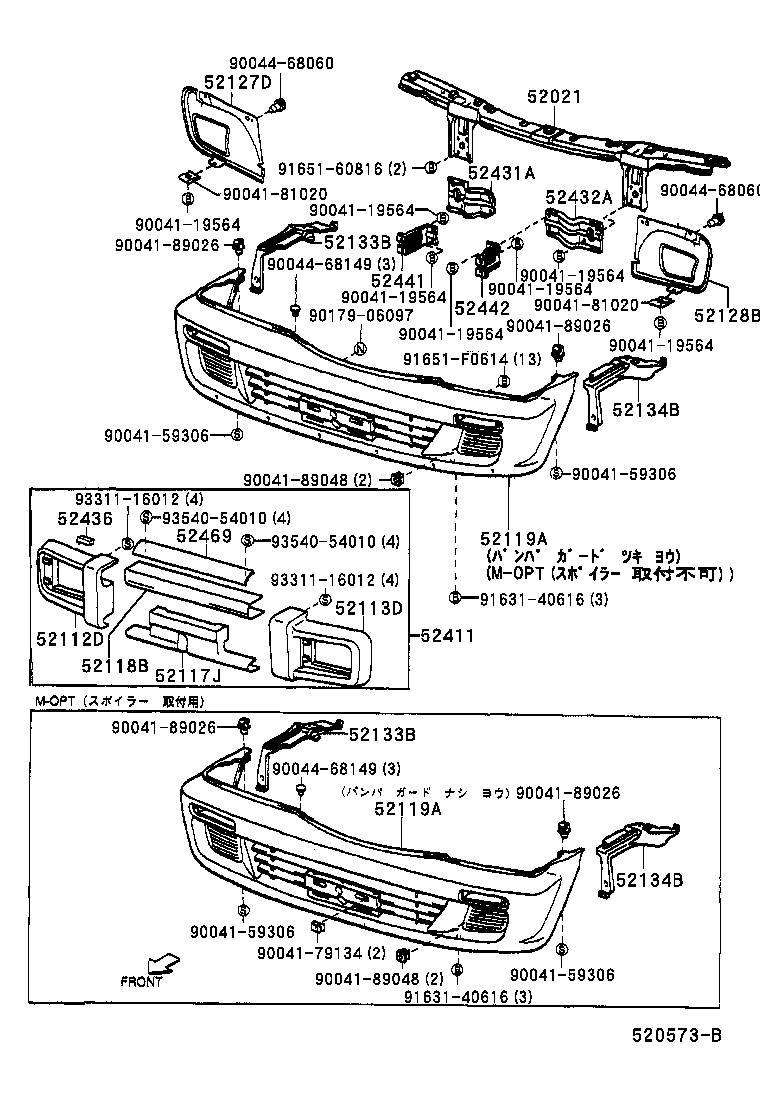

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-87401 |
J100 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-8740202 |
J100 PURE RED,R19 |
1 | ||
| 52119-8740201 |
J100 BLACK M.,6A5 |
1 | ||
| 52119-8740204 |
J100 MARINE BLUE M.M.,B44 |
1 | ||
| 52119-8740208 |
J100 WHITE,W19 |
1 | ||
| 52119-8740203 |
J100 SILVER M,S07 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-8740202 |
J100 PURE RED,R19 |
1 | ||
| 52119-8740201 |
J100 BLACK M.,6A5 |
1 | ||
| 52119-8740204 |
J100 MARINE BLUE M.M.,B44 |
1 | ||
| 52119-8740208 |
J100 WHITE,W19 |
1 | ||
| 52119-8740203 |
J100 SILVER M,S07 |
1 | ||
| 52133B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, RH | ||||
| 52143-87401 |
J10#,122 |
1 | ||
| 52133B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, RH | ||||
| 52143-87401 |
J10#,122 |
1 | ||
| 52134B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, LH | ||||
| 52144-87401 |
J10#,122 |
1 | ||
| 52134B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, LH | ||||
| 52144-87401 |
J10#,122 |
1 | ||
| Common parts | ||||
| 90041-19564 | ||||
| 90041-59306 | ||||
| 90041-79134 | ||||
| 90041-81020 | ||||
| 90041-89026 | ||||
| 90041-89048 | ||||
| 90044-68060 | ||||
| 90044-68149 | ||||
| 90179-06097 | ||||
| 91631-40616 | ||||
| 91651-60816 | ||||
| 91651-F0614 | ||||
| 93311-16012 | ||||
| 93540-54010 | ||||
