J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

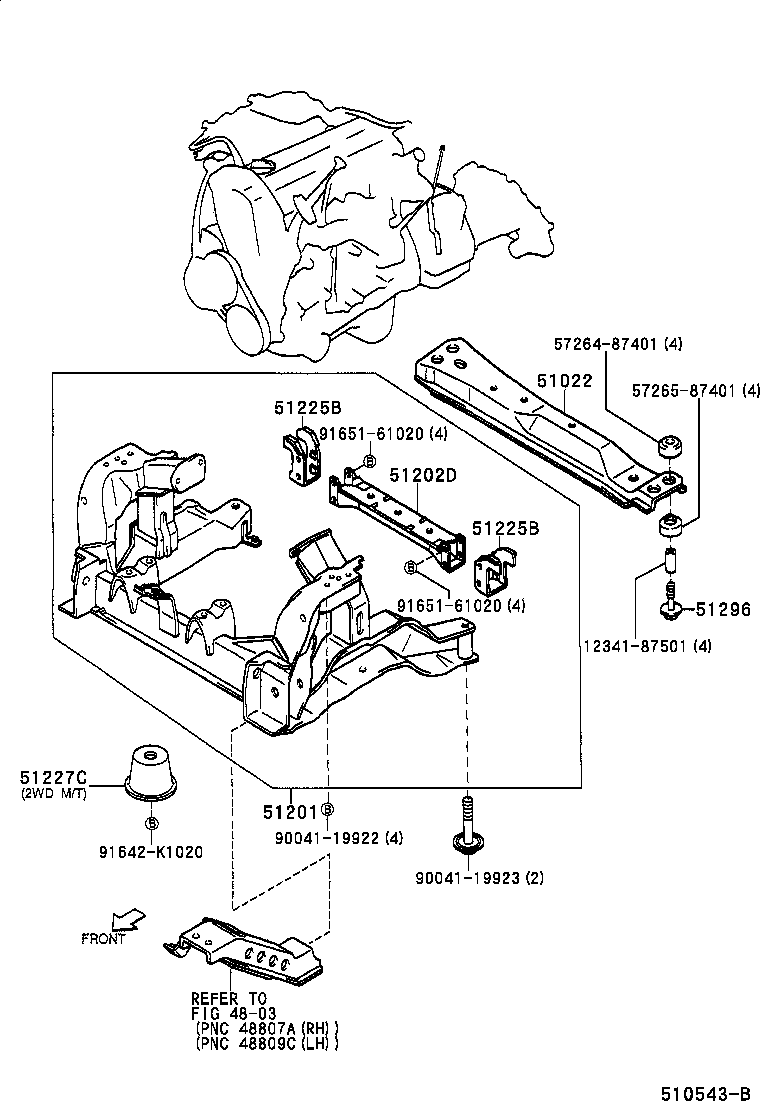

ILLUST NO. 1 OF 2(9905- )

Click highlighted areas on diagram

diagram 1234187501 4803 51022 51201 51202D 51225B 51225B 51227C 51296 5726487401 5726587401 9004119922 9004119923 91642K1020 9165161020 9165161020
Part # Description Qty Price
51022 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
51022-87401

J10#,122

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51210-87401

J100

 1
51202D - CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER
51202-87401

J10#,122

 1
51225B - BRACKET, FRONT SUSPENSION MEMBER, RH
51225-87401

J10#,122

 2
51225B - BRACKET, FRONT SUSPENSION MEMBER, RH
51225-87401

J10#,122

 2
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51296-87401

J10#,122

 4
Common parts
12341-87501
57264-87401
57265-87401
90041-19922
90041-19923
91642-K1020
91651-61020
Linked diagrams
4803

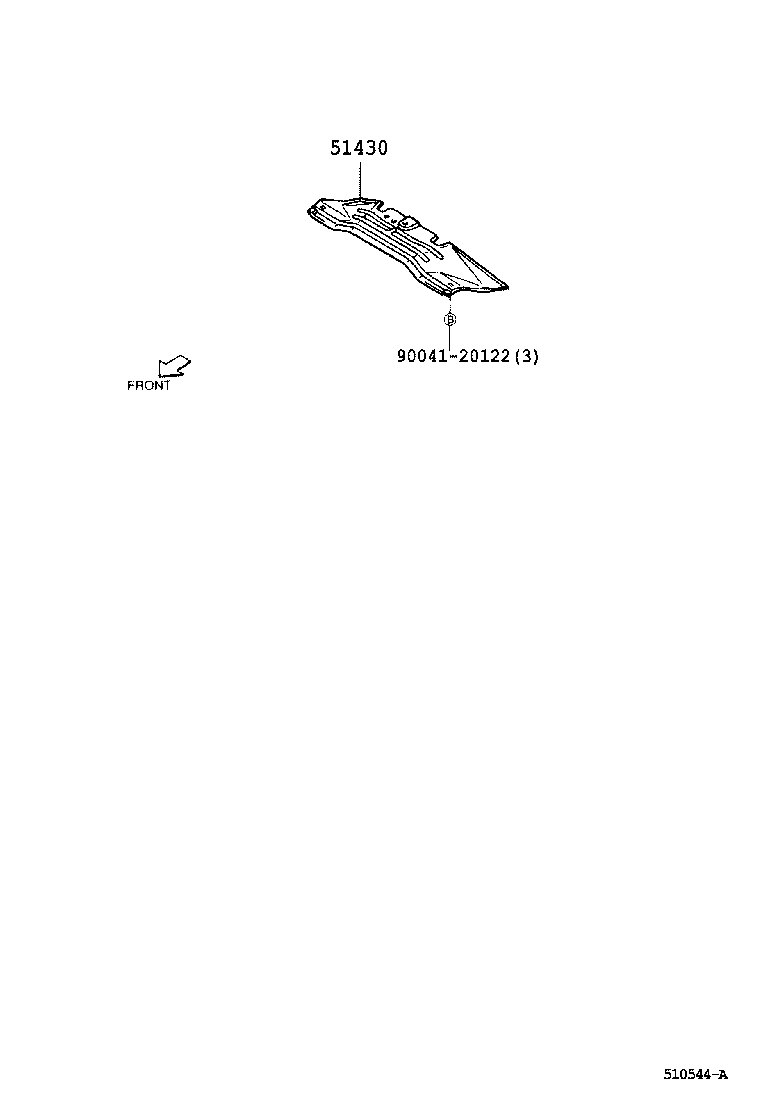

ILLUST NO. 2 OF 2(9905- )

Click highlighted areas on diagram

diagram 51430 9004120122
Part # Description Qty Price
51430 - COVER ASSY, ENGINE UNDER, CENTER
51451-87401

J10#,122

 1
Common parts
90041-20122
