J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

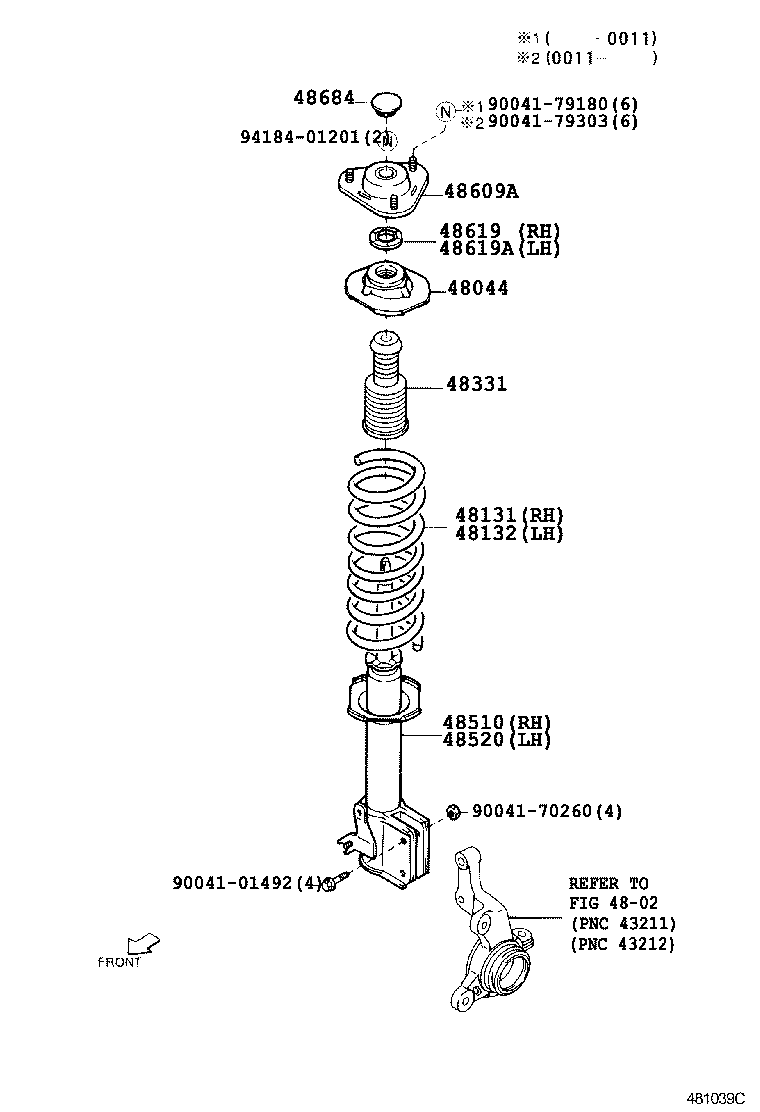

ILLUST NO. 1 OF 2(9905-0112)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48470-87401 |
J10#,122 |
2 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-87401 |
J100 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-87401 |
J100 |
1 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-87402 |
J100 |
2 | ||
| 48331-87403 |
J10#,122 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-87408 |
J100 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-87408 |
J100 |
1 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-87707 |
J100 |
2 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 90043-85174 |
J10#,122 |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 90043-85174 |
J10#,122 |
1 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-87701 |
J10#,122 |
2 | ||
| Common parts | ||||
| 90041-01492 | ||||
| 90041-70260 | ||||
| 90041-79180 | ||||
| 90041-79303 | ||||
| 94184-01201 | ||||
| Linked diagrams | ||||
| 4802 | ||||

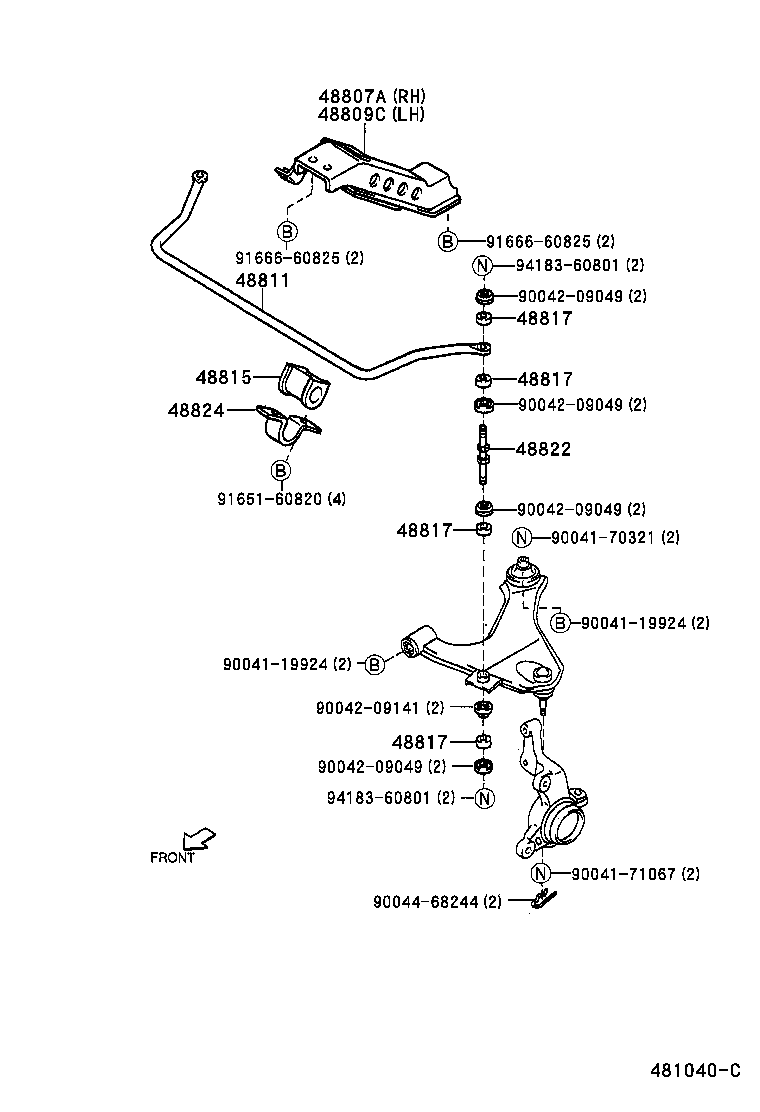

ILLUST NO. 2 OF 2(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48807A - BRACKET, FRONT STABILIZER, RH | ||||
| 48809-87401 |
J10#,122 |
1 | ||
| 48809C - BRACKET, FRONT STABILIZER, LH | ||||
| 48807-87401 |
J10#,122 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-87401 |
J100;J102..P |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-87401 |
J10#..EFI |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90043-85022 |
J10#,122 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90043-85022 |
J10#,122 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90043-85022 |
J10#,122 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90043-85022 |
J10#,122 |
8 | ||
| 48822 - ROD, STABILIZER LINK | ||||
| 48822-87401 |
J10#,122 |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-87401 |
J100 |
2 | ||
| Common parts | ||||
| 90041-19924 | ||||
| 90041-70321 | ||||
| 90041-71067 | ||||
| 90042-09049 | ||||
| 90042-09141 | ||||
| 90044-68244 | ||||
| 91651-60820 | ||||
| 91666-60825 | ||||
| 94183-60801 | ||||
