J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

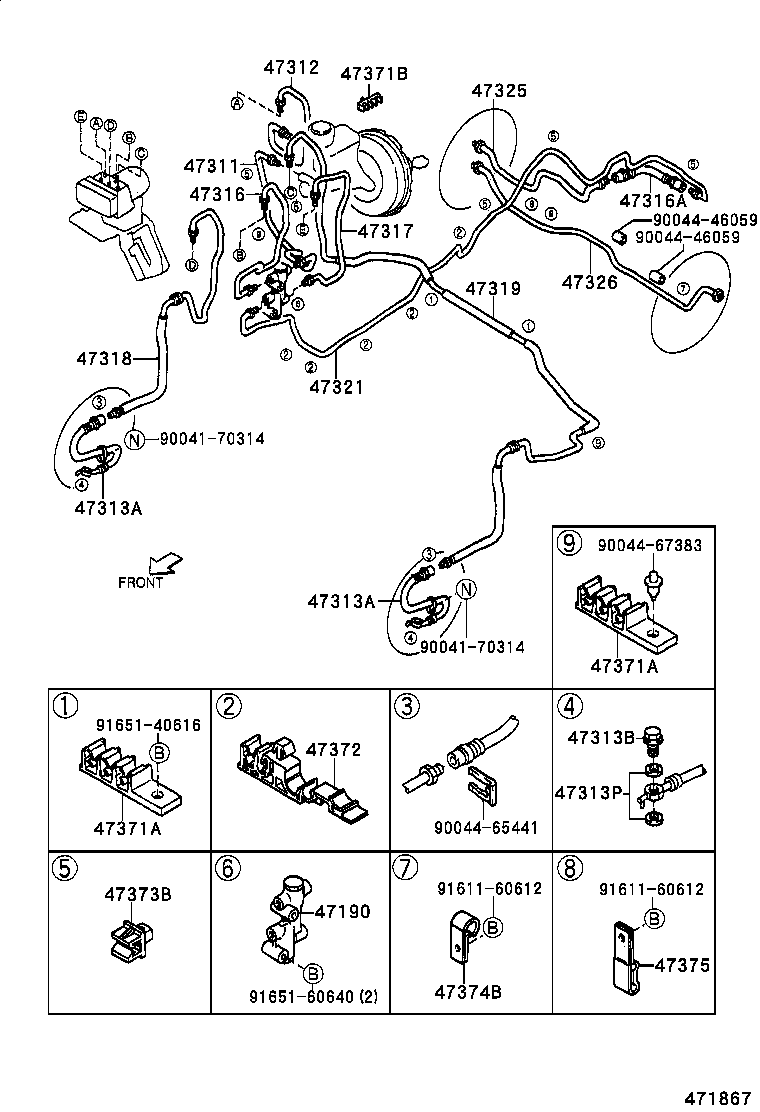

ILLUST NO. 1 OF 2(9905-0005)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-87401 |
J100 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-87401 |
J100 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-87402 |
J100 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90049-22168 |
J10#,122 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90049-22168 |
J10#,122 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90044-01079 |
J10#,122 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-97201 |
J10#,122 |
2 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-87401 |
J100 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90049-22156 |
J100 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-87401 |
J100 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-87401 |
J100 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-87401 |
J100 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-87401 |
J100 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-87402 |
J100 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-87402 |
J100 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90044-64598 |
J10#,122 |
4 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90044-64598 |
J10#,122 |
4 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-64590 |
J10#,122 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90044-64606 |
J100 |
5 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90044-64299 |
J100 |
5 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 96221-30705 |
J10#,122 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90044-61468 |
J100 |
2 | ||
| Common parts | ||||
| 90041-70314 | ||||
| 90044-46059 | ||||
| 90044-65441 | ||||
| 90044-67383 | ||||
| 91611-60612 | ||||
| 91651-40616 | ||||
| 91651-60640 | ||||

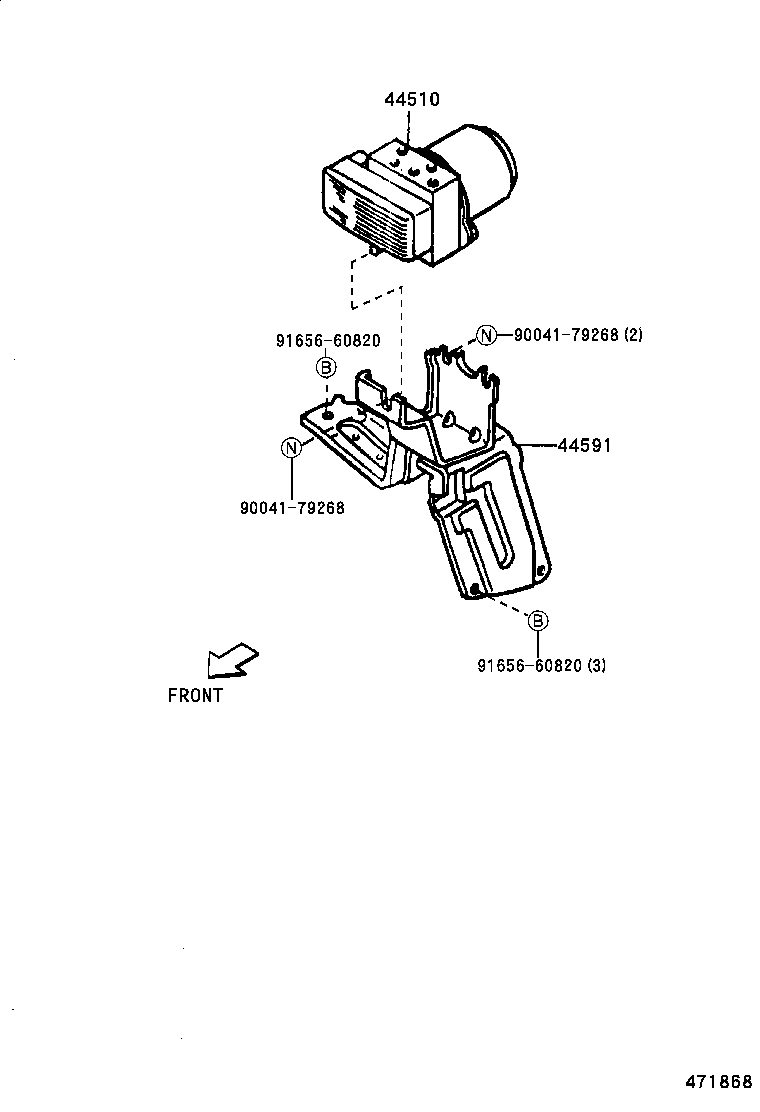

ILLUST NO. 2 OF 2(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-87402 |
J100 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-87401 |
J100 |
1 | ||
| Common parts | ||||
| 90041-79268 | ||||
| 91656-60820 | ||||
